Model

  • (1)

    1C : Change over switch

  • (1)

    1L : Low level alarm

  • (1)

    1H : High level alarm

  • (1)

    2A :  Charging-pump control with two switching elements.

            Optionally, two low level alarms.

  • (1)

    2L : Discharging pump control with one switching element.

  • (1)

    2H : Discharging-pump control with one switching element.

  • (1)

    2Y : Discharging-pump control with two switching elements.

           Optionally, two high level alarms.

  • (1)

    2HL : High and low level alarms

  • (1)

    3H :  Discharging-pump control + high level alarm.

            Pump control with one switching element.

  • (1)

    3L : Charging-pump control + low level alarm.

           Pump control with one switching element.

  • (1)

    3Y : Discharging-pump control + high level alarm.

           Pump control with two switching elements.

  • (1)

    3A : Charging-pump control + low level alarm.

           Pump control with two switching elements.

  • (1)

    3HE : Discharging-pump control + isolated high level alarm.

              Pump control with one switching element.

  • (1)

    3LE : Charging-pump control + isolated low level alarm.

             Pump control with one switching element.

  • (1)

    3YE : Discharging-pump control + isolated high level alarm.

             Pump control with two switching elements.

  • (1)

    3AE : Charging-pump control + isolated low level alarm.

             Pump control with two switching elements.

  • (1)

    4H : Discharging-pump control with one switching element.

            High and low level alarms.

  • (1)

    4L : Charging-pump control with one switching element.

           High and low level alarms.

  • (1)

    4Y : Discharging-pump control with two switching elements.

           High and low level alarms.



  • (1)

    4A : Charging-pump control with two switching elements.

           High and low level alarms.

  • (1)

    C1C : Change-over switch

  • (1)

    C1H : High level alarm

  • (1)

    C1L : Low level alarm

  • (1)

    C2H : Discharging-pump control with one switching element.

  • (1)

    C2Y : Discharging-pump control with two elements.

             Optionally, two high and low level alarms.

  • (1)

    C2L : Charging-pump with one switching element.

  • (1)

    C2A : Charging-pump control with two switching elements.

             Optionally, two high level alarms.

  • (1)

    C2HL : High and low level alarms.

  • (1)

    C3H : Discharging-pump control + high level alarm.

  • (1)

    C3L : Charging-pump control + low level alarm.

  • (1)

    C3HE : Discharging-pump control + isolated high level alarm.

  • (1)

    C3LE : Charging-pump control + isolated low level alarm.

  • (1)

    M1C : Change-over switch

  • (1)

    M1H : High level alarm

  • (1)

    M1L : Low level alarm

  • (1)

    M2H : Discharging pump control

  • (1)

    M2L : Charging pump control

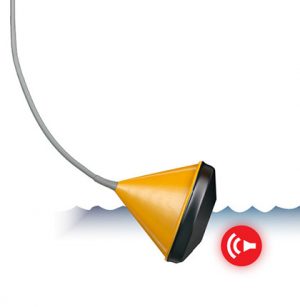

1L

Quick View

Catalog
View Full Details

Brand : Kari

Media : Liquids

Application :  Low level alarm

Switching element : microswitch

Voltage : 6..250V AC

Max. current : 6A res, 3A ind.

Max.DC power : 75 VA

Range of adjust. : 200..1200 mm



Cable length : 5m (other length supplied to order)

Dimeter of sensor : 170 mm

Float casing length : 155 mm

Float material : PP

Max. operating temperature : 55°C (70°C supplied to order)

Pressure rating : 200 kPa

Water-tightness : IP67



1C

Quick View

Catalog
View Full Details

Brand : Kari

Media : Liquids

Application : Use as a change-over switch

Switching element : microswitch

Voltage : 6..250V AC

Max. current : 6A res, 3A ind.

Mav.DC power : 75 VA

Range of adjust. : 200..1200 mm



Cable length : 5m (other length supplied to order)

Dimeter of sensor : 170 mm

Float casing length : 155 mm

Float material : PP

Max. operating temperature : 55°C (70°C supplied to order)

Pressure rating : 200 kPa

Water-tightness : IP67



2L

Quick View

Catalog
View Full Details

Brand : Kari

Media : Liquids

Application : Charging-pump control with 1 switching element

Switching element : microswitch

Voltage : 6..250V AC

Max. current : 6A res, 3A ind.

Max.DC power : 75 VA

Range of adjust. : 200..1200 mm



Cable length : 5m (other length supplied to order)

Dimeter of sensor : 170 mm

Float casing length : 155 mm

Float material : PP

Max. operating temperature : 55°C (70°C supplied to order)

Pressure rating : 200 kPa

Water-tightness : IP67



1H

Quick View

Catalog
View Full Details

Brand : Kari

Media : Liquids

Application : High level alarm

Switching element : microswitch

Voltage : 6..250V AC

Max. current : 6A res, 3A ind.

Max.DC power : 75 VA

Range of adjust. : 200..1200 mm



Cable length : 5m (other length supplied to order)

Dimeter of sensor : 170 mm

Float casing length : 155 mm

Float material : PP

Max. operating temperature : 55°C (70°C supplied to order)

Pressure rating : 200 kPa

Water-tightness : IP67

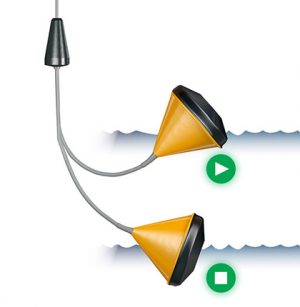

2A

Quick View

Catalog
View Full Details

Brand : Kari

Media : Liquids

Application : Charging pump control with 2 elements. Optionally, 2 low level alarms.

Switching element : microswitch

Voltage : 6..250V AC

Max. current : 6A res, 3A ind.

Max.DC power : 75 VA

Range of adjust. : 200..1200 mm



Cable length : 5m (other length supplied to order)

Dimeter of sensor : 170mm

Float casing length : 155 mm

Float material : PP

Max. operating temperature : 55°C (70°C supplied to order)

Pressure rating : 200 kPa

Water-tightness : IP67



2Y

Quick View

Catalog
View Full Details

Brand : Kari

Media : Liquids

Application : Discharing-pump control with 2 elements.Optionally, 2 high level alarms.

Switching element : microswitch

Voltage : 6..250V AC

Max. current : 6A res, 3A ind.

Max.DC power : 75 VA

Range of adjust. : 200..1200 mm



Cable length : 5m (other length supplied to order)

Dimeter of sensor : 170 mm

Float casing length : 155 mm

Float material : PP

Max. operating temperature : 55°C (70°C supplied to order)

Pressure rating : 200 kPa

Water-tightness : IP67



2H

Quick View

Catalog
View Full Details

Brand : Kari

Media : Liquids

Application : Discharging-pump control or prevention of pump operation when no liquid is present

Switching element : microswitch

Voltage : 6..250V AC

Max. current : 6A res, 3A ind.

Max.DC power : 75 VA

Range of adjust. : 200..1200 mm



Cable length : 5m (other length supplied to order)

Dimeter of sensor : 170 mm

Float casing length : 155 mm

Float material : PP

Max. operating temperature : 55°C (70°C supplied to order)

Pressure rating : 200 kPa

Water-tightness : IP67





2HL

Quick View

Catalog
View Full Details

Brand : Kari

Media : Liquids

Application : High & low level alarm, suitable for such uses as alarm functions for expansion tank

Switching element : microswitch

Voltage : 6..250V AC

Max. current : 6A res, 3A ind.

Max.DC power : 75 VA

Range of adjust. : 200..1200 mm



Cable length : 5m (other length supplied to order)

Dimeter of sensor : 170 mm

Float casing length : 155 mm

Float material : PP

Max. operating temperature : 55°C (70°C supplied to order)

Pressure rating : 200 kPa

Water-tightness : IP67

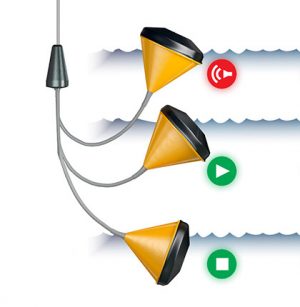

3H

Quick View

Catalog
View Full Details

Brand : Kari

Media : Liquids

Application : Discharging-pump control+high level alarm.Pump control with 1 switching element.

Switching element : microswitch

Voltage : 6..250V AC

Max. current : 6A res, 3A ind.

Max.DC power : 75 VA

Range of adjust. : 200..1200 mm



Cable length : 5m (other length supplied to order)

Dimeter of sensor : 170 mm

Float casing length : 155 mm

Float material : PP

Max. operating temperature : 55°C (70°C supplied to order)

Pressure rating : 200 kPa

Water-tightness : IP67





3L

Quick View

Catalog
View Full Details

Brand : Kari

Media : Liquids

Application : Charging-pump control+low level alarm. Pump control with 1 switching element.

Switching element : microswitch

Voltage : 6..250V AC

Max. current : 6A res, 3A ind.

Max.DC power : 75 VA

Range of adjust. : 200..1200 mm



Cable length : 5m (other length supplied to order)

Dimeter of sensor : 170 mm

Float casing length : 155 mm

Float material : PP

Max. operating temperature : 55°C (70°C supplied to order)

Pressure rating : 200 kPa

Water-tightness : IP67
