GP4100 Series (Compact)


Compact, but Pro-face DNA is inherited.

A compact HMI, GP4100 Series Color Model that has achieved high specifications, utilization of various software and high connectivity has joined the product lineup. Its display area is twice as large and its resolution is eight times as powerful as the monochrome model. Ready for the age of IoT, this compact HMI can collect data using a network and remotely monitor devices with a tablet.







GP-4601T

 GP-4301TM

5.7 inch Modular Type

Learn More about GP4000 Series

Product Guide | GP4000 Series Catalogue



Product Overview
·         Display (Resolution) : 65,536-color TFT (320 x 240 pixels)
·         Brightness Control : 16-level Brightness
·        Touch Panel Type : Analog
·        Memory : FLASH EPROM 8MB (Application Memory),
       128KB (Data Backup Memory)
·         Ethernet : x1 (IEEE802.3i / IEEE802.3u,10BASE-T/100BASE-TX)
·         SIO : COM x 1 (RS232/RS422/RS485)
·         SD Card Slot : No
·         USB : USB Type-A (2.0) x 1, USB mini-B (2.0) x 1
·         Replaceable Battery : No




GP-4601T

 Watch Video!





The GP4x01M Series HMI offer 3.5" and 5.7" LED backlit LCD Displays.

Display and Communication modules can be separated for quick mounting

into a standard 22mm hole without the need to create a larger panel cutout.

It offers a full graphics touch screen interface with a selection of serial or

Ethernet connectivity. These models are programmed with the versatile

GP-Pro EX development software.



General Specifications:

TFT Color Display for operator visibility

>>Innovative 22m mounting saves cost >>Modular Screen Replacement reduces downtime >>World Class Connectivity leverages your automation investment



























GP-4000 Series Features

An ambient operating temperature of 0 to 55℃ [32 to 131 °F] even in adverse environments

Some models can be used under ambient temperatures up to 55℃ [131 °F], offering higher resistance to adverse environments. (GP-4601T, GP-4603T, GP-4501T, GP-4503T, GP-4401T, GP-4301T, GP-4303T)

 Protects Your Screen from Oil Mists and Chemicals

An easy-maintenance environment-resistant cover that extends product lifetime by protecting the screen from cutting oils and chemicals.*1



Two-point pressing operation with the matrix resistive touch panel

The GP4000 Series lineup includes models with an on-board matrix-type touch panel. Unintended operation can be prevented by setting two-point pressing for buttons used in critical operations and operating environments. (Supported Models: GP-4601T, GP-4501T)

Conforms to overseas standards for hassle-free export and use with overseas equipment

- IP65f Front Enclosure
- NEMA#250 TYPE 4X/13
- Acquired the marine regulations, DNV, GL, ABS, BV, LR, RINA and NK. (Also CCS will be planned to acquire. *2)
- Planned to acquire UL/cUL Hazardous Locations and ATEX *2

Easy to change the display screen

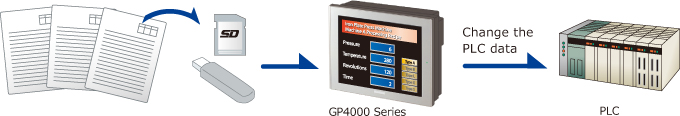

  • The display screen can be changed by using a USB flash memory or SD card, without the need for a software license.
  • The screen maintenance can be done without bringing a PC to a production site.
  • A person in charge does not have to operate a PC, such as when manufacturing the multiple units of the same equipment.

Compatibility for easy replacement

Since the panel cutting dimensions are the same as conventional models, it is easy to replace only the display unit in an existing facility.






GP-4000 Series Features

Easy recipe selection

Line setting changes can be performed smoothly.

Enhanced Recipe function

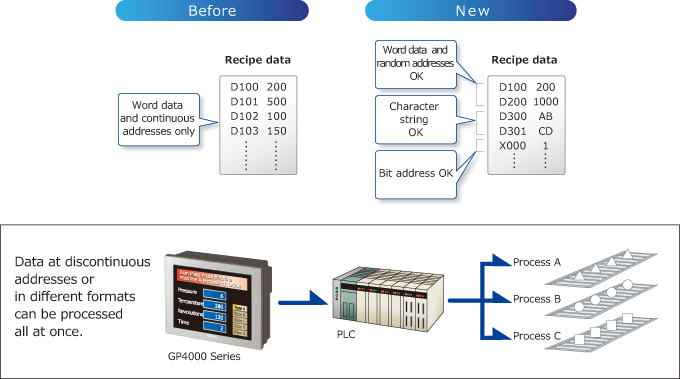

With the conventional recipe function, all recipe data must be stored at continuous addresses. The new recipe function allows writing random addresses and multiple data formats as a recipe.



Since the CSV data stored in the USB memory/SD card can be edited, the recipe data can easily be carried for performing updates on-site.

CSV data transfer function

The alarm message can be easily changed with CSV files only.






GP-4000 Series Features

With various devices

The powerful connection ability is effective for sites where devices of different manufacturers are used.

An extensive driver allows you to connect various devices

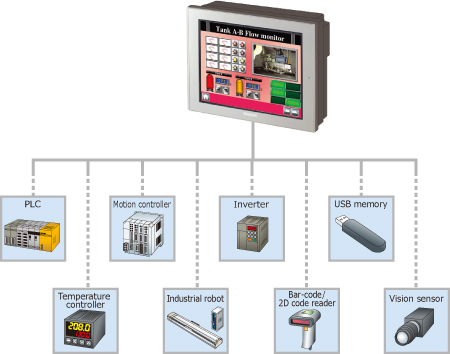

The GP can be connected directly with various devices. It supports a wide range of drivers such as those of PLCs and temperature controllers, allowing program-less system building. Interface units and programs are not needed because of a PLC unit



Direct connection with peripheral devices

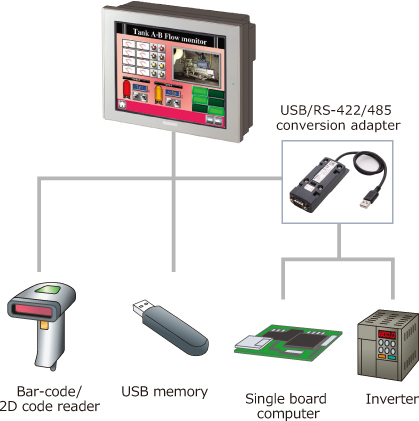

It is possible to connect directly USB devices. And it is possible to connect various individual controllers by changing USB I/F to serial I/F.

Ethernet Multi-Link function

The Ethernet Multi-Link function allows you to easily add a GP as a sub-display to the facility without changing any settings of the control device.






  1. GP-4000 Remote Monitoring
  2. GP4000 Series Features
  3. GP-4201TW
  4. GP-4301TW
