White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
Brightness Control
8 Levels (Adjusted with the touch panel or the software)
Backlight Service Life
50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
Language Fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
Character Sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font Sizes
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times. *1
8 x 16 dots
100 char. x 30 rows
16 x 16 dots
50 char. x 30 rows
32 x 32 dots
25 char. x 15 rows
8 x 8 dots
100 char. x 60 rows
Program Area
FLASH EPROM 132 KB (Equivalent to 15,000 steps) *2
Variable Area
None
Application Memory
FLASH EPROM 16 MB (including a logic program area)
Data Backup
SRAM 128 KB (Replaceable Lithium battery for backup memory)
Clock Accuracy
±65 sec/month (deviation at room temperature and power is OFF) *3
Touch Panel Type
Resistive Film (analog)
Touch Panel Resolution
1,024 x 1,024
Touch Panel Service Life
1,000,000 times or more
Serial (COM1)
RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
Serial (COM2)
RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug)
Ethernet (LAN)
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1
USB (TYPE-A)
Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less
USB (mini-B)
Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less
SD Card
SD Card Slot x 1
1Other font sizes can be set up with the Editor software.
2Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
3Depending on the operating temperature and age of unit, the clock can deviate from -380 to +90 sec/month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.
General Specifications
International Safety Standards
Rated Input Voltage
DC 24V
Input Voltage Limits
DC 19.2 to 28.8V
Allowable Voltage Drop
5 ms or less
Power Consumption
12 W or less
In-Rush Current
30 A or less
Voltage Endurance
AC 1,000 V, 20 mA for 1 min (between charging and FG terminals)
Insulation Resistance
DC 500 V, 10 MΩ or more (between charging and FG terminals)
Surrounding Air Temperature
0 to 50 °C (32 to 122 °F)
Storage Temperature
-20 to 60 °C (-4 to 140 °F)
Ambient Humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.)
Storage Humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.)
Dust
0.1 mg/m³ (10⁻⁷ oz/ft³) or less (non-conductive levels)
Pollution Degree
For use in Pollution Degree 2 environment
Atmosphere
Free of corrosive gases
Air Pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less)
Vibration Resistance
IEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s², X, Y, Z directions for 10 cycles (approx. 100 min)
Concussion Resistance
IEC/EN61131-2 compliant 147 m/s², X, Y, Z directions for 3 times
Functional grounding: Grounding resistance of 100Ω, 2mm² (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)
Structure
IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure) *4
Cooling Method
Natural air circulation
Weight Approx.
1.2 kg [2.6 lb] or less (display unit only)
External Dimensions
W218 x H173 x D60 mm [W8.58 x H6.81 x D2.36 in.]

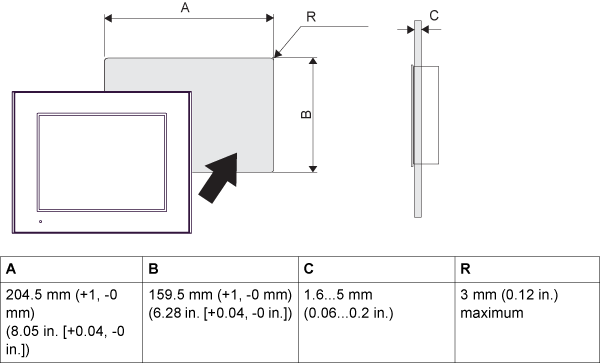

Panel Cut Dimensions
W204.5 x H159.5 mm [W8.05 x H6.28 in.], Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.] *5
4The front face of the GP unit, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification. Even though the GP unit's level of resistance is equivalent to these standards, oils that should have no effect on the GP can possibly harm the unit. This can occur in areas where either vaporized oils are present, or where low viscosity cutting oils are allowed to adhere to the unit for long periods of time. If the GP's front face protection sheet becomes peeled off, these conditions can lead to the ingress of oil into the GP and separate protection measures are suggested. Also, if non-approved oils are present, it may cause deformation or corrosion of the front panel’s plastic cover. Therefore, prior to installing the GP unit, be sure to confirm the type of conditions that will be present in the GP's operating environment. If the installation gasket is used for a long period of time, or if the unit and its gasket are removed from the panel, the original level of the protection cannot be guaranteed. To maintain the original protection level, be sure to replace the installation gasket regularly.
5Regarding dimensional tolerance, everything +1/-0 mm [+0.04/-0 in.] and R in angle are below R3 [R0.12 in.].
External Dimensions
Panel Cut-out

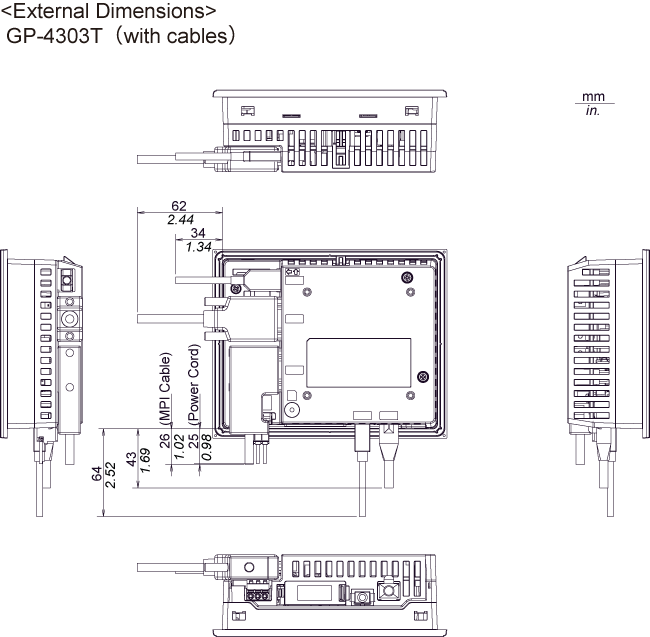

External Dimensions with cables
7.0" GP4000
Analog Touchscreen Operator Interface
with USB and Serial Communication Ports
White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
Brightness Control
16 Levels (Adjusted with the touch panel or the software)
Backlight Service Life
50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
Language Fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
Character Sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font Sizes
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1
SRAM 64 KB (Replaceable Lithium battery for backup memory)
Application Memory
FLASH EPROM 16 MB (including a logic program area)
Data Backup
SRAM 320 KB (Replaceable Lithium battery for backup memory)
Clock Accuracy
±65 sec/month (deviation at room temperature and power is OFF)*3
Touch Panel Type
Resistive Film (analog)
Touch Panel Resolution
1,024 x 1,024
Touch Panel Service Life
1,000,000 times or more
Serial (COM1)
RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
Serial (COM2)
RS-485 (isolation) Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Even or Odd Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5 kbps (MPI) Connector: D-Sub9 (socket)
Ethernet (LAN)
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1
USB (TYPE-A)
Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less
USB (mini-B)
Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less
SD Card
SD Card Slot x 1
1Other font sizes can be set up with the Editor software.
2Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
3Depending on the operating temperature and age of unit, the clock can deviate from -380 to +90 sec/month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.
General Specifications
International Safety Standards
Rated Input Voltage
DC 24V
Input Voltage Limits
DC 19.2 to 28.8V
Allowable Voltage Drop
5 ms or less
Power Consumption
10.5 W or less
In-Rush Current
30 A or less
Voltage Endurance
AC 1,000 V, 20 mA for 1 min (between charging and FG terminals)
Insulation Resistance
DC 500 V, 10 MΩ or more (between charging and FG terminals)
Surrounding Air Temperature
0 to 55 °C (32 to 131 °F)
Storage Temperature
-20 to 60 °C (-4 to 140 °F)
Ambient Humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.)
Storage Humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.)
Dust
0.1 mg/m³ (10⁻⁷ oz/ft³) or less (non-conductive levels)
Pollution Degree
For use in Pollution Degree 2 environment
Atmosphere
Free of corrosive gases
Air Pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less)
Vibration Resistance
IEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s², X, Y, Z directions for 10 cycles (approx. 100 min)
Concussion Resistance
IEC/EN61131-2 compliant 147 m/s², X, Y, Z directions for 3 times
Functional grounding: Grounding resistance of 100Ω, 2mm² (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)
Structure
IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)*4
Cooling Method
Natural air circulation
Weight Approx.
0.8 kg [1.8 lb] or less (display unit only)

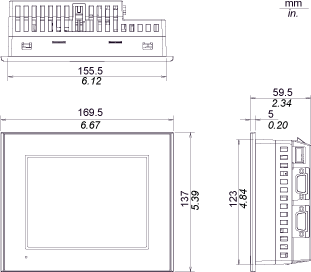

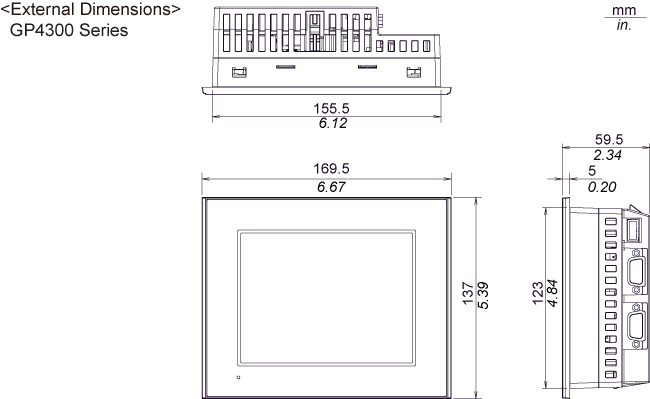

External Dimensions
W169.5 x H137 x D59.5 mm [W6.67 x H5.39 x D2.34 in.]

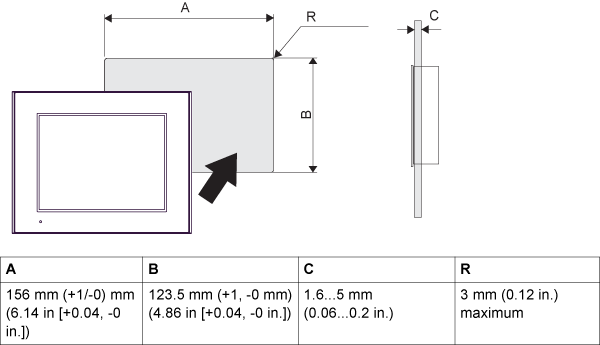

Panel Cut Dimensions
W156 x H123.5 mm [W6.14 x H4.86 in.], Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*5
4The front face of the GP unit, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification. Even though the GP unit's level of resistance is equivalent to these standards, oils that should have no effect on the GP can possibly harm the unit. This can occur in areas where either vaporized oils are present, or where low viscosity cutting oils are allowed to adhere to the unit for long periods of time. If the GP's front face protection sheet becomes peeled off, these conditions can lead to the ingress of oil into the GP and separate protection measures are suggested. Also, if non-approved oils are present, it may cause deformation or corrosion of the front panel's plastic cover. Therefore, prior to installing the GP unit, be sure to confirm the type of conditions that will be present in the GP's operating environment. If the installation gasket is used for a long period of time, or if the unit and its gasket are removed from the panel, the original level of the protection cannot be guaranteed. To maintain the original protection level, be sure to replace the installation gasket regularly.
5Regarding dimensional tolerance, everything +1/-0 mm [+0.04/-0 in.] and R in angle are below R3 [R0.12 in.]. Even if the installation wall thickness is within the recommended range for the "Panel Cut Dimensions", depending on wall's material, size, and installation location of GP unit and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.
White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
Brightness Control
8 Levels (Adjusted with touch panel or software)
Backlight Service Life
50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
Language Fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
Character Sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font Sizes
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times. *1
8 x 16 dots
40 char. x 15 rows
16 x 16 dots
20 char. x 15 rows
32 x 32 dots
10 char. x 7 rows
8 x 8 dots
40 char. x 30 rows
Program Area
FLASH EPROM 132 KB (Equivalent to 15,000 steps) *2
Variable Area
SRAM 64 KB (Rechargeable Lithium battery for backup memory)
Application Memory
FLASH EPROM 16 MB (including a logic program area)
Data Backup
SRAM 320 KB (Rechargeable Lithium battery for backup memory)
Clock Accuracy
±65 sec/month (deviation at room temperature and power is OFF) *3
Touch Panel Type
Resistive Film (analog)
Touch Panel Resolution
1,024 x 1,024
Touch Panel Service Life
1,000,000 times or more
Serial (COM1)
RS-232C/422/485 Asynchronous Transmission, Data Length: 7 or 8 bits, Parity: none, Even or Odd, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5 kbps(MPI), Connector: D-Sub9 (plug)
Serial (COM2)
None
Ethernet (LAN)
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1
USB (TYPE-A)
Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4 ft.] or less
USB (mini-B)
Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft.] or less
SD Card
None
1Other font sizes can be set up with the Editor software.
2Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
3Depending on the operating temperature and age of unit, the clock can deviate from -380 to +90 sec/month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.
General Specifications
International Safety Standards
Rated Input Voltage
DC 24V
Input Voltage Limits
DC 19.2 to 28.8V
Allowable Voltage Drop
5 ms or less
Power Consumption
10.5 W or less
In-Rush Current
30 A or less
Voltage Endurance
AC 1,000 V, 20 mA for 1 min (between charging and FG terminals)
Insulation Resistance
DC 500 V, 10 MΩ or more (between charging and FG terminals)
Surrounding Air Temperature
0 to 50 °C (32 to 122 °F)
Storage Temperature
-20 to 60 °C (-4 to 140 °F)
Ambient Humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.)
Storage Humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.)
Dust
0.1 mg/m³ (10⁻⁷ oz/ft³) or less (non-conductive levels)
Pollution Degree
For use in Pollution Degree 2 environment
Atmosphere
Free of corrosive gases
Air Pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less)
Vibration Resistance
IEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s², X, Y, Z directions for 10 cycles (approx. 100 min)
Concussion Resistance
IEC/EN61131-2 compliant 147 m/s², X, Y, Z directions for 3 times
Functional grounding: Grounding resistance of 100Ω, 2mm² (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)
Structure
IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure) *4
Cooling Method
Natural air circulation
Weight Approx.
0.4 kg [0.9 lb] or less (display unit only)
External Dimensions
W132 x H106 x D42 mm [W5.2 x H4.17 x D1.65 in.]
Panel Cut Dimensions
W118.5 x H92.5 mm [W4.67 x H3.64 in.], Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.] *5
4The front face of the GP unit, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification. Even though the GP unit's level of resistance is equivalent to these standards, oils that should have no effect on the GP can possibly harm the unit. This can occur in areas where either vaporized oils are present, or where low viscosity cutting oils are allowed to adhere to the unit for long periods of time. If the GP's front face protection sheet becomes peeled off, these conditions can lead to the ingress of oil into the GP and separate protection measures are suggested. Also, if non-approved oils are present, it may cause deformation or corrosion of the front panel's plastic cover. Therefore, prior to installing the GP unit, be sure to confirm the type of conditions that will be present in the GP's operating environment. If the installation gasket is used for a long period of time, or if the unit and its gasket are removed from the panel, the original level of the protection cannot be guaranteed. To maintain the original protection level, be sure to replace the installation gasket regularly.
5Regarding dimensional tolerance, everything +1/-0 mm [+0.04/-0 in.] and R in angle are below R3 [R0.12 in.]. Even if the installation wall thickness is within the recommended range for the "Panel Cut Dimensions", depending on wall's material, size, and installation location of GP unit and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.
External Dimensions
Panel Cut-out

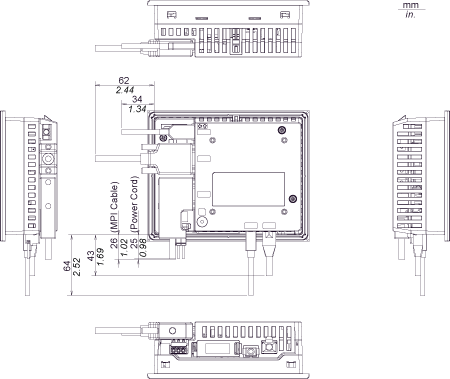

External Dimensions with cables
PFXGP4301TADW
*1Other font sizes can be set up with the Editor software.
*2Depending on the operating temperature and age of unit, the clock can deviate from -380 to +90 sec./month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.
For dimensional tolerance, everything +1/-0 mm [+0.04/-0 in.] and R in angle are below R3 [R0.12 in.]. Even if the installation wall thickness is within the recommended range for the "Panel Cut Dimensions", depending on wall's material, size, and installation location of GP unit and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.
