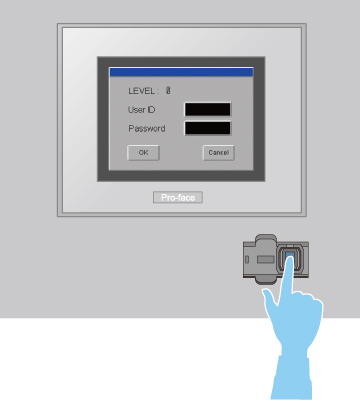

Fingerprint Authentification on HMI Operation
EZ Fingerprint Recognition Unit can be configured in 15-level password functions to reduce problems or accidents caused by inappropriate password use.
Fingerprint data is registered and maintained through an HMI or PC connected to EZ Fingerprint Recognition Unit.
* Fingerprint data for up to 100 users can be stored.
* Fingerprint registration software for PC is coming soon on GP-Pro EX Ver. 3.1 package or from download.
* You can register or delete fingerprint data by PC or HMI. The registration by PC is done on Fingerprint Recognition
Setting Tool, which is included in GP-Pro EX Ver. 3.1 package. The fingerprint data can be imported to different
screen data to use in other GP.
|
|
|
|
|
|
|
|
|
|

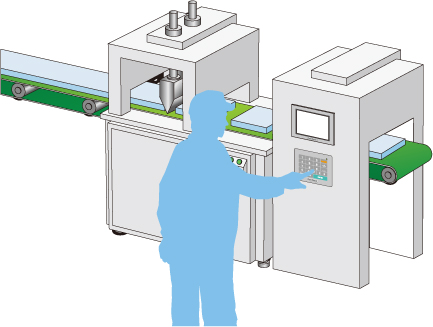

Configuring settings smoothly
When settings need to be configured frequently, the increase in the number of cramped data entry screens to accommodate on-screen numeric keypads and the number of times the operator needs to switch between screens leads to reduced operability and misoperation. Using the EZ Numeric Keypad frees up screen real estate, leading to improved operability. This reduces the stress associated with frequent settings configuration.
Additional features:
- Tactile feedback for trusty input operation.
- Input numbers and letters even when wearing gloves.
- Prevents deterioration of display caused by operation with dirty hands.

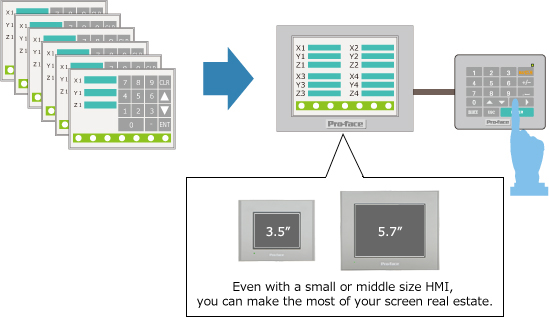

Reduced number of screens for setting configuration
On equipment that requires configuration of settings (such as recipe changes), it is necessary to create multiple setting configuration screens to ensure sufficient space for a digital numeric keypad. Using an EZ Numeric Keypad lets you leverage the full width of the display, reducing the number of man-hours required for screen design and improving legibility.

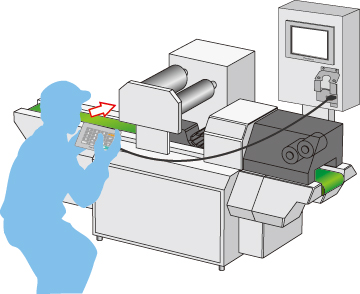

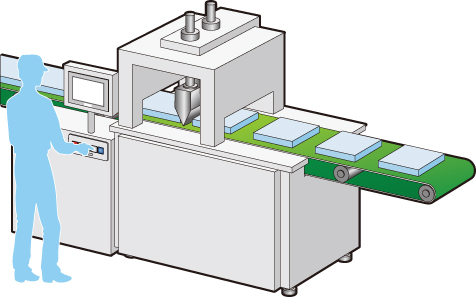

Easy data entry in a position away from the display
An EZ Numeric Keypad can be installed and used for settings and operation even in a remote location that is hard to see from the control panel. This feature is handy for simple adjustment when starting up the equipment or at changeover.
Additional features:
- Optional attachment for installing EZ Numeric Keypad on walls (model: PFXZCEATWM1).
- USB connection provides plug-and-play functionality, and allows keypad to be used only when needed.
- Keypad can be installed up to 5m (including the length of the USB cable in the equipment) away from display when using a commercially available USB cable.
Reduced need for redesigning if membrane keypads and microcomputers go out of production
Parts going out of production can cause problems if equipment employs membrane keypads and microcomputers. Discontinued parts result in a lot of work and time spent on tasks like redesigning, purchasing, and applying for standards certification. The reliable supply of Pro-face HMI and EZ Numeric Keypads eliminates worries about models going out of production. Additionally, connection and setup do not require programming, giving you more freedom to change specifications.
|
|
|
|
|
|
|
|
|
|
Easy and flexible configuration of lamps and switches

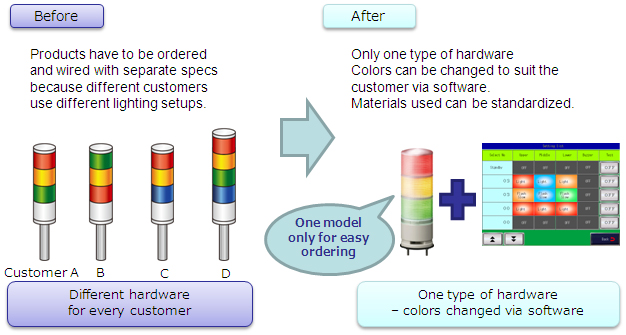

Lamps can be configured in six colors and 3 blink status in the screen editor software, GP-Pro EX.
Switches can be configured for bit, word, screen change, special feature and selector feature.*
EZ Illuminated Switch feature easily printable insert labels.
* For example: HOME, Change Screen, Change, Speed, Run, Stop, Reset, Auto, Manual and etc...

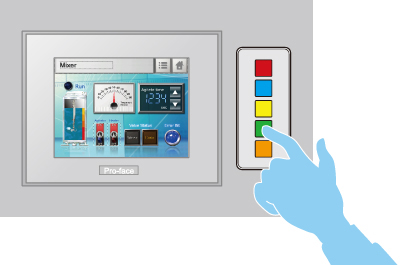

Configurable external switches for machine operability with tactile feedback
EZ Illuminated Switch allow operations where tactile feedback is desired. They are suitable for special operations like positioning and in situations when it is necessary to keep an eye on equipment when holding down a switch.

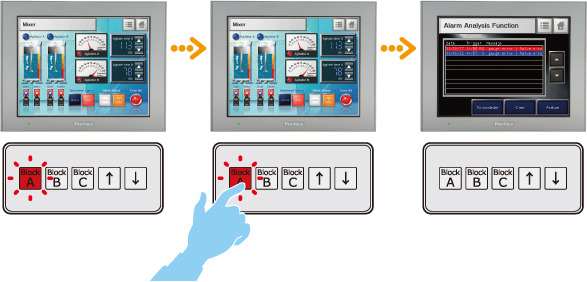

Indicate status of not displayed screens for each line or machine
EZ Illuminated Switch can be set to indicate alarm status with different colors according to current status. All alarm histories in the HMI can be checked and operated on one EZ Illuminated Switch.
You can check alarm status even when operating another screen or when the HMI is in standby mode.
* Alarm operations can be done with the external switches.
|
|
|
|
|
 |
|
|
|
|
|
EZ Series
-
*1 USB cable (A-miniB) to connect to a Pro-face's interface unit is not included. Please purchase our optional cable (Model No.:ZC9USCBMB1) or commercial product.
-
*2 When connecting GP4000M Series (color model), connect via a self-powered USB hub. The multiple units of EZ Series cannot be connected to GP4000 Series, GP4000M Series (color model) and WinGP.
-
*3 This product involves fingerprint technology. In some jurisdictions, this product may be subject to notification to and/or approval by relevant local regulatory authority. The jurisdictions which do not require such notification and/or approval as of December 1, 2012 ("Non-regulated Jurisdictions") are Japan, Korea, Taiwan, Thailand, Singapore, Australia, USA, Canada, Mexico, and Brazil.
|
|
|
|
|
|
