Hardware Products Pro-Server EX Supports


Pro-Server EX supports following hardware products with Ethernet I/F.

*1GP4100 Series monochrome model is not supported.







Pro-Server EX Software Licenses and Related Software


"**" is changed with the version of software.

Product Name Model No. Description
GP-Pro EX V*.* PFXEXEDV** HMI screen editor & logic programming software (DVD)
GP-Pro EX Editor License *1 PFXEXEDLS** GP-Pro EX editor license (license key code)
GP-Pro EX Group License *2 10 licenses PFXEXGRPLS**10 GP-Pro EX Editor Group License (license key code)
25 licenses PFXEXGRPLS**25
50 licenses PFXEXGRPLS**50
Pro-Server EX V*.* Developer *3 PFXEXSDVV** Software that connects a PC to HMI via Ethernet and collects and transmits data (DVD)
Pro-Server EX Developer License *4 EX-SED-LICENSE Pro-Server EX developer license (license key code)
Pro-Server EX Runtime License *5 EX-SRT-LICENSE Pro-Server EX Runtime License (license key code)
MES Action License EX-MES-LICENSE-V10 License key permitting Pro-Server EX to access a database (license key code)
GP-Viewer EX *6 Single license EX-VIEWER-LICENSE License allowing a PC to access HMI in remote mode (license key code)
10 licenses EX-VIEWER-LICENSE-10
30 licenses EX-VIEWER-LICENSE-30
Pro-face Remote HMI
(iPhone, iPad, iPod touch) V*.*		 PFXEXRHIOSV** Software to operate Pro-face HMI screen on iPhone, iPad and iPod touch
Pro-face Remote HMI
(Android) V*.*		 PFXEXRHANDV** Software to operate Pro-face HMI screen on Android OS
Pro-face Remote HMI Free
(Android) V*.*		 PFXEXRHANDTRV** Free software to operate Pro-face HMI screen on tablets or smartphones with Android OS
Pro-face Remote HMI Client for Win Single license PFXEXRHCLS Software for remote viewing of Pro-face HMI from desktop PC (license key code)
10 licenses PFXEXRHCLS10
30 licenses PFXEXRHCLS30

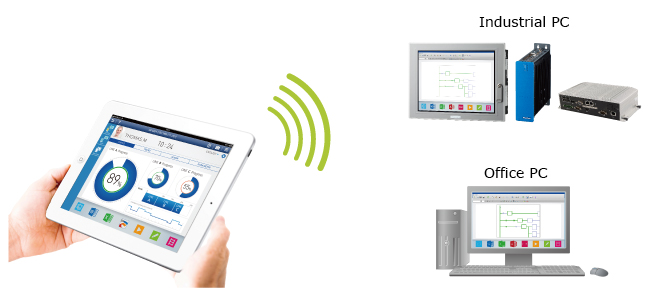

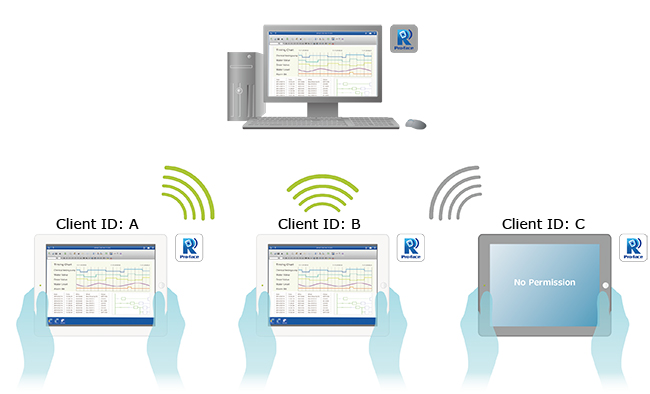

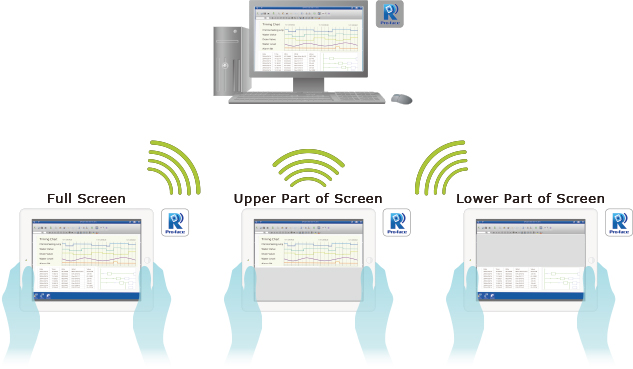

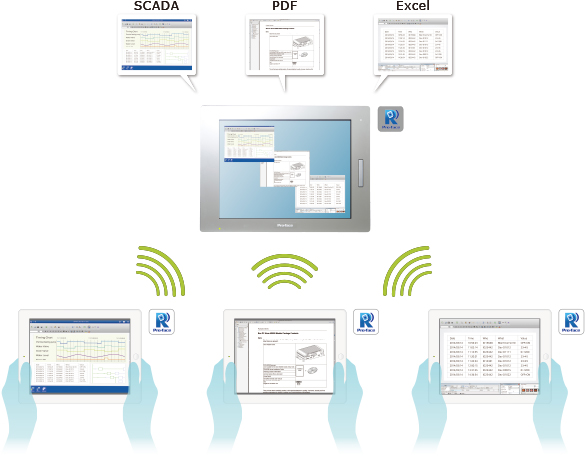

Pro-face Remote HMI Server *6 Single license PFXEXRHSLS Software to operate Windows programs via the Pro-face Remote HMI APP on any Android or iOS device, single license (license key code)
Video Converter License *6 EX-MOVCON-LICENSE License for the file conversion tool required to display video on HMI and PC (license key code)
Ladder Monitor License EX-LADM-MIT-Q02 License for add-on software that can be monitored by the Ladder Program of Mitsubishi's PLC Q Series (license key code)
EX-LADM-MIT-A01 License for add-on software that can be monitored by the Ladder Program of Mitsubishi's PLC A Series (license key code) (The ladder monitor is supported by the AnA series and the Q series (A mode).)
EX-LADM-OMR-CJ01 License for add-on software that can be monitored by the Ladder Program of OMRON's CS/CJ Series (license key code)
RPA Client License Single license EX-RPA License to access a PC on the network in remote mode (license key code)
10 licenses EX-RPA-10
30 licenses EX-RPA-30
WinGP for IPC *6 EX-WINGP-IPC Licence for using WinGP on WinGP-compatible IPC (license key code)
WinGP for PC/AT *6 EX-WINGP-PCAT Licence for using WinGP on PC/AT-compatible PC (license key code)
Camera-Viewer EX License *6 EXCAVELS Licence for using Camera-Viewer EX (license key code)
Camera-Viewer EX allows you to record ,play and check videos on PC at office in real time from cameras connected to HMI.

*1Purchase this product when installing GP-Pro EX in a second or subsequent PC. One license is required for each PC.

*2Group License consists of one set of Serial No./Key Code for installation on 10/25/50 PCs. (Should be used in the same office. Supports GP-Pro EX Ver. 3.1 or later.)

*3Includes the settings editor and Runtime.

*4Purchase this product when installing the settings editor and Runtime in a second or subsequent PC.

*5Purchase this license when installing Runtime only in a second or subsequent PC. One license is required for each PC.

*6This application can be installed from GP-Pro EX DVD-ROM, only the license needs to be purchased.







PFXEXSDVV13
Standard product information
Model
PFXEXSDVV13
Global Code
PFXEXSDVV13
Product Features
Software that connects a PC to a HMI via Ethernet and collects and transmits data. *1
Sales Status
Sale

*1Includes the settings editor and Runtime.
Software Operating Environment
Compatible OS
[PC / AT Compatible]
Windows XP 32 bit (Home, Professional) (Service Pack3 or later)
Windows Server 2003 32 bit (Standard, Enterprise) (Service Pack2 or later)
Windows Server 2003 R2 32 bit (Standard, Enterprise) (Service Pack2 or later)
Windows Vista 32 bit (Ultimate, Professional, Home Premium, Home Basic, Business, Enterprise)
Windows 7 32 bit / 64 bit (Ultimate, Professional, Home Premium, Home Basic, Business, Enterprise)
Windows Server 2008 32 bit / 64 bit (Standard, Enterprise, DataCenter)
Windows Server 2008 R2 (Standard, Enterprise, DataCenter)
Windows 8 32 bit / 64 bit (no mark, Pro, Enterprise)
Windows 8.1 32 bit / 64 bit (no mark, Pro, Enterprise)
Windows Server 2012 (Foundation, Essentials, Standard, DataCenter)
Windows Server 2012 R2 (Foundation, Essentials, Standard, DataCenter)
Windows 10 32 bit / 64 bit (Home, Pro, Enterprise)
Windows Server 2016 64 bit (Essentials, Standard, DataCenter)
Windows Server 2019 64 bit (Essentials, Standard, DataCenter)

[SP5000 Series (Open Box)]
Windows Embedded Standard 7 32 bit

[PE4000B Series]
Windows Embedded Standard 7 32 bit

[PS5000 Series]
Windows 7 Ultimate 64 bit
Windows Embedded Standard 7 32 bit / 64 bit MUI
Windows Embedded 8.1 Industry 64 bit
Windows 10 IoT Enterprise 2016 LTSB 64 bit
Language (Menu / Document)
English / Japanese
Hard disk space
[Pro-Server EX Developer] The mimimum: 1.1 GB (Recommended: 2.2 GB or greater)
[Pro-Server EX Runtime] The mimimum: 650 MB (Recommended: 1.3 GB or greater)*2
Memory
[Pro-Server EX Developer] The minimum: 256 MB (Recommended: 2 GB or greater)
[Pro-Server EX Runtime] The minimum: 128 MB (Recommended: 2 GB or greater)
Resolution
SVGA (800 × 600) or greater*3
CPU
x86 1.3GHz or greater, or compatible processor
Other software
Microsoft Excel 2002, 2003, 2007, 2010, 2013, 2016, 2019
Microsoft Access 2002, 2003, 2007, 2010, 2013, 2016
Microsoft SQL Server 2000, 2012, 2016, 2017, 2019
Oracle Database 8, 10g, 11g
Microsoft Internet Explorer Ver. 5.0 or later
.NET Framework Ver. 2.0*4
Mouse
Required*5
Connected printer type
Those supported by OS described above.
LAN
LAN cable (10BASE-2, 10BASE-5, 10BASE-T, 100BASE-T, 1000BASE-T)
Hub

*2Free space necessary for installation.

*3256 colors or greater required, only 96dpi font

*4[Microsoft Excel (Office Mobile app is not supported.) / Access / Oracle]
32 bit versions are supported.
The file format needed to be compatible with Office 2003 or earlier for actions (except for Excel Form Action).
Microsoft Office Desktop Apps is not supported. EXCEL for desktop version is supported.

[SQL Server]
64 bit version is supported.
When SQL Server is used, use SQL Server authentication.

[.NET Framework 2.0]
Automatically installed in the PC without .NET Framework 2.0.

*5Those supported by OS described above.
OPC Server for Pro-Server EX
Compatible OS
[PC / AT Compatible]
Windows XP 32 bit (Service Pack3 or later, Professional edition)
Windows Server 2003 R2 32 bit (Standard / Enterprise edition) (SP2 or later)
Windows Vista 32 bit (Ultimate / Professional / Home Premium / Home Basic / Business / Enterprise edition)
Windows 7 32 bit / 64 bit (Ultimate / Professional / Home Premium / Home Basic / Business / Enterprise edition)
Windows Server 2008 32 bit / 64 bit (Standard / Enterprise / DataCenter edition)
Windows Server 2008 R2 (Standard / Enterprise / DataCenter edition)
Windows 8 32 bit / 64 bit (no mark / Pro / Enterprise edition)
Windows 8.1 32 bit / 64 bit (no mark / Pro / Enterprise edition)
Windows Server 2012 (Foundation / Essentials / Standard / DataCenter edition)
Windows Server 2012 R2 (Foundation / Essentials / Standard / DataCenter edition)
Windows 10 32 bit / 64 bit (Home / Pro / Enterprise)
Windows Server 2016 64 bit (Essentials / Standard / DataCenter edition)
Windows Server 2019 64 bit (Essentials / Standard / DataCenter edition)

[SP5000 Series (Open Box)]
Windows Embedded Standard 7 32 bit

[PE4000B Series]
Windows Embedded Standard 7 32 bit

[PS5000 Series]
Windows 7 Ultimate 64 bit
Windows Embedded 8.1 Industry 64 bit
Windows Embedded Standard 7 Premium 64 bit
CPU
Pentium III 600 MHz or greater, or compatible processor*6
Hard disk space
The minimum: 600 MB (Recommended: 1 GB or greater)*7
Memory
The minimum: 512 MB (Recommended: 2 GB or greater)
Other software
.NET Framework Ver. 2.0
Pro-Server EX Ver. 1.20 or later
Microsoft Internet Explorer Ver. 6.0 or later*8

*61 GHz or greater recommended.

*7Free space necessary for installation.

*8Automatically installed in the PC without .NET Framework 2.0.
MES action
Compatible OS
[PC / AT Compatible]
Windows XP 32 bit (Service Pack3 or later, Professional edition)
Windows Server 2003 32 bit (Standard / Enterprise edition) (SP2 or later)
Windows Server 2003 R2 32 bit (Standard / Enterprise edition) (SP2 or later)
Windows Vista 32 bit (Ultimate / Professional / Home Premium / Home Basic / Business / Enterprise edition)
Windows 7 32 bit / 64 bit (Ultimate / Professional / Home Premium / Home Basic / Business / Enterprise edition)
Windows Server 2008 32 bit / 64 bit (Standard / Enterprise / DataCenter edition)
Windows Server 2008 R2 (Standard / Enterprise / DataCenter edition)
Windows 8 32 bit / 64 bit (no mark / Pro / Enterprise edition)
Windows 8.1 32 bit / 64 bit (no mark / Pro / Enterprise edition)
Windows Server 2012 (Foundation / Essentials / Standard / DataCente editionr)
Windows Server 2012 R2 (Foundation / Essentials / Standard / DataCenter edition)
Windows 10 32 bit / 64 bit (Home / Pro / Enterprise)
Windows Server 2016 64 bit (Essentials / Standard / DataCenter edition)
Windows Server 2019 64 bit (Essentials / Standard / DataCenter edition)

[SP5000 Series (Open Box)]
Windows Embedded Standard 7 32 bit

[PE4000B Series]
Windows Embedded Standard 7 32 bit

[PS5000 Series]
Windows 7 Ultimate 64 bit
Windows Embedded 8.1 Industry 64 bit
Windows Embedded Standard 7 Premium 64 bit
Hard disk space
The minimum: 1 GB (Recommended: 1 GB or greater)*9
Memory
The minimum: 512 MB (Recommended: 2 GB or greater)
Other software
NET Framework Ver. 2.0 or later
Pro-Server EX Ver. 1.20 or later
Microsoft SQL Server (2005, Express Edition, 2012, 2016, 2017, 2019)
Microsoft SQL Server Management Studio*10

*9Free space necessary for installation.

*10[.NET Framework 2.0]
Automatically installed in the PC without .NET Framework 2.0

[Microsoft SQL Server / SQL Server Management Studio]
Service Pack 2 or later is compatible with Windows Vista.
Service Pack 4 or later is compatible with 64 bit versions Windows 7 and Windows Server 2008 R2.





replace


The Pro-Server with Pro-Studio and GP2000/GLC series system can be replaced to Pro-Server EX.
We would like to introduce the method and important notes.



The compatibility of when you replace from “Pro-Server with Pro-Studio” to “Pro-Server EX”
