Dependability
Disk-less System for Secure Operation
SSD or CF Card with Embedded OS ensures stable operation even in locations subject to vibration or shock.
|
|
For longer CF Card life, we recommend
saving log data to another storage device.
|
For Sites Where Uninterrupted PC Operation is Required
All models can be used continuously for 24 hours including products equipped with a hard disk drive.
Longer Life of Parts
A large-size heat sink and intelligent fan control reduce load on the components.*
* Fan-less model with lower operating noise and heat generation is also available.
|
|
|
UPS (Uninterruptible Power Supply) supported (BTO option)
UPS (Uninterruptible power-supply system)* support ensures continuous computer operation even during problems such as voltage drop or power failures, and prevents data loss or other damage.
* DC power supply model only
|
|
|
Highly Corrosion-resistant and Hygienic
The stainless steel bezel *1 models are resistant to corrosion caused by gases, chemicals, steam, etc *2, and can be used also in a hygiene-conscious environment such as Food & Beverage industry.
*1 Comply with "Stainless steel grade 304"
*2 Comply with "FDA 21 CFR 177.2006, EN1672-2"
|
Stable Supply
Operating System with Long-Term Supply
A licensing agreement with MicrosoftR allows us to provide a long-term supply of the product.
|
|
|
Provides High-speed Processing
WindowsR 7 for the OS, Core"! 2 Duo for the CPU. PCI Express for the expansion slot.
|
|
|
Maintainability
Easily Replaceable HDD Drive
The cartridge type HDD/SSD allows easy replacement.
|
|
|
Easily Replaceable Fan
A fan kit is provided as a maintenance product to enable easy replacement by the customer.
|
|
|
Compatibility
Reusing HMI Resources
With the runtime engine WinGP, screens created in the "HMI Screen Editor Software" GP-Pro EX can be used on a PC.*
* Logic programming is not available for PS4000 series.
|
|
|

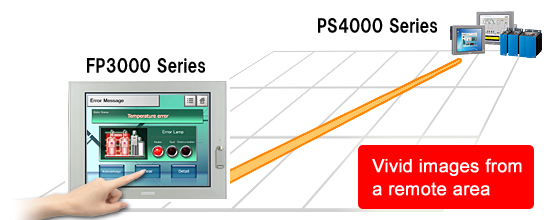

Industrial Touch Monitor
Flat Panel Display FP3000 Series can be connected with DVI or analog RGB. *1*2*3
*1 FP3000 Series Rev. 2 or later can be connected with DVI (Supports DVI hot plug)
*2 The FP-3900T models only support the analog RGB connection.
*3 When connecting FP3000 Series with analog RGB, use DVI-RGB conversion cable (Model: CA7-CBLCVRGB-01).
|
|
|
Reassurance
Support in 22 Countries
|
|
|
Various Safety Standard Acquisition
All of the most common safety standards are acquired, so products can be trusted when exporting and importing. *
UL/cUL (UL508), UL HazLoc (ANSI/ISA 12.12.01), CE mark, ATEX Zone 2/22 ( Gas/Dust), C-Tick, KC mark, GOST

* For the details of standards, click here.
* For each safety standard certification, see the PS4000 Series specification pages.
|
Marine Safety Standard Acquisition
Support GL (Germanischer Lloyd) *
* Click here to download standards certifications
|
|
|
|
|
|
|
Display (Resolution): 65,536-color TFT (800 x 600 pixels)
