    Digital Gauging Probe Spring Push DPS



    Integral Readout with colour             LCD Display and keypad.

    Set tolerance and process limits       via keypad

    Detachable probe plug on                 housing for easy installation.

        (Gauging probes, Block Gauges     & Flexures only)
    Replace probe with no                       calibration or reprogramming

    Modbus output (RTU or ASCII)         over RS485 or RS232

    Programmable discrete I/O (4           inputs, 3 outputs)

    Multiple formulas available for SI     200 (A+B, A-B, etc.)

    Available with all Solartron               Gauging probes, Displacement       sensors, Orbit® LT, and LTH.

    SI200 can stack laser with                 gauging probe or displacement       sensor

    24V DC Power Supply

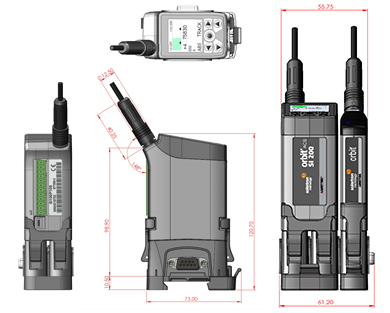

    SI100 & SI200



    Single and Dual Channel systems for easy connections into PLC or Automation

    Solartron Metrology, the world leader in linear measurement innovation, introduces two new Orbit®3 based systems for easy, low cost connections into PLCs and process control systems. The SI100 is a single channel, stand alone system, while the SI200 also connects to an Orbit®3 probe for a two channel reading.
