Digital Gauging Probe Spring Push DPS



Integral Readout with colour             LCD Display and keypad.

Set tolerance and process limits       via keypad

Detachable probe plug on                 housing for easy installation.

    (Gauging probes, Block Gauges     & Flexures only)
Replace probe with no                       calibration or reprogramming

Modbus output (RTU or ASCII)         over RS485 or RS232

Programmable discrete I/O (4           inputs, 3 outputs)

Multiple formulas available for SI     200 (A+B, A-B, etc.)

Available with all Solartron               Gauging probes, Displacement       sensors, Orbit® LT, and LTH.

SI200 can stack laser with                 gauging probe or displacement       sensor

24V DC Power Supply

SI100 & SI200



Single and Dual Channel systems for easy connections into PLC or Automation

Solartron Metrology, the world leader in linear measurement innovation, introduces two new Orbit®3 based systems for easy, low cost connections into PLCs and process control systems. The SI100 is a single channel, stand alone system, while the SI200 also connects to an Orbit®3 probe for a two channel reading.






  • Info
  • Specifications


Orbit® 3 Controller - Specification



  USB Interface Module
(USBIM)		 Ethernet Interface Module
(ETHIM)		 RS232 Interface Module
(RS232IM)		 RS485 Interface Module
(RS485IM)		 Wireless interface Module (WIM) Modbus Interface Module (MODIM)
Connection
USB 2.0
Ethernet
RS232
RS485
Bluetooth
MODBUS RTU
Data Rate (max) Baud
12 MB
10/100 MB
115200B
115200B
3Mbps
115200B
No of Modules
150
150
150
150
150
150
No of Module powered
4
0
0
0
0
0
Measurement Modes
All
Static, Readburst
Static, Readburst
Static, Readburst
Static, Readburst
MODBUS
Readings per second
3906 (max)
300 (typical)
150 (typical)
150 (typical)
25 (typical)
MODBUS
Nominal Power Requirment mA @ 5V (No load)
250
350
62
62
120
62



Note 1: The USB controller can power up to 4 Orbit® Modules of most types. Some products require additional power supply                          modules.



Note 2: Readings per second for up to 16 modules.



Note 3: See measurement mode table.








Controllers / Interfaces for Orbit® 3 Sensors


USB Interface Module (USBIM) RS232/RS485 Interface Module (RS232IM)/
(RS485IM)		 Ethernet Interface Module (ETHIM)

MODIM a PLC interface module for Orbit® 3

Wireless Interface Module (WIM)



There is a choice of controllers - a USB interface, an RS232 interface Module for PC or PCLs or Solartron's own digital displays. The choice of interface is dependent on the application and the Orbit® 3 operating mode.

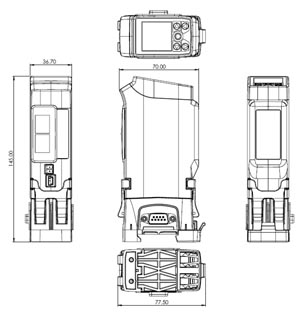

Probe Tip Adapter

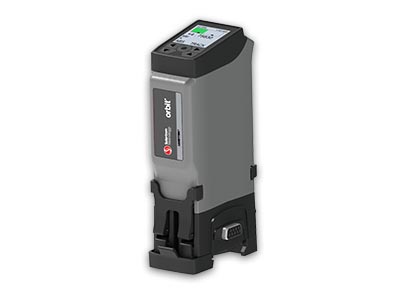

Protocol Interface Module (PIM) - Specification

Performance
Connection EtherNet/IP
Data Rate (Max) Baud 12 MB
No of Modules (Note 1) 150 using Explicit Messaging
50 using Cyclic Messaging
No of Module powered 10 direct, up to 150 with additional Power Supply modulesReadings
Readings per second 400 Readings/sensor/sec for 2 sensors
150 Readings/sensors/sec for 24 sensors
Power Supply 24 VDC nominal (18V to 32 VDC allowed)
  PIM provides power for up to 10 Orbit® Probe and up to 4 LTH/LTM Laser modules
Indications Integral LCD Screen and Keypad for screen selection
Configuration PC Port Micro USB Port
Ethernet Port 2 x RJ485 Connectors
Environment
Sealing IP43
Operating Temperature °C -20 to +70
Storage Temperature °C 0 to 60
EMC Emissions EN610000-6-3
EMC Immunity EN61000-6-2



Note 1: Explicit messaging can read the following items: measurement, satus, max and min, from 150 sensors. Cyclic                                    messaging can read measurement and status synchronized from 50 sensors.
