The electrical performance of an analogue displacement transducer is only as good as the signal conditioning allows. Solartron Metrology has used its considerable experience to produce signal conditioning, numerical displays and controllers that enhance the performance of its analogue transducers and ensure simple and reliable connection to instrumentation and control systems.
Compass SC1 & SCD1 - NEW "All-in-One" Signal Conditioner
Compass SC1 & SCD1 - NEW "All-in-One" Signal Conditioner
Single input channel with or without display. Display has six digit resolution.
With display: SCD1
Without display: SC1
Connects any LVDT or Half Bridge probe
Accepts Marposs andTesa Spec’d inputs
Output via +/- 10 VDC, 0-10VDC, Modbus, or via USB into Orbit GCS software
+10 to – 10V digital limit I/O option
Easy setup to Windows PC via USB plug
Status LEDs on casing are configurable by software
DIN Rail Mount
Comes with a FREE calibration software pack. Includes calibration with sensitivity, analogue output, as well as Modbus settings
Solartron has a range of digital readouts to suit all applications from industrial panel mount to desk top units. Readouts can have from 1 to 31 channels of measurement and can be configured for custom applications.
All of Solartron readouts work with all of Solartron Digital Transducers and Non-Contact Sensors, the performance of these sensors is not degraded in any way when used with the readouts.
SI3500 and SI5500 Readouts
Accepts up to 31 Orbit® Sensors (SI5500)
Suite of Mathematical Functions for each channel
Auto colour change for in/out limit range
User selectable bar panel or text display
Auto course / fine resolution
Gauging Mode
Peak hold facility
Data logging facility
RS232 Connectivity
0.01 μm display resolution
Available for Digital probes, Linear Encoders, Encoder Input modules and laser sensor
Specially designed to work with Solartron Orbit® Digital Transducers, the SI3500 and SI5500 provide the user with solutions for small systems. Both readouts have intuitive menu systems for ease of set up and can be programmed to display readings, alarms, limits and other metrology functions. With discrete I/O and serial interfaces these readouts provide a neat solution to interface to other systems like PLC’s.
10 mm and 6 mm diameter fixing threads (as used on most popular gauge heads)
Inductive Charging
10 hours typical battery life before re-charge
GEMCO Series Magnetostrictive Displacement Transducers
Linear Displacement Variable Transducers (LVDT) play an important role in factory automation. They provide accurate, reliable, absolute position feedback to help automate today's sophisticated machinery. Sensors must deliver value, be easy to set up, and interface easily into the host controller. Gemco position sensors are suitable for a range of automation applications.
Solartron Metrology’s analogue gauging probes and special sensors use an inductive sensor to measure the position of the probe tip. The sensors are available in both LVDT (linear variable differential transformer or half bridge configuration). Solartron also provide a range of conditioning electronics that allow the user to interface to the probes. Solartron have a vast range of probes to suit all applications.

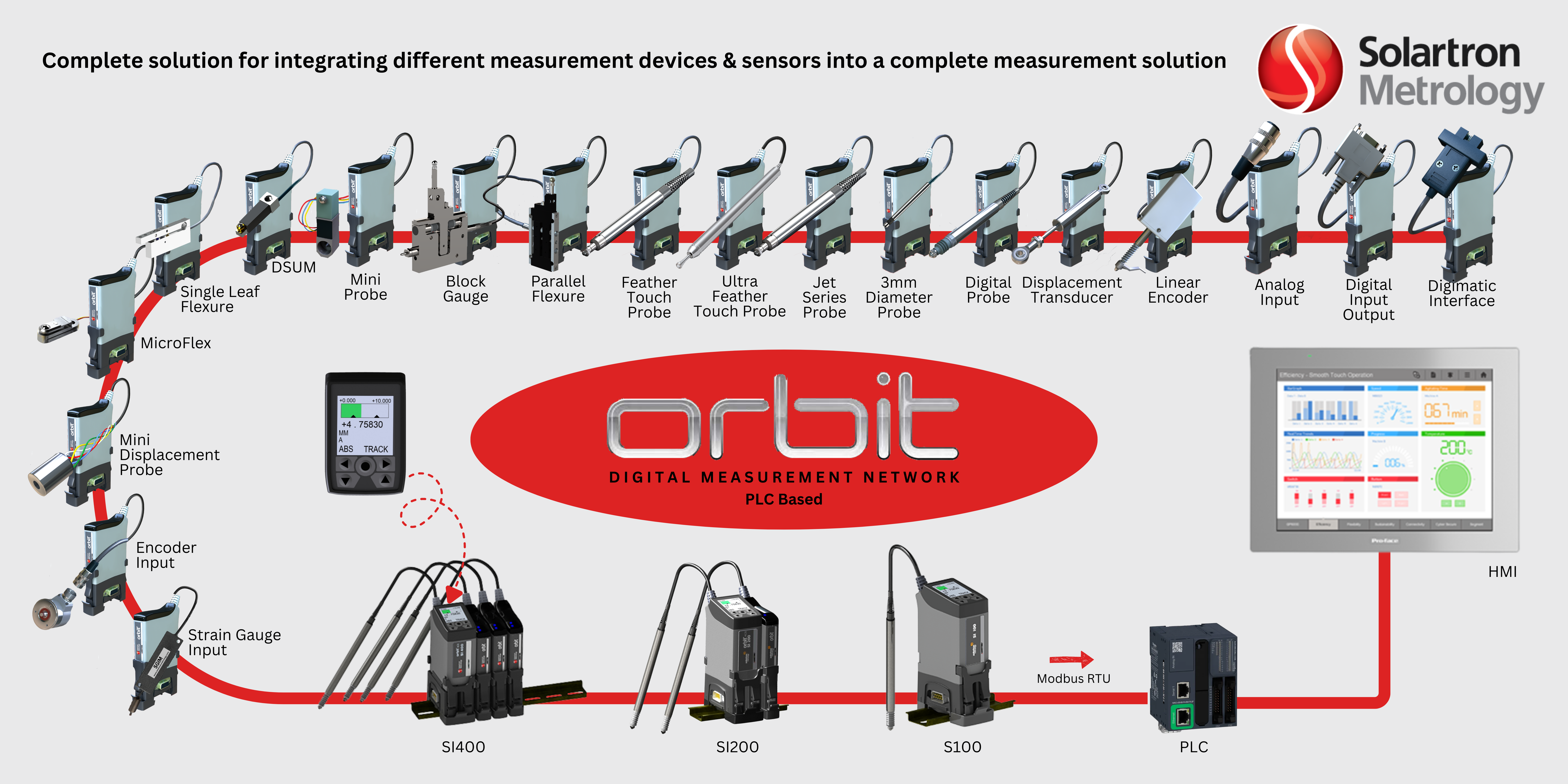

Alongside the highly successful range of Digital Transducers for precise measurement of parts in manufacturing, Solartron also offer a range of displacement sensors for position control in industry, the laboratory and test environments. Nearly all of these sensors can be integrated with the flexible Orbit® Measurement Network or provided with integral voltage or current outputs.
Displacement Sensors | Overview of LVDT Displacement Sensor
Solartron Metrology is a world leader in the innovation and manufacture of precision digital and analogue displacement sensors and associated instrumentation.
The culmination of Solartron’s 50+ years of experience manufacturing LVDT displacement sensors is a deep understanding of the need to match the performance of the sensor precisely to the demands of the application and environment. The cost advantage of matching the best sensor to the requirement is clear, this can only be done with a company that has both an extensive range of sensors, accessories and electronics in conjunction with a philosophy of designing “custom products” to specific requirements.
Solartron precision measurement solutions perform vital tasks in a range of diverse industries including aerospace, pharmaceuticals, medical., power generation, oil and gas, paper making, civil engineering, tunnelling, semiconductor manufacture, mining, glass making, water treatment, chemical processing, steel production.
Single input channel with or without display. Display has six digit resolution.
2 Wire loop powered
Linearity better than 0.2%
