Probe Tips                                                                                                            Technical Spec

Contact size, shape and material are critical to ensure accurate measurements, foe example a flat knife tip makes measuring external diameters much simpler than using a point tip as probe alignment is not as critical. Tungsten carbide is a good general purpose material while ruby offers longer life. Silicon Nitride is good for aluminum as Tungsten Carbide can mark aluminum parts.

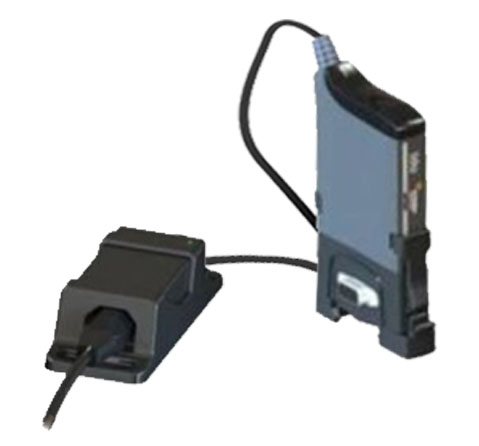

PSIM (Power Supply Interface Module)

For use with multi-channel systems needing more power than available from the host computer. The power supply can also extend the network beyond the normal 10m per port limit depending on cable type. PSIM dimensions are identical to PIE plus T-Con, however the unit does not separate.

Clamping Collets and Sleeves                                                                           Technical Spec

Replacement Gaiters: Gaiters can be replaced when damaged. Only pneumatic push probes require gaiter rings Retrofit.

Right Angle Adaptor: For use with spring push gauging probes

Imperial Adaptor Sleeves: Adapter Sleeves can be used to increase the body diameter of 8mm sensors to 9.512 (3/8”). Available in lengths from 12 to 127 mm. Available with or without a split.

Clamping Collet: For use with all 8 mm diameter probes. The clamping collet distributes the clamping forces evenly around the probe body. Using the supplied grub screw, the probe can be loosened while holding the collet in place.
