The scanCONTROL BL is used for multi-dimensional measurement on red-hot glowing metals as well as on transparent and organic materials. While allowing higher stability, the blue laser light does not penetrate the measurement object due to the shorter wavelength of the blue-violet laser and offers more stability. Red-hot glowing and even organic objects are measured more reliably compared to the red laser.

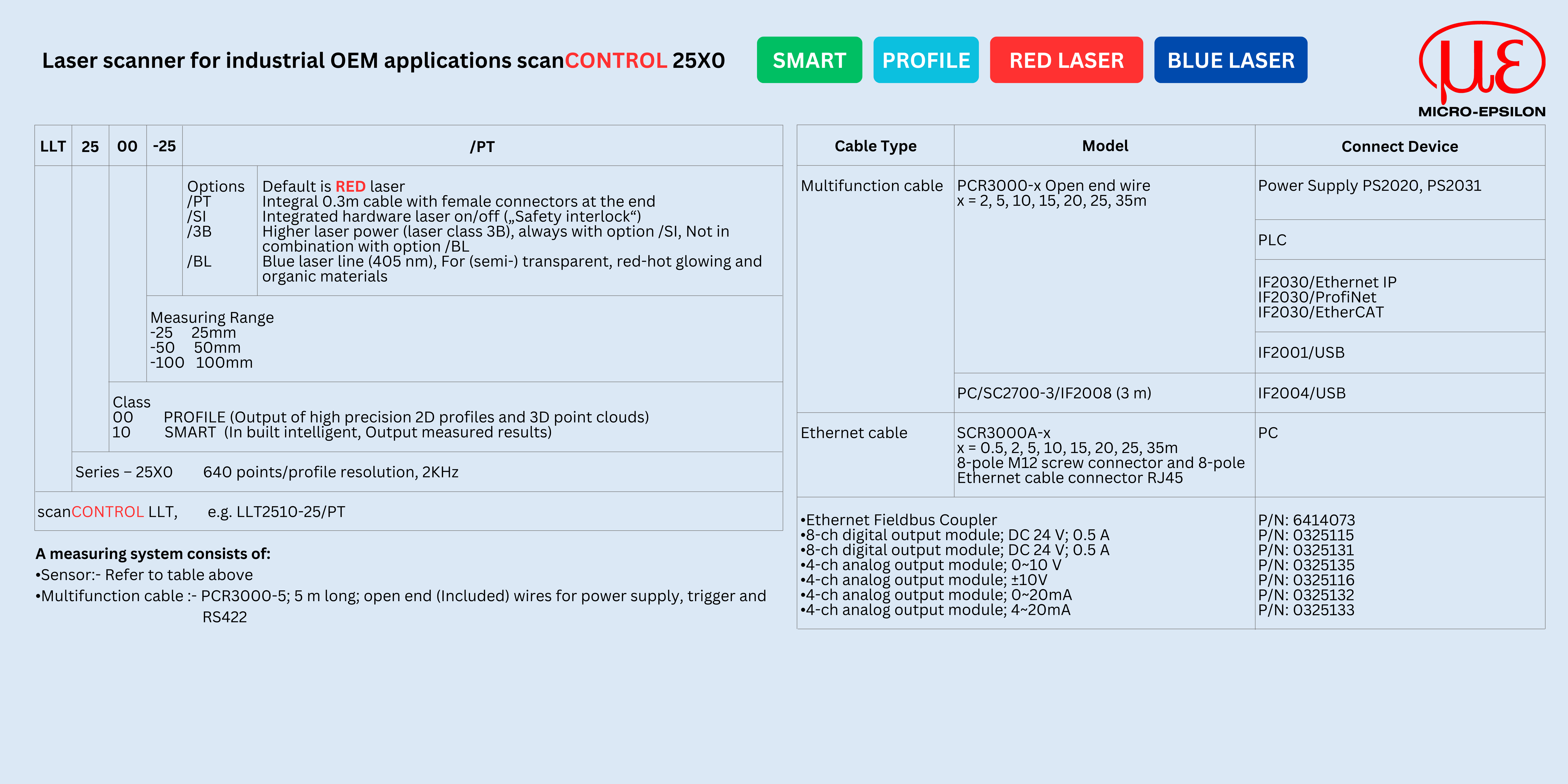

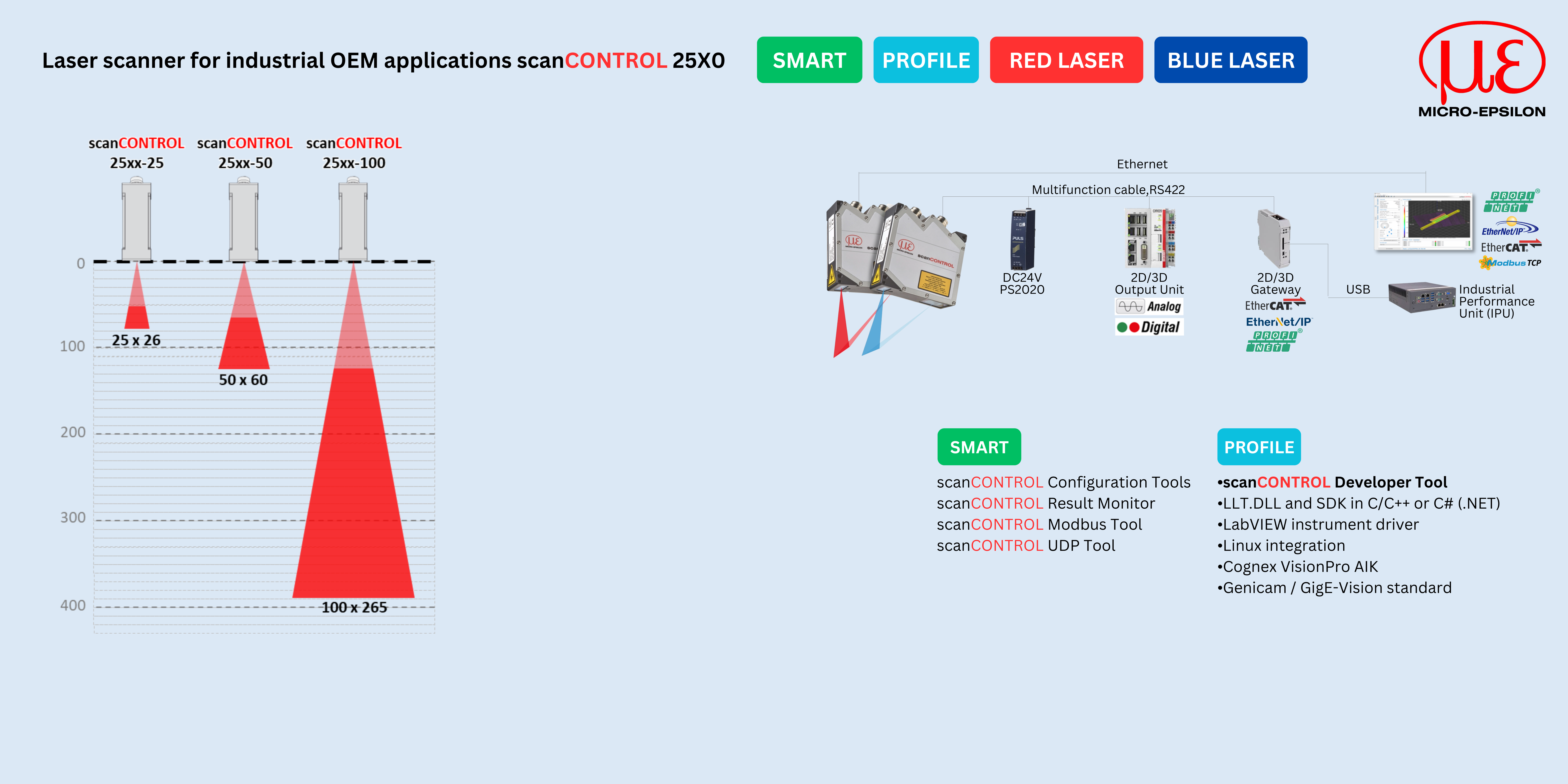

The scanCONTROL BL models offer the same excellent features as the scanCONTROL series that use a red laser diode. The Blue Laser scanners are as well available in three classes: Compact (2900/BL, 2700/BL), High-Speed (2950/BL, 2750/BL) and Smart (2910/BL, 2710/BL).

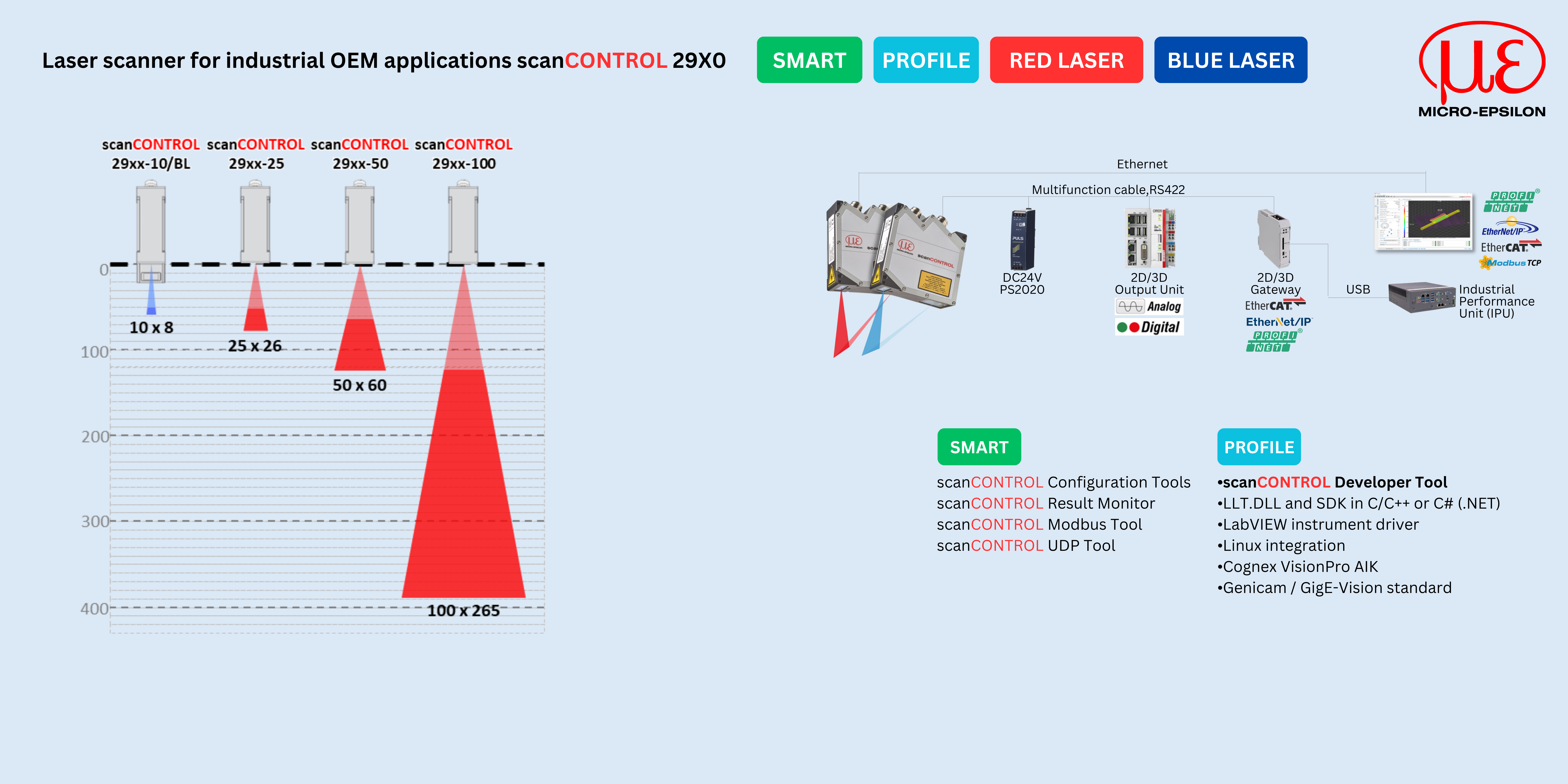

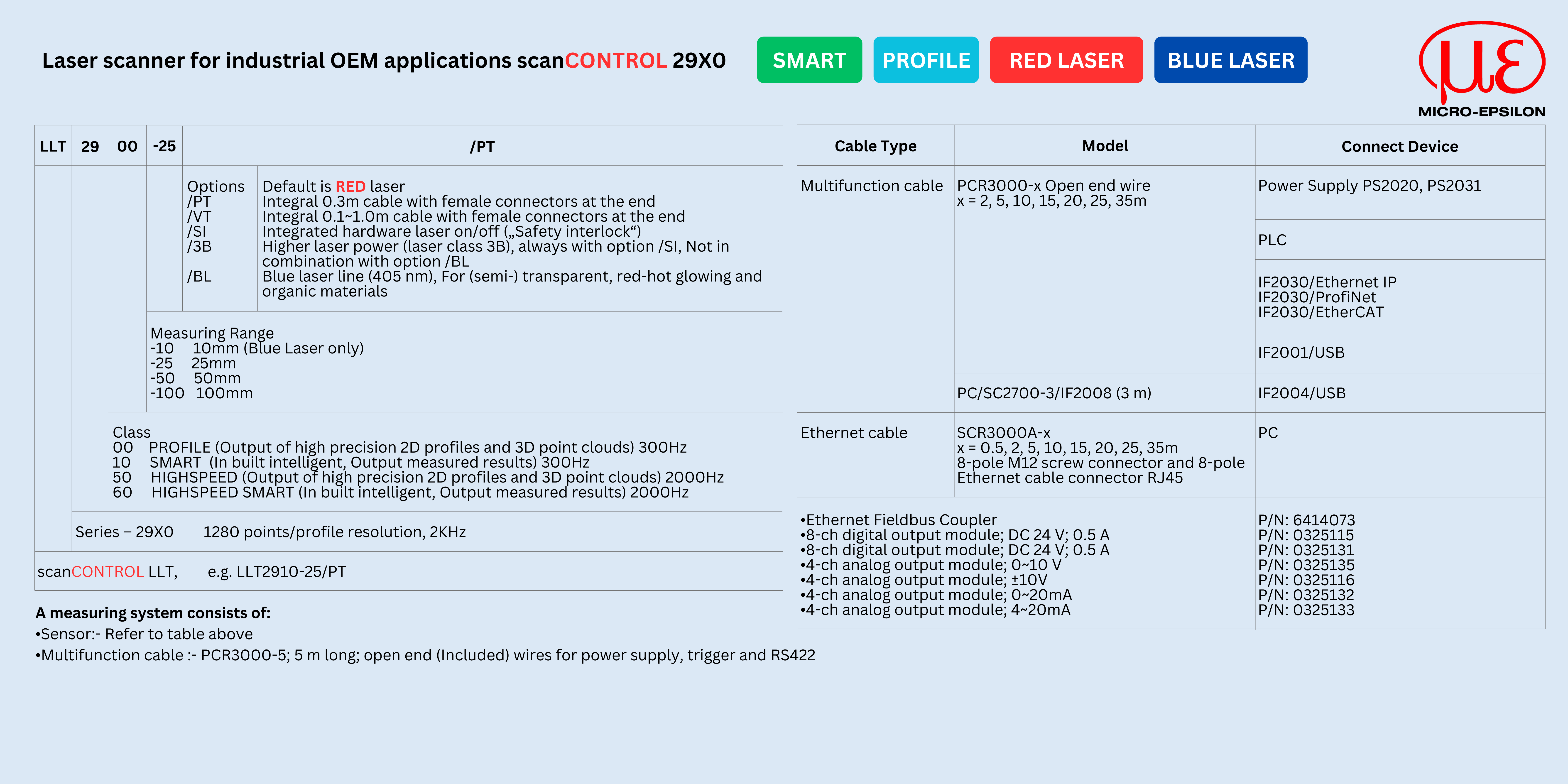

World first: scanCONTROL 29xx-10/BL with 10mm laser line
The new scanCONTROL 29xx-10/BL laser profile scanner projects an only 10mm wide laser line. The profile resolution of 1280 points results in a point distance of just 7.8 µm. Due to this high resolution combined with the blue laser, the sensor is preferably used in highly precise measurement and inspection tasks, e.g. in precision mechanics or the electronics and medical engineering.
The analog display, DD241PC, has an analog input and is typically used for distance monitoring or for position control. If two analog signals have to be evaluated together, the DD245PC model is available. The DD245PC is ideal for applications such as static thickness measurement, where a new output signal must be calculated from two input signals. The process display DD214NE is used for digital incremental sensors and, like its analog counterpart, can evaluate both signals and output as one signal. The DD202TA is used for displaying revolutions or speed. The DD214NA is used for the position display with SSI output sensors.
Details
Low cost Process indicators
Visualization of various sensor signals
6-digit 7-segment display
For digital or analog displacement signals, speeds and revolutions
boreCONTROL is designed for the inspection of small bore holes from ø4 mm. The measurement system consists of a sensor with integrated rotary drive, a motor controller, a sensor controller and an exchangeable sensor lance. boreCONTROL is based on confocal chromatic sensor technology. The rotating sensor lance enables a circular measurement. The system provides non-contact diameter measurements in bore holes and cavities.
Measuring Priciple
The confocal chromatic measuring principle offers the following advantages:
Non-contact measurement with small light spot
High resolution in radial & axial direction
High dynamics (sampling rate up to 25kHz)
Applicable on many materials
Applications
Measurement of precision parts for turning, milling, deep drawing, injection moulding etc.
First-off sample inspection or in-process diameter measurements
Surface assessment & defect detection
For numerous applications in the automotive industry, aircraft industry, medical engineering and in machine building
boreCONTROL LAB
boreCONTROL LAB is a device designed for laboratory use. This benchtop unit is ideally suited to applications in development and quality assurance, including for example first-off samples or production spot checks. boreCONTROL LAB is easy to set up and configure, providing high precision statements about the quality of bore holes or cavities in the diameter range from 4mm up to 16mm.
System design A granite table enables temperature-resistant and vibration-free measurements. The sensor consists of a quickly exchangeable sensor lance and a rotary drive. It is moved by a high precision linear stage in axial direction (z direction). Sensors for the diameters 4 to 10mm, 8 to 13mm and 10 to 16mm are available. Measurement objects can be easily fixed using a chuck and precisely positioned with a manual x-/y-table. Operation and evaluation are performed via an industrial tablet PC.
Special Features
Measurement of a wide variety of materials, also sensitive surfaces
Time-saving inspection of precision parts or machine setup
High precision and detailed statements about dimensions and quality of interior walls
Fast setup
Software
The user-friendly software included in the scope of supply offers the following features:
Set up and configuration z axis and sensor
2D display of diameter
Polar plot for visualization of diameter
2D visualization of interior wall for surface assessment
Tabular presentation of measurement values
Protocol file with measurement values for export to e.g. MS Excel
System components for customer-specific applications
The system components can be purchased individually. boreCONTROL consists of a rotating unit with exchangeable sensor lance, motor controller and sensor controller. The rotary drive is operated by the motor controller. The sensor controller serves for parameter set up and signal processing. Via the Ethernet interface of the controller, boreCONTROL provides a data package with distance, angle and intensity figures. For customer software development, a SDK is included.
Details
Measuring ranges: 4 - 10mm and 10 - 16mm
Non-contact measurement
Short measurement cycles due to high sampling rate
Intensitiy evaluation enables confocal chromatic distance measurement and surface inspection
High reproducibility and accuracy
Optical temperature compensation
Controller with integrated light source for measuring rates up to 70kHz Product Technology
Due to a user-friendly web interface, the entire configuration process is carried out without using any additional software. The web interface can be accessed via Ethernet and provides set up and configuration options. Materials are stored in an expandable materials database.
Controller with integrated light source for measuring rates up to 25kHz
The confocalDT IFC2461 series controllers are equipped with enhanced, optical components with which measuring rates up to 25kHz can be achieved. The high light intensity enables reliable measurements on difficult surfaces, e.g. on matt black objects or for multi-layer thickness measurement of glass. The controller can be operated with any IFS series sensor and is available as a standard version for distance measurements or as IFC2461MP multi-peak version for thickness measurements. Data output is via Ethernet, EtherCAT, RS422 or analog output.
Due to a user-friendly web interface, the entire configuration process is carried out without using any additional software. The web interface can be accessed via Ethernet and provides set up and configuration options. Materials are stored in an expandable materials database.
