Inductive sensors for specific applications


Application examples are often found where the standard versions of the sensors and the controller are performing at their limits. One of our special strengths is having the possibility to adapt our sensors to the individual requirements of our customers. Changes requested include, for example, modified measuring ranges, integrated controller, modified designs, mounting options or integration of different interfaces. Together we will find the best solution for your measurement task.

Catalog induSENSOR


 Characteristics

  •  Customer-specific sensor design
  •  Adapted measuring range
  •  Integrated or external controller
  •  Target as sleeve or plunger
  •  Robust sensors for harsh ambient conditions
  •  ATEX versions
  •  Sensor for high temperature of up to 200°C
  •  Specific requirements to high vibration resistance





DOWNLOADS

 Catalog induSENSOR (PDF, 1.9 MB)
 Data sheet induSENSOR Series LVDT sensors (Excerpt of Catalog)

induSENSOR VIP series


    Measuring ranges Resolution Linearity
indu-vip.jpg (768 Bytes)) induSENSOR VIP series 50 - 150 mm 0.03 % F.S.O. ± 0.25 % F.S.O.
FSO = of full scale output


The optimum ratio of measurement range to installed length of the sensor reduces the installation space needed for the VIP series. The parallel connection of the measurement object and measuring sleeve facilitates completely new construction and installation options. Whereas with conventional sensors with an axial measurement path, the length of the plunger must be added to the actual housing length, with the VIP series only the housing length has to be considered during the design.

Details

Measuring ranges (mm): 50 | 100 | 150
Linearity max. 0.25mm
Resolution max. 0.015mm
55% reduced design
Patented measurement principle
Parallel mounting possible





DOWNLOADS

 Catalog induSENSOR (PDF, 1.9 MB)
 Data sheet induSENSOR Series LVDT sensors (Excerpt of Catalog)

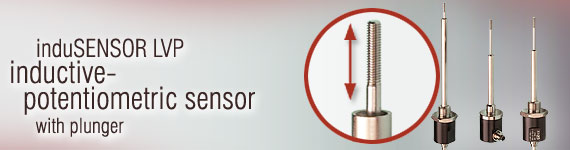

induSENSOR LVP series


    Measuring ranges Resolution Linearity
indu-lvp.jpg (800 Bytes)) induSENSOR LVP series 50 - 200 mm 0.03 % F.S.O. ± 0.25 % F.S.O.
FSO = of full scale output


An important advantage of the LVP sensor technique lies in the short length of the installed sensor. This difference in lengths becomes clear in a direct comparison with an LVDT sensor. Another difference lies in the sensor design with integrated controller.

Details

Measuring ranges (mm): 50 | 100 | 200
Linearity max. 0.125mm
Resolution max. 0.015mm
Integrated microelectronics
Compact design - short installed length
Screened against interference fields







induSENSOR LDR series


The specific sensor configuration of the linear displacement sensors in the LDR series is characterized by a short, compact design with small diameter. The compact design and the small sensor diameter facilitate the installation of the measurement systems in locations where space is restricted.

Catalog induSENSOR
Data sheet induSENSOR Series LDR


 Characteristics

  •  Measuring ranges (mm): 10 | 25 | 50
  •  Linearity max. 0.025mm
  •  Sensibility max. 51mV/Vmm
  •  Operating temperature range up to 160°C
  •  Compact and short sensor construction
  •  Small sensor diameter
  •  Temperature stability







induSENSOR EDS series


The sensor elements of the EDS series are protected by a pressure resistant stainless steel housing. As target, an aluminum sleeve is used which is integrated into the piston rod and is passed without making contact and wear-free over the sensor rod.

Catalog induSENSOR
Data sheet induSENSOR Series EDS


 Characteristics

  •  Measuring ranges (mm): 75 | 100 | 160 | 200 | 250 | 300 | 400 | 500 | 630
  •  Linearity max. 0.3mm
  •  Resolution max. 0.05mm
  •  High pressure resistance
  •  Oil resistant and maintenance-free
  •  Ideal for displacement measurements in hydraulic cylinders
