The Solartron Wireless Support Pack offers increased efficiency, flexibility, and uncompromised accuracy. By eliminating the need for cables to download measurement data, manufacturers achieve greater freedom in workstation design and practice.
Wireless Bore Gauge
The Wireless support Pack for Windows®, contains the following WHT specific files:
Wireless Handtool Manager application for Windows PCs (Windows 7 onwards)
This enables users to quickly get up and running and provides access to the full range of commands and provides data logging capability.
The Wireless Handtool Manager’s .NET library is available for linking into user applications
The associated .Net manual is included.
The Handtool can also be controlled directly by a user application using a virtual Com port.
The associated RS232 command list manual is included.
The Configuration Manager application, which allows the WHT passcode to be activated.
WHT Port Testing application & its C# source code are provided.
This demonstrates a reliable way of Bluetooth port opening and closing.
Wireless Multichannel Gauge
The Wireless support Pack for Windows®, contains the following WHT-M specific files:
A Configuration Utility program which simplifies the configuration as well as retrieval of readings from the device.
The source code for this utility program is also provided.
The Software protocol manual for those that wish to write their own programs to communicate with the WHT-M.
The WHT-M Maintenance Tool, which reconfigures the system for replacement probes.
The Configuration Manager application, which allows the WHT-M passcode to be activated.
WHT Port Testing application & its C# source code are provided.
This demonstrates a reliable way of Bluetooth port opening and closing.
The Orbit®3 Support Pack also needs to be installed.
This includes the WHT-M Maintenance manual, which describes:
How to carry out firmware upgrades using the Orbit3 Updater.
Reconfiguring the system for replacement probes, using the included Maintenance Tool.
The support packs both require the Microsoft® .Net Framework 4.0 or newer to be installed on the PC.
Features
10 mm & 6 mm Diameter fixing threads (as used on most popular Gauge Heads)
Up to 0.1 μm resolution (user selectable)
via Class 1 Bluetooth®
Up to 7 WBG connected to a single system
10 hours battery life (based on continuous data transmission)
Fast battery recharge
IP65 protection
Pass/Fail range lamps
Audio indication of data transmission
Wireless Bore Gauge
10 mm and 6 mm diameter fixing threads (as used on most popular gauge heads).
Inductive Charging
10 hours typical battery life before re-charge
Wireless Multichannel Gauge
Up to 8 sensors per head
Inductive Charging
Solartron Wireless support pack sit on top of Orbit® 3 Digital Gauging, displacement and Positioning Network Solartron

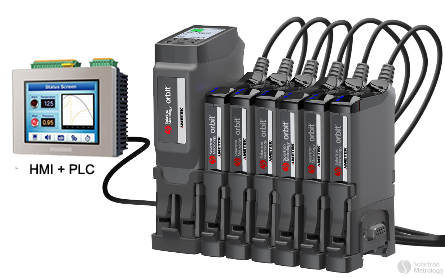

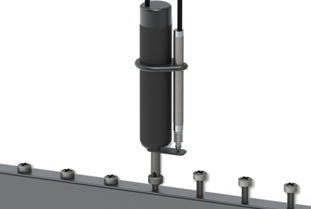

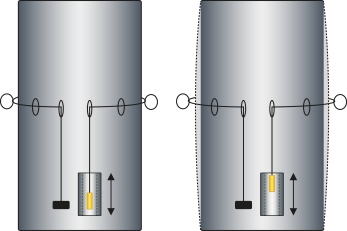

Orbit® Network: A digital measurement system that makes it simple and easy to interconnect high accuracy Solartron instruments and other sensors to your computer, network or PLC.
Calibrated System
Each Solartron probe or instrument is available with a digital module at the end of the cable. Inside the module is a chip that digitizes the analogue signal from the probe. The probe is calibrated and linearized at the Solartron factory, with a guaranteed accuracy of 0.05% of range or 0.2 microns, whichever is greater, 0.15 micron repeatability, and 0.01 micron resolution. You can then master the probe anywhere over its measurement range, and attain the same accuracy from that master point. Solartron also offers a variety of calibrated non-contact Laser sensors available.
Connect to other Sensors

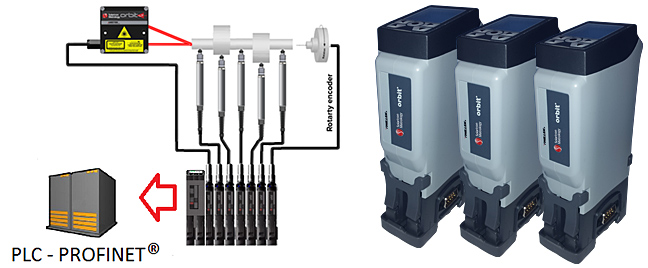

The Orbit® 3 Network will connect to 3rd party sensors via interface modules.
Analogue Interface Module (AIM): Connect to any sensor with a DC or 4-20mA output.
Encoder Input Module, (EIM): Connects with any rotary encoder or other device with a TTL output. With these connections, all readings can be sent to a PLC or PC seamlessly.
Digimatic Input Module: Connects to any Mitutoyo gauge
Digital Input/output Module: An eight-pin module that acts as an I/O interface to a PLC.
The Orbit3 Windows Support Pack enables you to take readings from Orbit Modules forming an Orbit Network and Connect Orbit® to SPC, Excel, or build your own program with the Orbit® Support Pack.
Orbit® 3 means this is third generation running products, field proven…
Features
Windows 10, 8, 7, and XP 64 bit and 32 bit Compatible
Managed Code based on Microsoft .NET Framework
Orbit® Library Tester contains source code for all Orbit® commands which may be used by customers to develop own applications
Language specific programming examples
Orbit3 support hot swap - Allows compatible models to be changed without the need to reconfigure the computer
C#, C++, COM and Excel COM code example available.

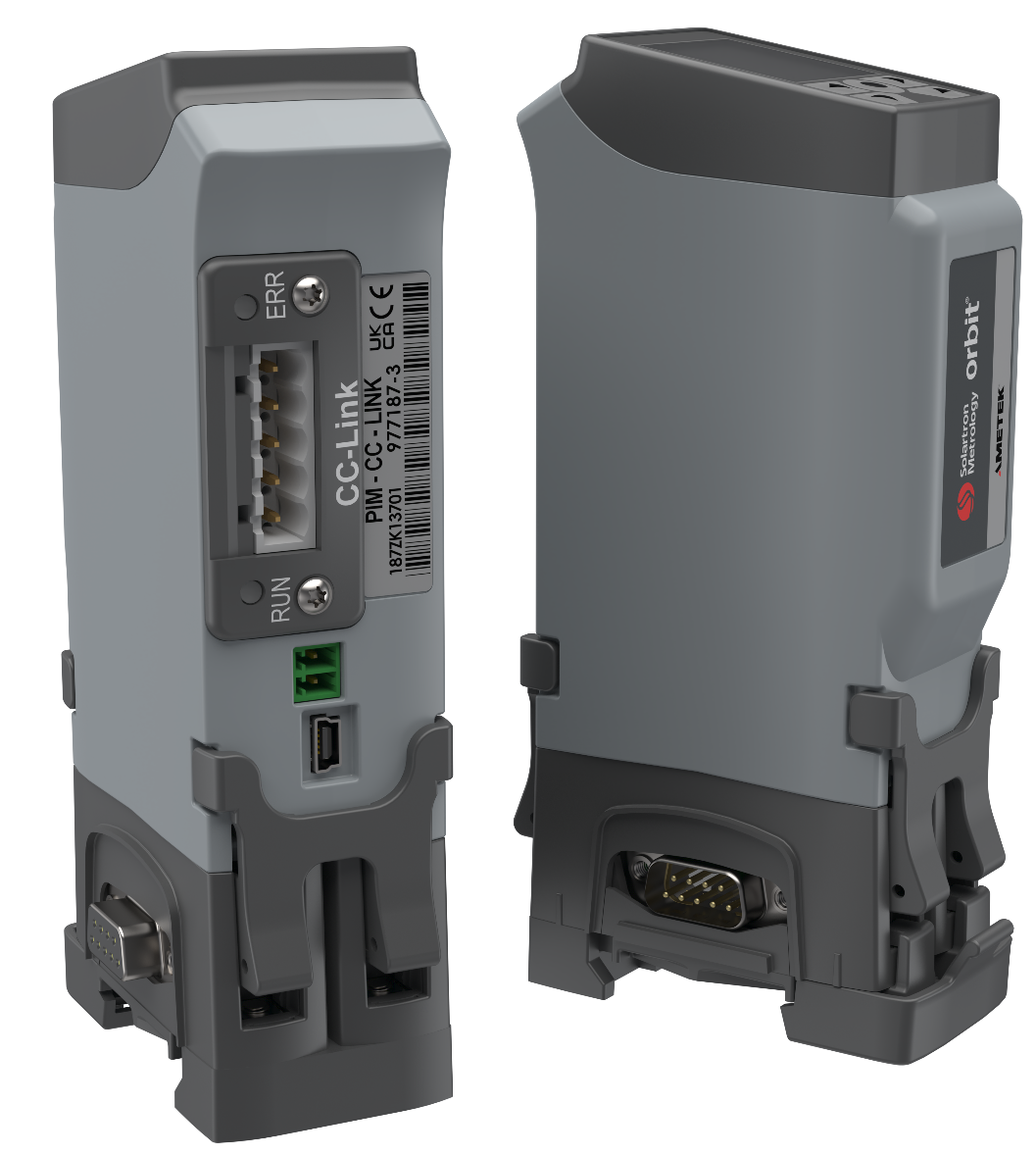

Measurement Interfacing Module
USB 2.0
Ethernet
Bluetooth
RS232C
12Mbps
10/100Mbps
3 Mbps
115.2Kbps
Calibrated System
Each Solartron probe or instrument is available with a digital module at the end of the cable. Inside the module is a chip that digitizes the analogue signal from the probe. The probe is calibrated and linearized at the Solartron factory, with a guaranteed accuracy of 0.05% of range or 0.2 microns, whichever is greater, 0.15 micron repeatability, and 0.01 micron resolution. You can then master the probe anywhere over its measurement range, and attain the same accuracy from that master point. Solartron also offers a variety of calibrated non-contact Laser sensors available.
Connect to other Sensors

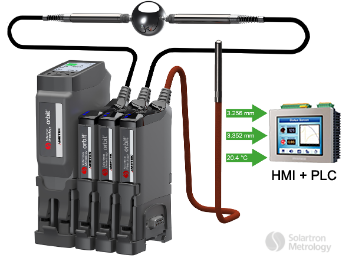

The Orbit® 3 Network will connect to 3rd party sensors via interface modules.
Analogue Interface Module (AIM): Connect to any sensor with a DC or 4-20mA output.
Encoder Input Module, (EIM): Connects with any rotary encoder or other device with a TTL output. With these connections, all readings can be sent to a PLC or PC seamlessly.
Digimatic Input Module: Connects to any Mitutoyo gauge
Digital Input/output Module: An eight-pin module that acts as an I/O interface to a PLC.
The Orbit3 Excel® Add-in enables you to take readings from Orbit Modules forming an Orbit Network and place them in cells of a Microsoft® Excel® spreadsheet.
A big benefit of Excel Add-in as it enable a popularly using commercial software, allows user to modify and setting up the measurement system for their own usage without incurring software programming cost.
Measurement Interfacing Module
USB 2.0
Ethernet
Bluetooth
RS232C
12Mbps
10/100Mbps
3 Mbps
115.2Kbps
Excel Add-in works with Solartron Orbit®3 Digital Gauging, Displacement and Positioning Network

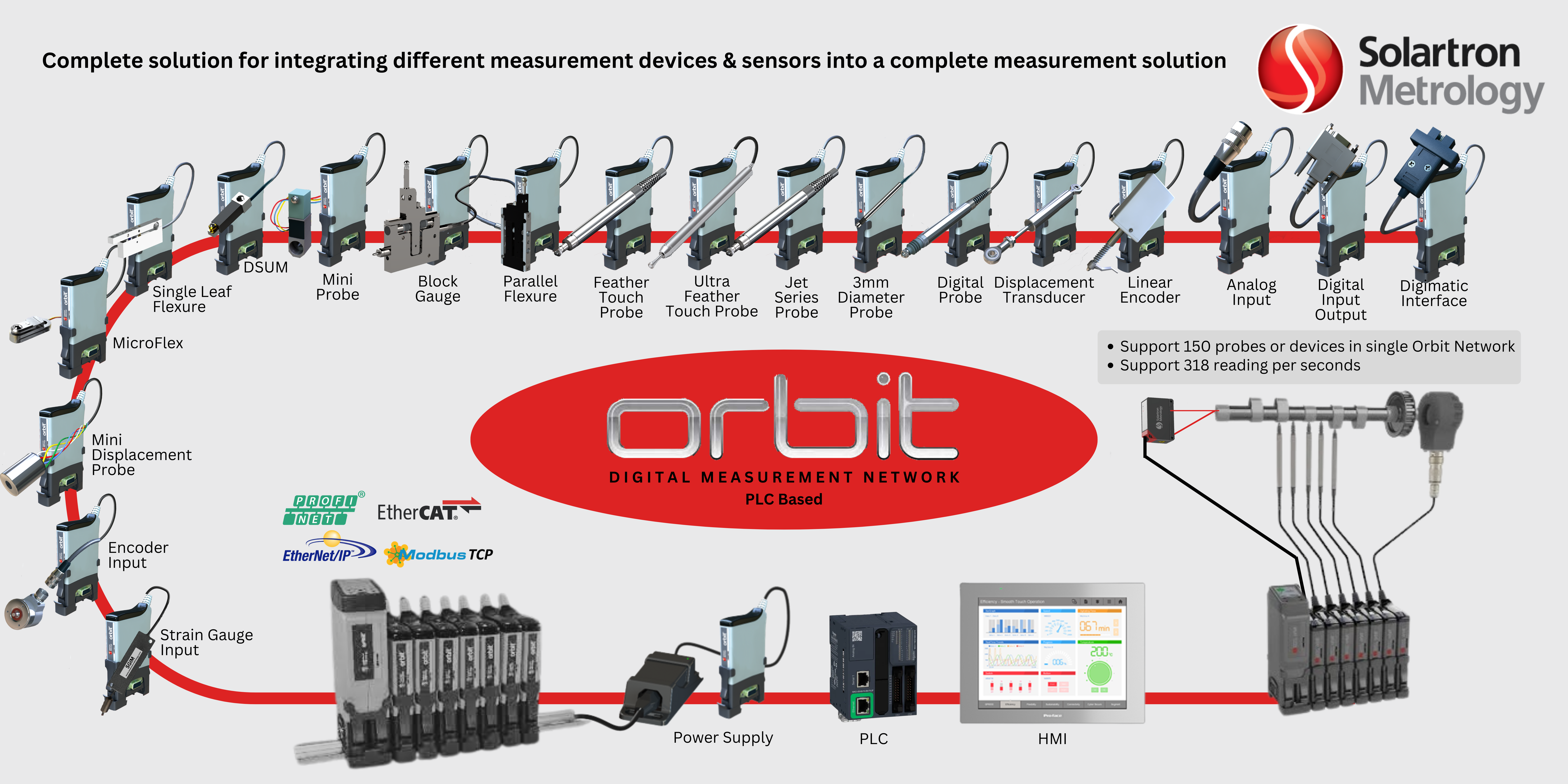

Solartron Orbit® Network: a digital measurement system that makes it simple and easy to inter-connect high accuracy Solartron instruments, and other sensors to your computer, network or PLC.
Calibrated System
Each Solartron probe or instrument is available with a digital module at the end of the cable. Inside the module is a chip that digitizes the analogue signal from the probe. The probe is calibrated and linearized at the Solartron factory, with a guaranteed accuracy of 0.05% of range or 0.2 microns, whichever is greater, 0.15 micron repeatability, and 0.01 micron resolution. You can then master the probe anywhere over its measurement range, and attain the same accuracy from that master point. Solartron also offers a variety of calibrated non-contact Laser sensors available.
Connect to other Sensors

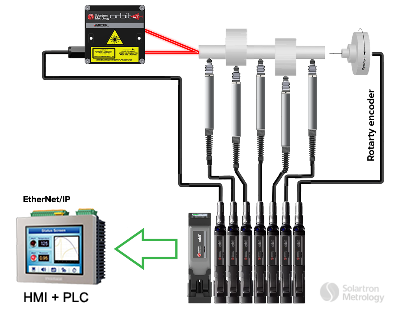

The Orbit® 3 Network will connect to 3rd party sensors via interface modules.
Analogue Interface Module (AIM): Connect to any sensor with a DC or 4-20mA output.
Encoder Input Module, (EIM): Connects with any rotary encoder or other device with a TTL output. With these connections, all readings can be sent to a PLC or PC seamlessly.
Digimatic Input Module: Connects to any Mitutoyo gauge
Digital Input/output Module: An eight-pin module that acts as an I/O interface to a PLC.
Orbit GCS is an advanced gauging tool supplied as a downloadable software pack from the Solartron website. In conjunction with the Orbit® Measurement Network, it can be used to monitor inline and post process manufacturing dimensions and record measurement data. It now includes Diagram and Charting capabilities in which pictures or graphics can be imported and displayed on screen.
Gauging Computer Software (GCS)
Flexible and easy to use. Online training videos available
Simple installation onto any Windows 10 Computer
Interface up to 150 Orbit® Digital Sensors, which includes specialist transducers like Block Gauges, Flexures, Mini Probes, Laser, and Linear Encoder
Data from Solartron’s Wireless Hand Tools can be drawn via the Wireless Communication Module (WCM)
GCS will interface with 3rd party sensors via the Encoder Input Module, Analogue Input Module, Air Gauge Module, and others
Logic functions with control of Input and Outputs via Solartron Digital Input Output Modules (DIOMs)
Log Data to Microsoft Excel ® formatted files for further processing
Upgrade options for Complex Math Formulas, Mastering, Statistical Process Control (SPC), as well as custom Diagrams and Charts
Flexible and easy to use. Online training videos available
Ethernet /IP
