BeanDevice® 2.4GHz INC Wireless inclinometer sensor | tilt / inclination / slope monitoring | Low-cost version |
|||||||||
|
|||||||||
|

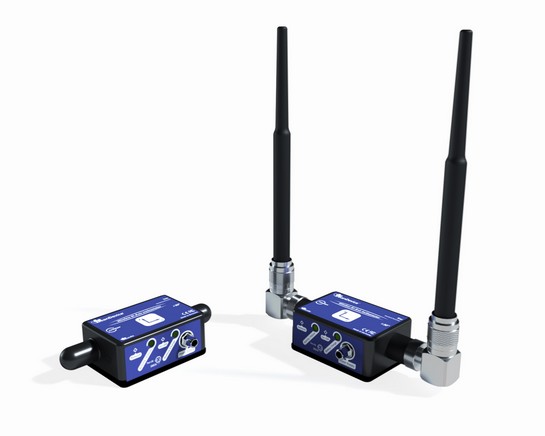

Available in several versions (±30°or ±90° bi-axis), the BeanDevice® 2.4GHz INC is a wireless inclinometer with integrated data logger.

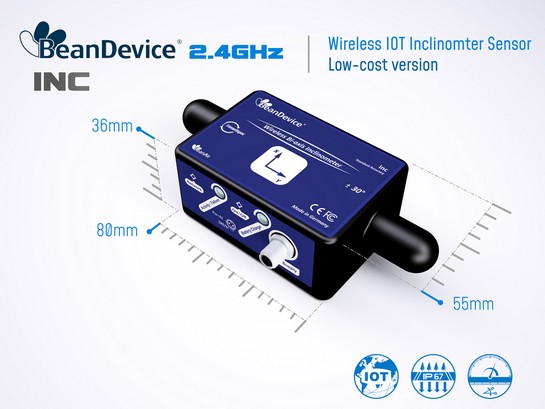

Characterized by a waterproof (IP67/Nema 6) and a lightweight aluminum casing (80x55x36mm, 155g), an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 1 million data logs, as well as a tiny radome omni antenna enabling a maximum wireless range of 500 meters (L.O.S.), this wireless inclinometer is well suited for all types of industrial applications.
While the vast majority of wireless sensors are not suitable for harsh industrial environment, the BeanDevice® 2.4GHz INC integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances. Antenna Diversity improves both the quality and reliability of a wireless link by 30%.
|
|||||||||
|
The combination of a high-performance MEMS inclinometer and a 5th order anti-aliasing filter (remotely programmable by the user) enables a great precision (±0.04° for ±30° version at 25°C).
Our outstanding TimeSync® function allows to reach a time-synchronization of ±2.5ms over the wireless sensor networks. It contributes to enhance user experience about data fusion and modal analysis.

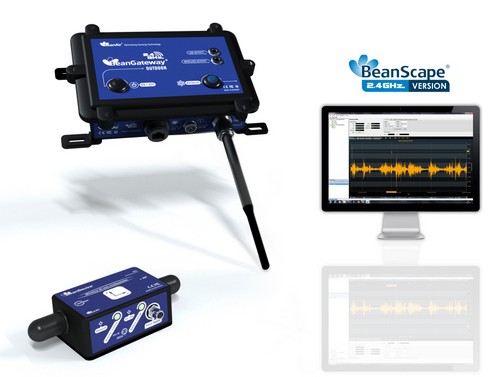

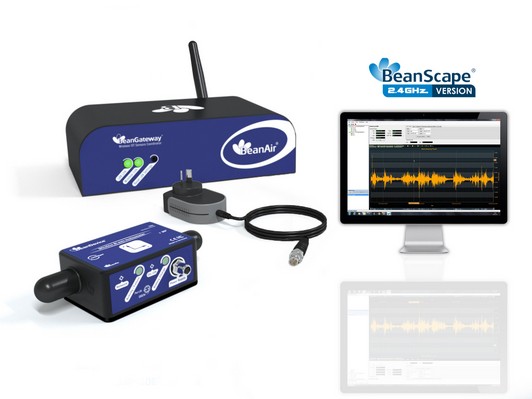

Users looking for a quick and easy integration with a third party software, have choice between ModBus TCP/RTU/ASCII protocol available on our BeanGateway® 2.4GHz
The BeanDevice® 2.4GHz INC is suitable for the following applications:
• Platform Leveling and stabilization
• Built-in test equipment
• Tilt measurement (Building, infrastructure & construction)
• Oil drilling
• Axial rotor measurement
|
|||||||||
