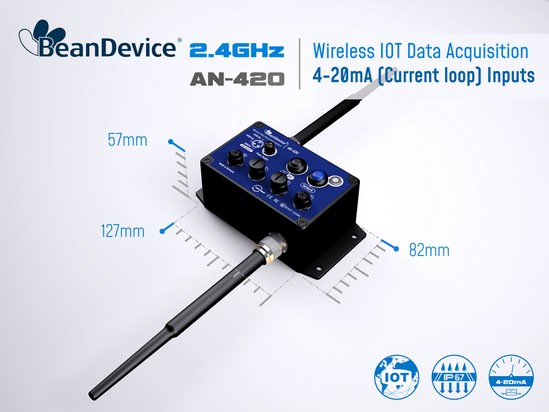

BeanDevice® 2.4GHz AN-420

Wireless IOT Data Acquisition(DAQ) Instrument 4-20mA (current loop) inputs | built-in datalogger

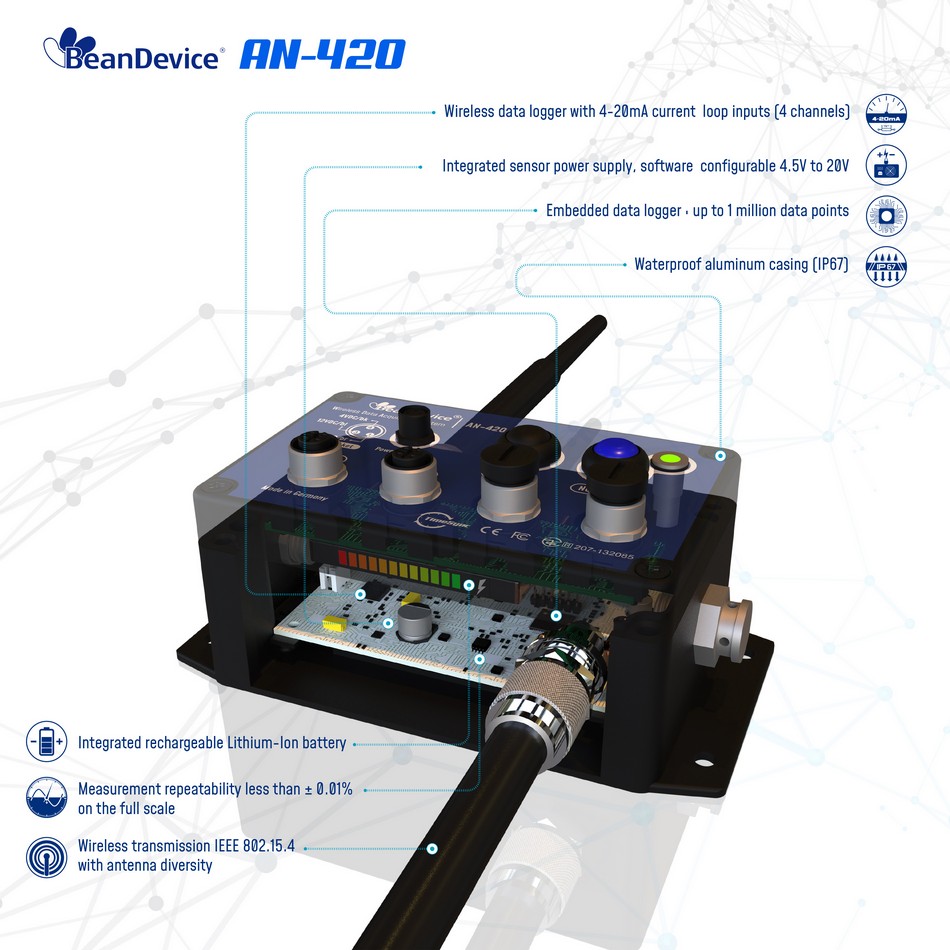

The BeanDevice® AN-420 is a wireless IOT data acquisition instrument with 4-20 mA current loop inputs.Special care is taken in the analog signal conditioner designwith a measurement repeatability of ±0.01% (Full Scale, @25°C, both Static and Dynamic measurement mode) and a dynamic range of 16-bit.

External analog sensor can be directly powered by a high precision and adjustable DC/DC converter integrated inside the device. The excitation voltage is remotely configurable through the BeanScape® (4.5 to 20V).

Characterized by a waterproof (IP67/NEMA6) and rugged aluminum enclosure, an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 1 million data logs, as well as a maximum wireless range of 650 meters (Line of Sight), this wireless device is well suited for all types of industrial applications.

While the vast majority of wireless sensors are not adapted for harsh industrial environment, the BeanDevice® AN-420 integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances. Antenna diversity improves both the quality and reliability of a wireless link by 30%.

Users looking for a quick and easy integration with a third party software, have choice between ModBus TCP/RTU/ASCII protocol available on our BeanGateway®

The BeanDevice® 2.4GHz AN-420 is suitable for the following applications:

• Remote monitoring

• Built-in test Equipment

• Condition monitoring

• Structural Health Monitoring (SHM)

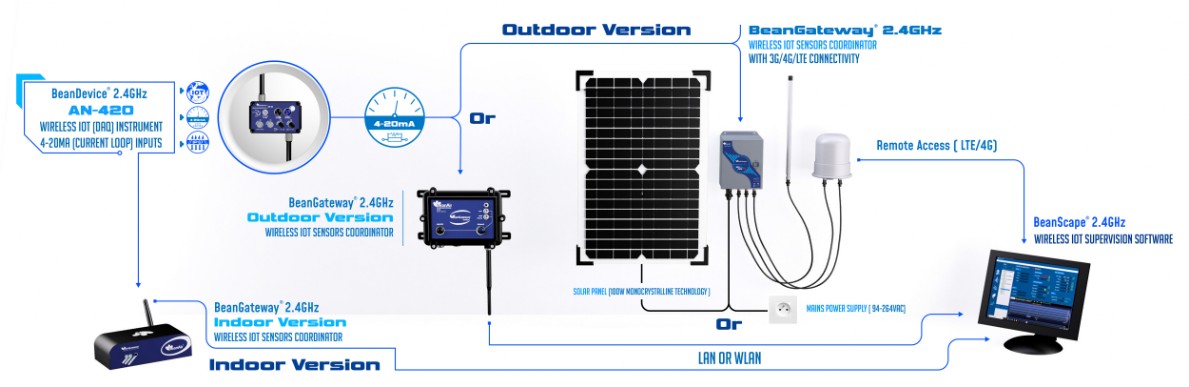

Enable a quick and reliable remote access thanks to our BeanGateway® With 4G Connectivity
