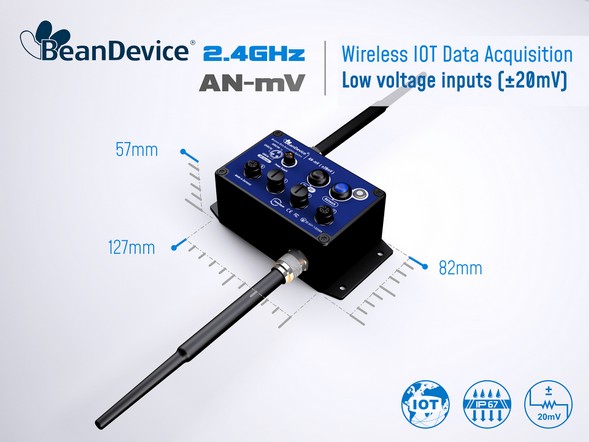

BeanDevice® 2.4GHz AN-mV Wireless IOT Data Acquisition (DAQ) Instrument | Low voltage inputs (±20mV) | built-in datalogger |
|||
|
|||
|
The BeanDevice® AN-mV is a wireless IOT data acquisition instrument with analog voltage inputs (±20mV). Special care is taken in the analog signal conditioner design with a measurement repeatability of ±0.025% (Full Scale, @25°C, both Static measurement mode) and a dynamic range of 16-bit.
External analog sensor can be directly powered by a high precision and adjustable DC/DC converter integrated inside the device. The excitation voltage is remotely configurable through the BeanScape® 2.4GHz (4.5 to 20V).
Characterized by a waterproof (IP67/NEMA6) and rugged aluminum enclosure, an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 1 million data logs, as well as a maximum wireless range of 650 meters (Line of Sight), this wireless device is well suited for all types of industrial applications.
|
|||
|
While the vast majority of wireless sensors show their limits in harsh industrial environment, the BeanDevice®2.4GHz AN-mV integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances. Antenna diversity improves both the quality and reliability of a wireless link by 30%.
Our outstanding TimeSync® function allows to reach a time-synchronization of ±2.5ms over the wireless sensor networks. It contributes to enhance user experience about data fusion and modal analysis.
Users looking for a quick and easy integration with a third party software, have choice between ModBus TCP/RTU/ASCII protocol available on our BeanGateway® 2.4GHz
The BeanDevice® 2.4GHz AN-mV is suitable for the following applications:
• Remote monitoring
• Built-in test Equipment
|
|||
|
Enable a quick and reliable remote access thanks to our BeanGateway® With 4G Connectivity
|
|||
 |
|||
