Supervision Software dedicated to Wireless IOT Sensors | Wilow® Line

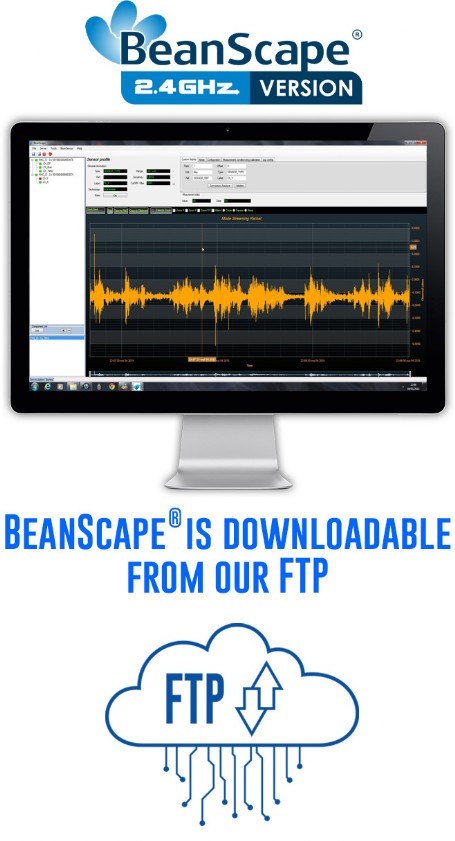

The BeanScape® 2.4GHz is a real time Wireless IOT Sensors supervision and control monitor. It allows the user to monitor and operate in real time BeanAir® Wireless IOT Sensors. The BeanScape® 2.4GHz is also equipped with a smart expert system that allows users to interpret elements such as data acquisition or alarms related to the sensor network.

BeanScape® 2.4GHz comes with outstanding features:

• Supervision software fully dedicated to Beanair® Wireless IOT Sensors

• Fully integrated Wireless IOT Sensors maintenance tool

• User friendly and highly adaptable to user’s environment

• Highly intuitive and easy to use GUI (Graphical User Interface)

• Real time integrated database

• For user working on building and ground vibration (Ref. sensor: BeanDevice® AX-3D and BeanDevice® AX-3D Xrange), the BeanScape® (except Manager and Basic) provides advanced vibration analysis tools:

- Real-Time vibration and Velocity display

- Advanced vibration analysis tool: FFT, PPV (Peak Particle Velocity), Velocity

- Automatic FFT (with PPV values) and Velocity reports (meeting the DIN4150-3 standard)

- Alarm and reports notifications by email when a trigger is reached

• Simultaneous Multi-Wireless IOT Sensors handling (can be connected to several BeanGateway®)

• Highly customizable data panel board

• No hidden fees, and no specific subscription

Several versions are available:

• BeanScape® 2.4GHz Manager: free of cost, no real-time measurement display

• BeanScape® 2.4GHz Basic: can manage 1 Wireless IOT Sensors, real-time measurement display

• BeanScape® 2.4GHz Premium: same features than BeanScape® 2.4GHz Basic, can manage several Wireless IOT Sensors, advanced vibration analysis tools (Real-Time Velocity and FFT, PPV values)

Comparative Table

Features
Number of managed BeanDevice® 2.4GHz	5	35	35	Unlimited
Multiple BeanGateway (Wireless IOT Gateway) connections	No	No	No	Yes
Period technical assistance (e-mail)	1 month	1 month	1 year	1 year
OPC Server DA	No	No	No	No
Free of cost ?	Yes	Yes	No	No
Real-time graph display	Yes	No	Yes	Yes
Alarm notification by email: System and Data Acquisition alarms	No	No	Yes	Yes
Streaming with Event-Trigger (S.E.T.) mode	No	No	Yes	Yes
FTP client	No	No	No	Yes
NTP client	No	No	Yes	Yes
Real-Time FFT, Real-Time Velocity	No	No	No	Yes
Automatic Reports (Waveform , FFT, PPV, Velocity)	No	No	Only Waveform report	Yes
Multi-user access	No	No	No	No
Free updates	Yes	Yes	1 year	1 year
