ProfiMessage - Flexible and effective use


Whether in the control cabinet, in the measuring case or directly in the laboratory: the ProfiMessage and ProfiLab devices always provide you with the right solutions. While the ProfiMessage device is designed for mounting on the C-rail, the ProfiLab device with its 4 mm laboratory sockets offers the ideal connection for use in the laboratory environment. Apart from the housing and connection technology, both devices are identical in design and function - so you get full performance and functionality in every case.


Modular system for use as a measuring, control and monitoring device.

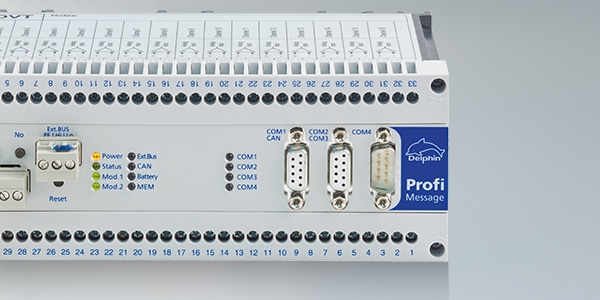

ProfiMessage - for industry
Modular system for use as a measuring, control and monitoring device.

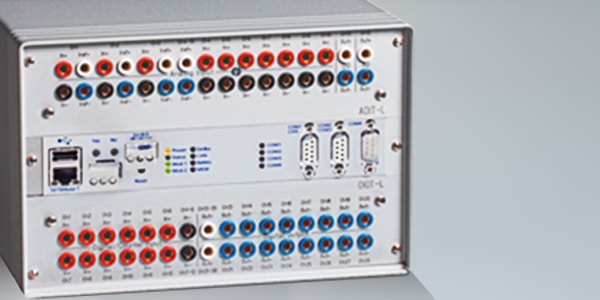

ProfiLab - for laboratory and mobile applications

I/O-Modules Analog inputs Analog outputs Frequencies / Status inputs Status inputs Switch outputs Total sampling rate
ADGT 8 channels, V /mV, 20 mA, RTD, thermocouples 60 Hz
ADIT 10 channels, V / mV, 20 mA, RTD, thermocouples 1 channel 20 mA 1 channel 600 Hz
ADVT 15 channels, V / mV, 20 mA, thermocouples 600 Hz
AAST 4 channels, V /mV, 20 mA, RTD, thermocouples 4 channels 20 mA 2 channels 2 channels 600 Hz
IOIT 24 channels 1 channel
OTPT 1 channel 24 channels
DIOT 11 channels 1 channel 16 channels
