TS 100

DOWNLOADS

OVERVIEW

Features

Temperature measuring range: -50 … 150°C
Operating temperature: -25 … 85°C
Process temperature: -50 … 150°C
Output signal: 0 … 5 / 0 … 10 VDC, 0 … 20 / 4 … 20 mA
Materials: Stainless steel
850 bar compression proofed

Customer benefits

Temperature measuring range: -50 … 150°C
Operating temperature: -25 … 85°C
Process temperature: -50 … 150°C
Output signal: 0 … 5 / 0 … 10 VDC, 0 … 20 / 4 … 20 mA
Materials: Stainless steel
850 bar compression proofed

SPECIFICATIONS

Temperature measuring range


Standard, (1)	0 ... 70°C
Lower end of range	-50°C
Upper end of range	150°C
Temperature span, (2)	> 30°C
Accuracy, (3)
-25 ... 85°C	≤ ± 1.5°C
-50 ... 150°C	≤ ± 2°C
0 ... 70°C	≤ ± 1°C

Temperature and pressure range


Operating range	0 ... 850 bar
Operating temperature	-25 ... 85°C
Process temperature	-50 ... 150°C
Storage temperature	-25 ... 85°C

Electrical specifications

	4 ... 20 mA	0 ... 20 mA	0 ... 5 V / 0 ... 10 V
Power supply	9 ... 33 VDC	15 ... 30 VDC	15 ... 30 VDC
Supply influence	< 0.1% FS	< 0.1% FS	< 0.1% FS
Current consumption

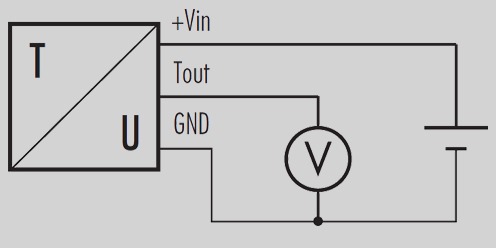

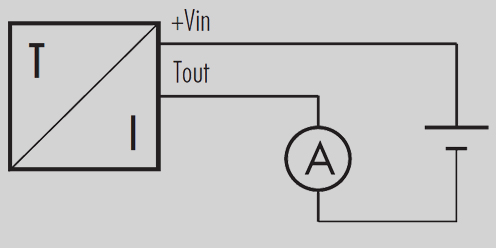

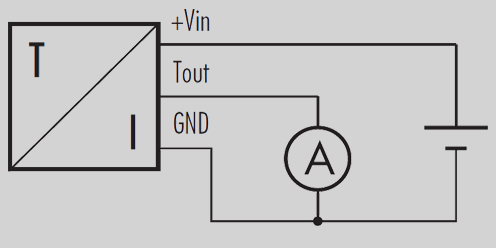

Circuit diagram

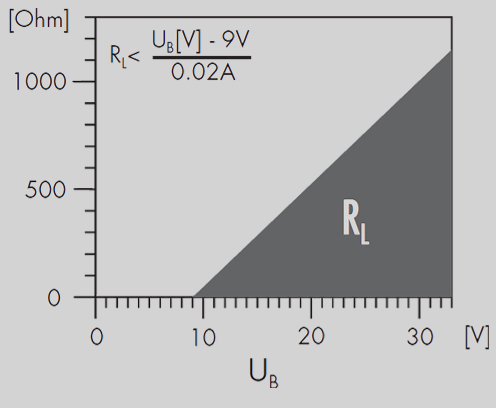

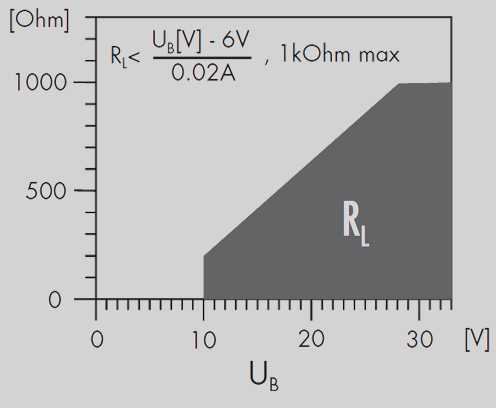

Load resistance
Load influence	< 0.1% FS	< 0.1% FS	< 0.1% FS

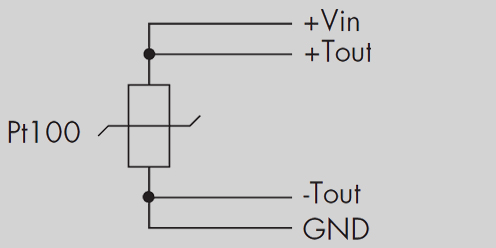

4 wires (passive)

Physical specifications
