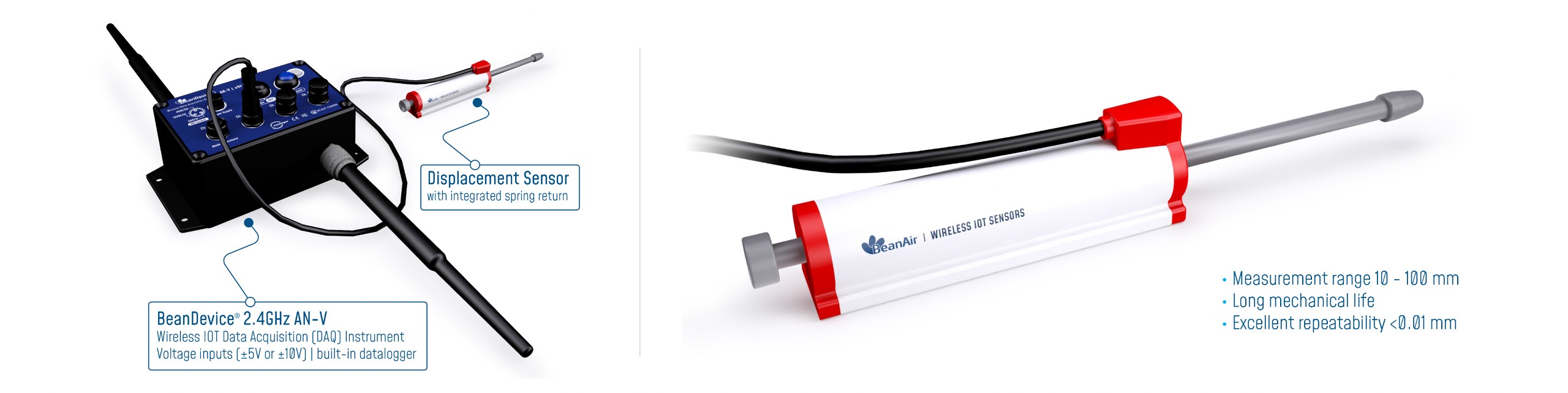

Displacement Sensors compatible with Beandevice® 2.4GHz | AN-V

Product reference

DISP-SENS-SR-MS-YY-CL-XX

MS-YY - Measurement stroke

10mm, 25mm, 50mm, 75mm and 100 mm

CL-XX– SENSOR CABLE LENGTH

from 1m to 20 meters

Example: DISP-SENS-SR-MS-50MM-CL-10M Displacement sensor with spring return, Measurement stroke 50mm, Cable length 10 meters

Displacement sensor specifications
Sensor technology	Linear potentiometer with spring return
Measurement stroke	10mm to 100mm
Linearity	±0.2% ( 75-100 mm) , ±0.5% (< 75mm)
Repeatability	< 0.01mm
Resolution	related to Beandevice® AN-V precision, 0.01%
Resistance	2 kOhm: 10….50mm 5 kOhm : 75….100mm
Max Voltage	28VDC . Can be directly powered from BeanDevice® AN-V, recommended power voltage 5VDC ( BeanDevice® AN-V ±5V) or 10VDC ( BeanDevice® AN-V ±10V)
Displacement speed	< 5m/s
Mechanical Life	100 millions movements

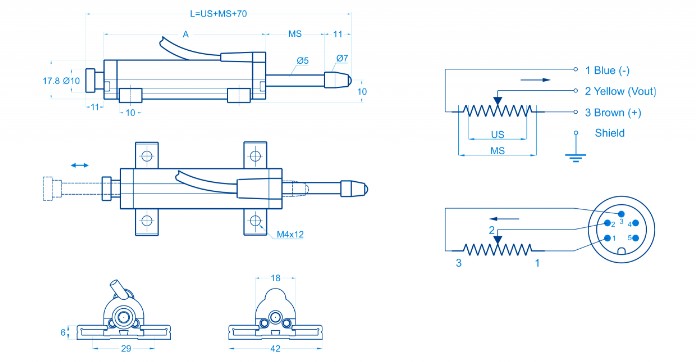

Casing dimensions	18 mm of diameter
Casing material	Anodized Aluminum
Rod material	stainless steel
Rod diameter	5 mm of diameter
Mechanical mounting	Variable brackets
Waterproofness	IP65
Operating Temperature	-20°C to +80°C
Connection Plug	M12-4pins Plug Waterproof IP67
Beandevice Compatibility	compatible with BeanDevice® 2.4GHz AN-V ±5V and ±10V
