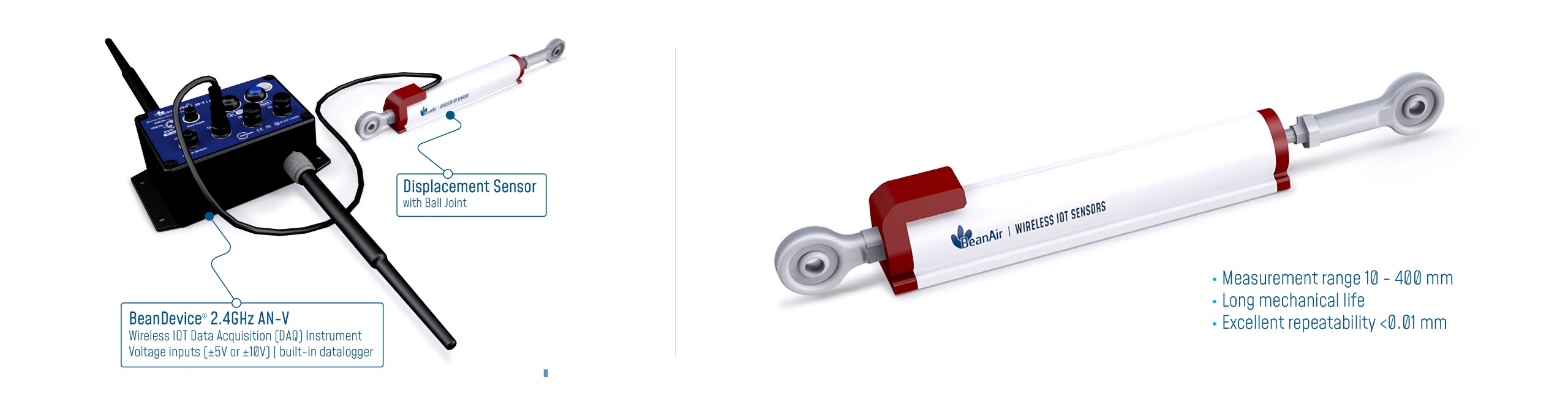

Displacement Sensors compatible with Beandevice® 2.4GHz | AN-V

Product reference

DISP-SENS-BJ-MS-YY-CL-XX

MS-YY - Measurement stroke

10mm, 25mm, 50mm, 75mm, 100 mm, 125 mm, 150 mm, 175 mm, 200 mm, 250 mm, 300 mm, 350 mm, 400 mm

CL-XX– SENSOR CABLE LENGTH

from 1m to 20 meters

Example: DISP-SENS-BJ-MS-100MM-CL-10M Displacement sensor with ball joint, Measurement stroke 100mm, Cable length 10 meters

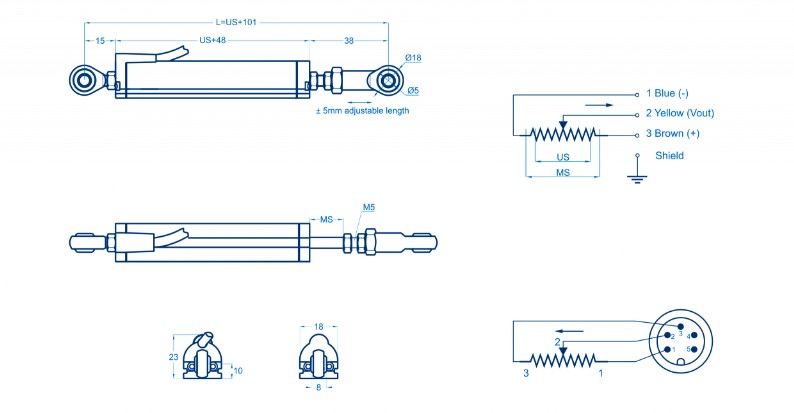

Displacement sensor specifications
Sensor technology	Linear potentiometer with ball joints on both sides
Measurement stroke	10mm to 400mm
Linearity	±0.05% ( >200 mm) , ±0.1% (130-200mm) ±0.2% (75-130mm), ±0.5% (<75mm)
Repeatability	< 0.01mm
Resolution	related to Beandevice® AN-V precision, 0.01%
Resistance	2 kOhm: 10….50mm 5 kOhm : 75….400mm
Max Voltage	28VDC . Can be directly powered from BeanDevice® AN-V, recommended power voltage 5VDC ( BeanDevice® AN-V ±5V) or 10VDC ( BeanDevice® AN-V ±10V)
Displacement speed	< 5m/s
Mechanical Life	100 millions movements
Casing dimensions	18 mm of diameter
Casing material	Anodized Aluminum
Rod material	stainless steel
Rod diameter	5 mm of diameter
Mechanical mounting	ball joints on both sides
Waterproofness	IP66
Operating Temperature	-20°C to +80°C
Connection Plug	M12-4pins Plug Waterproof IP67
Beandevice Compatibility	compatible with BeanDevice® 2.4GHz AN-V ±5V and ±10V
