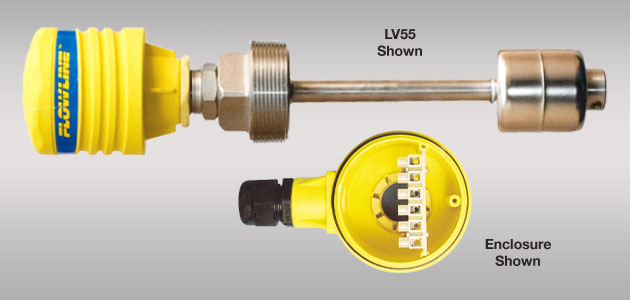

FloaTek™ LV55 Float Level Transmitter

DOWNLOADS

Application

The general purpose float level transmitter provides continuous level measurement up to 6.5’ (2m) with a 4-20 mA signal output, and is factory configured to your selected dimension. This stainless steel liquid level sensor is well suited for high temperature or pressure tank level applications with relatively clean liquids such as water, diluted chemicals and light weight oils. Application examples include boilers and process vessels.

Features

Level measurement solution for high temperature or pressure

Rugged 316 stainless steel float guide and process mounting plug

Assembled to your guide length and measurement span dimensions

PP junction box rated NEMA 4X with conduit port and terminal strip

Specifications

Range:	12” to 6.5’ (30cm to 2m)
Resolution	1/4”
Configuration:	None, fixed span
Orientation:	± 30° from vertical
Specific gravity:	0.55 minimum
Supply voltage:	10 to 30 VDC
Loop resist.:	600 Ohms @ 24 VDC
Signal output:	4-20 mA, two-wire
Process temp.:	F: -40° to 185°, C: -40° to 85°
Ambient temp.:	F: -40° to 140°, C: -40° to 60°
Pressure:	200 psi (13.8 bar)
Enclosure rating:	NEMA 4X (IP65)
Enclosure mat.:	PP, UL94VO
Conduit entrance:	Single, 1/2” NPT
Process mount:	2” NPT
Guide-float mat.:	316 SS
Classification:	General purpose
Compliance:	CE
