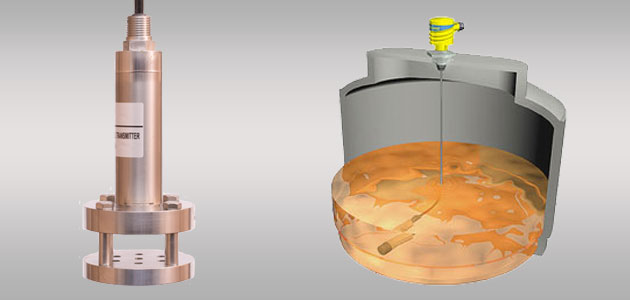

DeltaSpan™ LD32 Submersible Pressure Level Transmitter

Application

The general purpose LD32 submersible pressure level transmitter provides continuous level measurement up to 46' (14m) of water column with a 4-20 mA signal output. Select the LD32 liquid level sensor for dirty, foaming or slurry type liquids. Application examples include municipal sewer or storm pump lift stations.

Features

Corrosion resistant 316 SS body with polyurethane or ETFE cable

Strong cable design with maintenance free breather tube and vent filter

Automatic temperature compensation for accurate measurement

Rugged clog and damage resistant diaphragm design

Specifications

Range:	-SX01: 0 to 5 psi (0.34 bar), 0 to 11' (0 to 3.4m) wc -SX11: 0 to 10 psi (0.69 bar), 0 to 23' (0 to 7m) wc -SX21: 0 to 15 psi (1.0 bar), 0 to 34' (0 to 10.4m) wc -SX31: 0 to 20 psi (1.38 bar), 0 to 46' (0 to 14m) wc
Accuracy:	± 0.25% of full scale
Configuration:	None, fixed span
Supply voltage:	13 to 30 VDC
Loop resist.:	900 Ohms
Signal output:	4-20 mA, two-wire
Process temp.:	F: 0° to 200° C: -18° to 93°
Temp. comp.:	F: 0° to 180° C: -18° to 82°
Proof pressure:	2 x full scale
Trans. material:	316 SS, 316L SS & Buna-N
Trans. thread:	1/2" NPT
Cable type:	2-conductor, shielded with vent tube
Cable material:	-S1X1: Polyurethane -S2X1: ETFE
Classification:	General purpose
