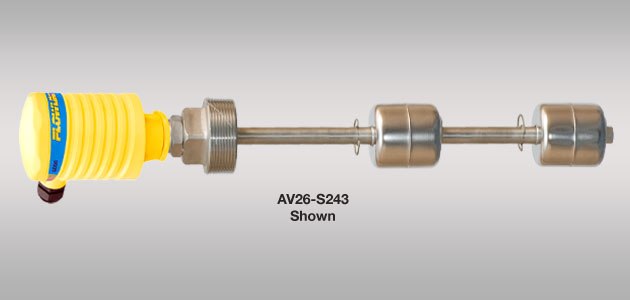

Float-Point™ AVX6 with Compact Junction Box

Application

The general purpose level float switch package provides reliable, multi-point liquid level detection of relatively clean liquids such as water, diluted chemicals and light weight oils up to 8’ (2.44m) with 1-5 reed switch outputs and a compact junction box for integral wiring termination. The stainless steel level float switch is selected for high temperature or pressure process tank level applications.

Features

Multi-point float level switch solution for high temp and pressure

60VA dry contacts connect directly to a PLC or relay controller

Rugged 316 stainless steel float, guide and mounting plug

PP enclosure rated NEMA 4X with swivel base for conduit alignment

Assembled to your guide length and switch set point dimensions

Specifications

Length:	3” to 8’ (7.6cm to 2.4m)
Accuracy:	± 3mm in water
Repeatability:	± 1 mm in water
Specific gravity:	0.55 minimum
Orientation:	± 20° vertical
Switch points::	1-5 (factory set)
Contact type:	SPST reed(s)
Contact rating:	240 VAC / VDC @ 60 VA
Contact output:	Normally open
Process temp.:	F: -40° to 392°, C: -40° to 200°
Ambient temp.:	F: -40° to 140°, C: -40° to 60°
Installed height:	6” (15.2 cm))
Pressure:	200 psi (13.8 bar)
Enclosure rating:	NEMA 4X (IP65)
Enclosure mat.:	PP, UL94VO
Terminal strip:	12-pole, socket
Wire type:	3-12 wire, #18 AWG
Conduit entrance:	1/2” NPT
Wetted material:	316 SS
Process mount:	2” NPT
Classification:	General purpose
Compliance:	CE, RoHS
Approvals:	UL
