Application 135

Jet Parachute Deployment

Application Summary

Military aircrafts deploy parachutes for rapid decrease of speed upon landing. Utilizing Miniature Threaded In Line Load Cells allows test engines to audit the force applied to that parachute or structure of aircraft.



Products in Use

Miniature Threaded In Line Load Cells (Standard LCM Family or customized).

 Jet Parachute Deployment

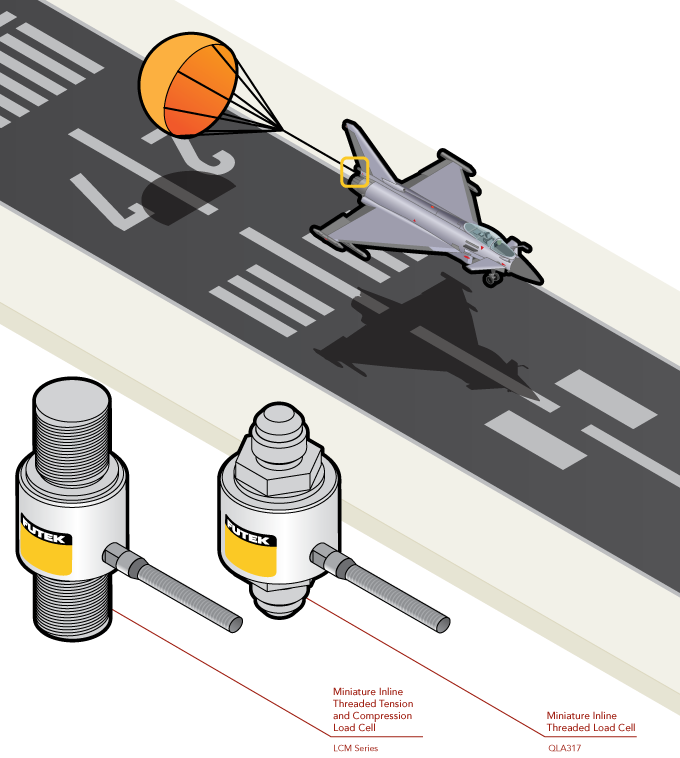

Load Cell - Jet Parachute Deployment
How it Works
  1. When runway length is tight, military aircrafts deploy parachutes to assist in rapid deceleration.
  2. These parachutes require extensive precision and endurance (fatigue) testing prior to use.
  3. Utilizing either standard or customized Miniature Threaded In Line Load Cells in a wire tension measurement application allow quality inspection engineers to audit the tensile forces applied to the parachute cable throughout deployment and use.
  4. These tensile forces can be read on a number of instruments, including our digital displays (IHH500 or IPM650) or streamed to a PC via our USB Solutions.
Load Cell - LCM SERIES - Miniature Threaded In Line Load Cell Series
LCM SERIES
Miniature Threaded In Line Load Cell Series
Load Cell - IHH500 - Intelligent Digital Hand Held Display
IHH500
Intelligent Digital Hand Held Display
Load Cell - IPM650 - Panel Mount Display
IPM650
Panel Mount Display
Load Cell - USB Solutions - High Resolution USB Output Module
USB SOLUTIONS
High Resolution USB Output Module
