Application 138

Precision "Feast" Measurement Scale/Platform

Application Summary

Precision scale platforms require the most-accurate load measurements. In celebration of the Thanksgiving Holiday, FUTEK utilized four overload-protected low profile load cells to weigh the coveted turkey dinner.



Products in Use

Low Profile Load Cell Tension and Compression (LRF Family) paired with FUTEK's IAC200 2–4 Channel Summing Junction Box alongside the IHH500 or IPM650.

Load Cell - Precision
How it Works
  1. Precision scales require high-accuracy, compression load cells.

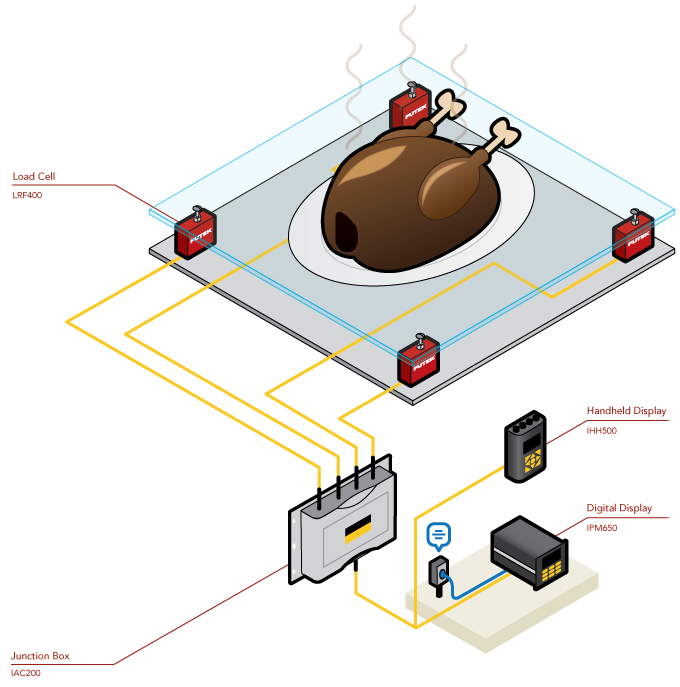

  2. In the above illustration, FUTEK celebrated the Thanksgiving Holiday by conceptually showing how our LRF Series Low Profile Load Cell Tension and Compression can be used to create a meticulous feedback system.
  3. Mounted to all four corners of the platform, these load cells (equipped with overload protection) will measure the weight (load) of whichever "feast" item happens to be placed upon it.
  4. As the load fluctuates, FUTEK's IAC200 2–4 Channel Summing Junction Box will collect the individual load cell measurements, sending the final weigh-in to either our IHH500 Intelligent Digital Hand Held Display or IPM650 Panel Mount Display.
  5. Watch the IPM650's extraordinary performance and resolution here.
Load Cell - LRF SERIES - Low Profile Load Cell Tension and Compression
LRF SERIES
Low Profile Load Cell Tension and Compression
Load Cell - IAC200 - 2–4 Channel Summing Junction Box
IAC200
2–4 Channel Summing Junction Box
Load Cell - IHH500 - Intelligent Digital Hand Held Display
IHH500
Intelligent Digital Hand Held Display
Load Cell - IPM650 - Panel Mount Display
IPM650
Panel Mount Display
