Application 142

Reliability Test Stand

Application Summary

Since 2001, FUTEK has been performing an extensive reliability fatigue test on our LSB302 S Beam Tension and Compression Load Cell.

Products in Use

One S Beam Tension and Compression Load Cell (LSB302) paired with Instrumentation (USB Solutions, IPM650 Panel Mount Display, IHH500 Intelligent Digital Hand Held Display, or IAA Series Analog Amplifier).

 Reliability Test Stand

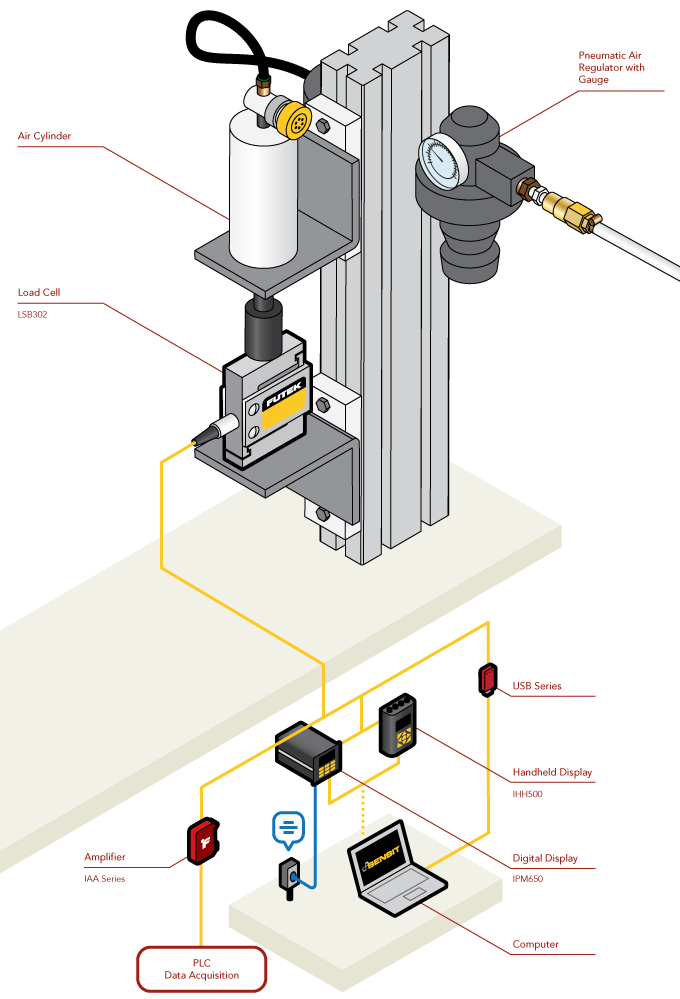

Load Cell - Reliability Test Stand
How it Works
  1. FUTEK constructed a pneumatic test stand to extensively test the fatigue rate of our LSB302 S Beam Tension and Compression Load Cell.
  2. We began this test in 2001 to decipher the life expectancy of our S-Beam unit.
  3. The pneumatic cylinder delivers the compressive force of 113 lb. at 196,120 times a day.
  4. It is important to note that this particular load cell has a capacity of 100 lb.; therefore, we have been overloading this sensor for almost 15 years to demonstrate the high performance and quality of our product.
Load Cell - LSB302 - S Beam Tension and Compression Load Cell
LSB302
S Beam Tension and Compression Load Cell
Load Cell - USB Solutions - High Resolution USB Output Module
USB SOLUTIONS
High Resolution USB Output Module
Load Cell - IHH500 - Intelligent Digital Hand Held Display
IHH500
Intelligent Digital Hand Held Display
Load Cell - IPM650 - Panel Mount Display
IPM650
Panel Mount Display
Load Cell - IAA Series - Analog Amplifier
IAA SERIES
Analog Amplifier
