Overview | Features | Specifications | SENSIT Software | USB Sensors | Applications

 Select Model : USB210 | USB220 | USB230 | USB320 | Compare Models

  • Features
  • USB 2.0 Communication Link
  • USB Bus-Powered (5V)
  • Integrated Shunt Cal
  • Input /Output Short Circuit Protection
  • Blinking Blue LED Indicator (10 Hz): Module Auto-Calibration
  • Blinking Blue LED Indicator (1 Hz): Module Normal Operation
  • Green LED Indicator: USB Power
  • Red LED Indicator: USB Data Link
 usb-specifications

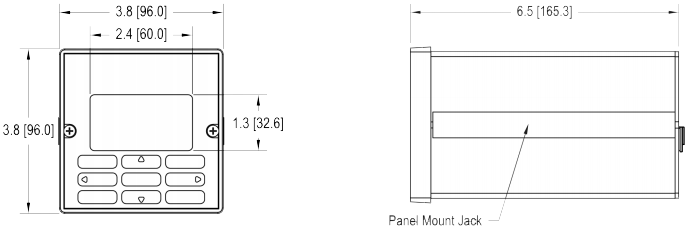

diagrams-specifications

  • Specifications
  • Bridge Excitation: 4.5 VDC
  • Sampling Rate: Up to 1,000 Samples per
    Second
  • Internal Resolution: 24 Bits
  • Standard Input Range: +/- 4 mV/V
  • Optional Input Range up to: +/- 500 mV/V
  • Resolution (Noise Free): See Chart
  • Nonlinearity: 0.001% of FSR
  • Accuracy: 0.001% of FSH
  • Input: Non-Amplified (mV/V) Analog Voltage
  • Output: Digital Packetized Data
  • Min. Bridge Resistance: 50 Ohm
  • Max. Bridge Resistance: 5,000 Ohm
  • Integrated Digital Filter: 50 Hz / 60 Hz rejection
    (100 dB)
  • One Chip Memory: 1 Kilobyte
  • Up to 15 Point Stored Calibration
  • Weight: 10 grams
  • Environment
  • Operating Temperature: -13°F to 185°F [-25°C to 85°C]
  • Storage Temperature: -40°F to 257°F [-40°C to 125°C]
  • Accessories
  • SENSIT Test & Measurement Software
  • Connector Plug Kit
