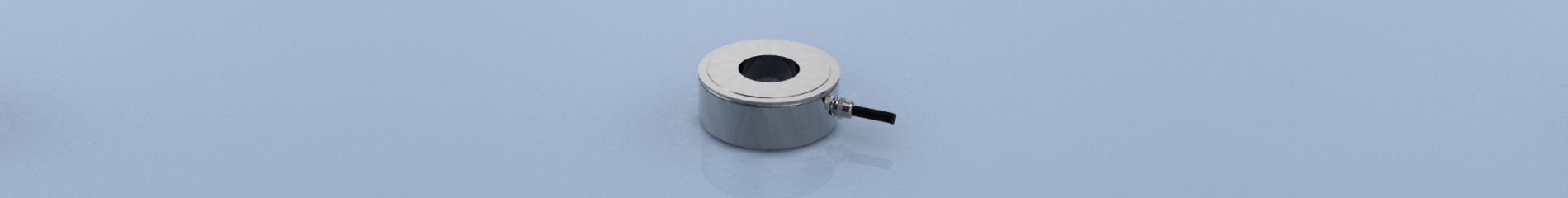

WAS Force Washer Through Hole Load Cell




Description



The WAS range of load cells from LCM Systems have been specifically designed for applications where there is a requirement for the force application component to pass through the centre of the load cell. This style of product is often referred to by different names, including annular load cells, force washers, donut load cells, through hole load cells etc.

The main application for the WAS series is measuring the tension in bolts for safety monitoring and control or general quality control. They are also used in cable tension measurement applications where the load cell is mounted at the anchor point. LCM Systems specialise in the design of custom load cells, so have also been heavily involved in designing similar products for rock anchor force measurement, fork lift truck weighing, and tie rod tension monitoring.

If you have a requirement for an annular or through-hole load cell that can not be satisfied with the standard WAS series, then contact our sales department with your requirement, who will do their best to solve your application problem for you.

The WAS series can be supplied as a stand alone product or be incorporated into an instrumentation package, to meet your specific application requirements.



Features



  •  Environmentally sealed to IP66
  •  Higher Accuracy versions available
  •  Many other variants may be available
  •  Rating from 12.5kN to 540kN
  •  Special Sizes and ranges available
  •  Stainless Steel Construction
  •  Washer/through hole load cell

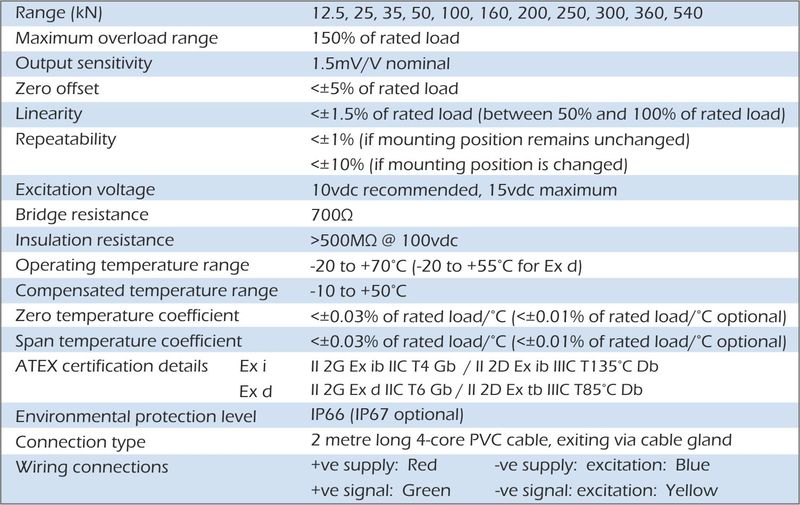

Specification

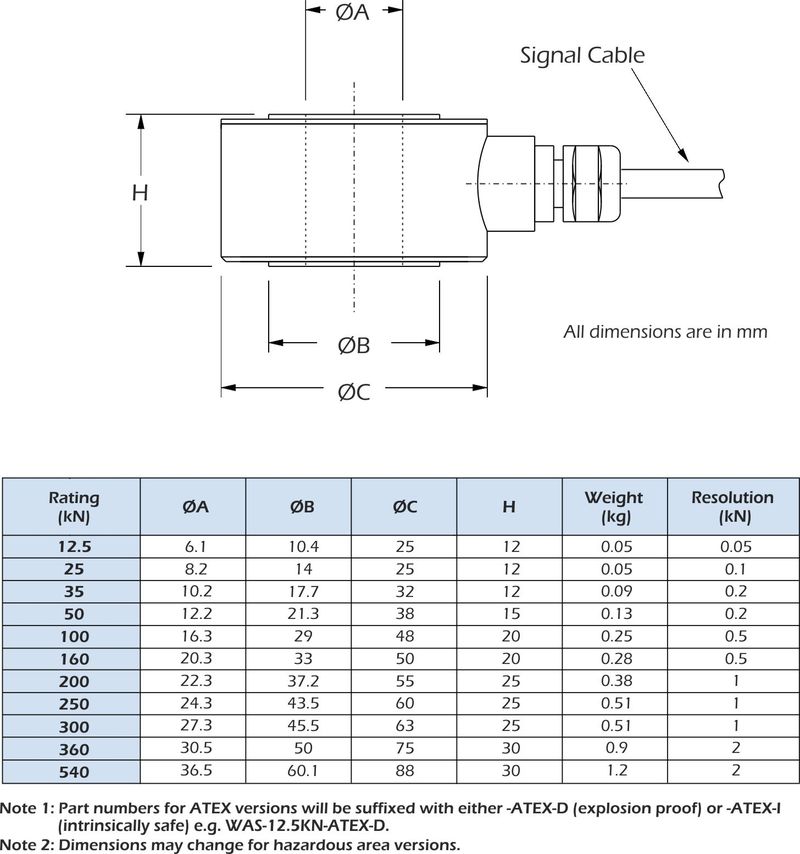

Dimensions





Options



  •  Special sizes and ranges available
  •  Higher accuracy versions available
  •  Many other varients available


Applications



  •  Bolt tension monitoring
  •  Fork Lift Truck Overload Protection
  •  Failsafe Cable Tension monitoring
  •  Press Tool force measurement
