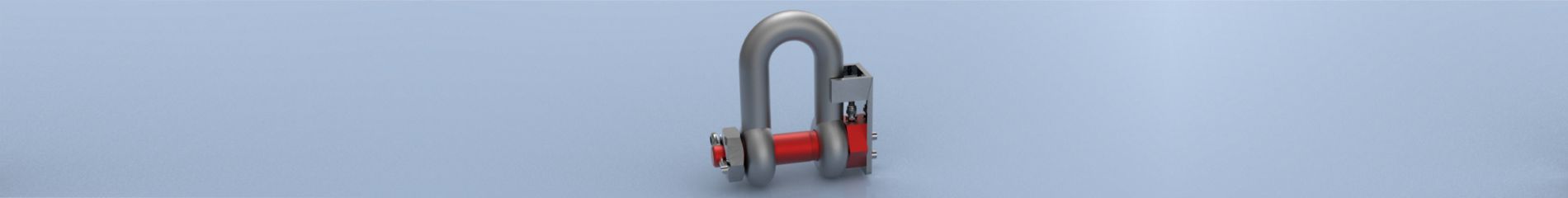

SHK-D D Type Cabled Load Shackle

Description

The LCM range of load shackles is designed for lifting and weighing in rugged or harsh environments.The shackle pins are manufactured to an exacting specification and are machined from high tensile stainless steel to 6.5te and forged from high tensile cabon steel from 9.5te. The basic shackle uses the Crosby G2150 series.

This range of load shackles is proof loaded to 150% of the normal rated load, and is available in a range from 1 tonne to 35 tonne. The SHK-D is internally gauged and the whole instrumented area is sealed to IP67 to protect it in service.

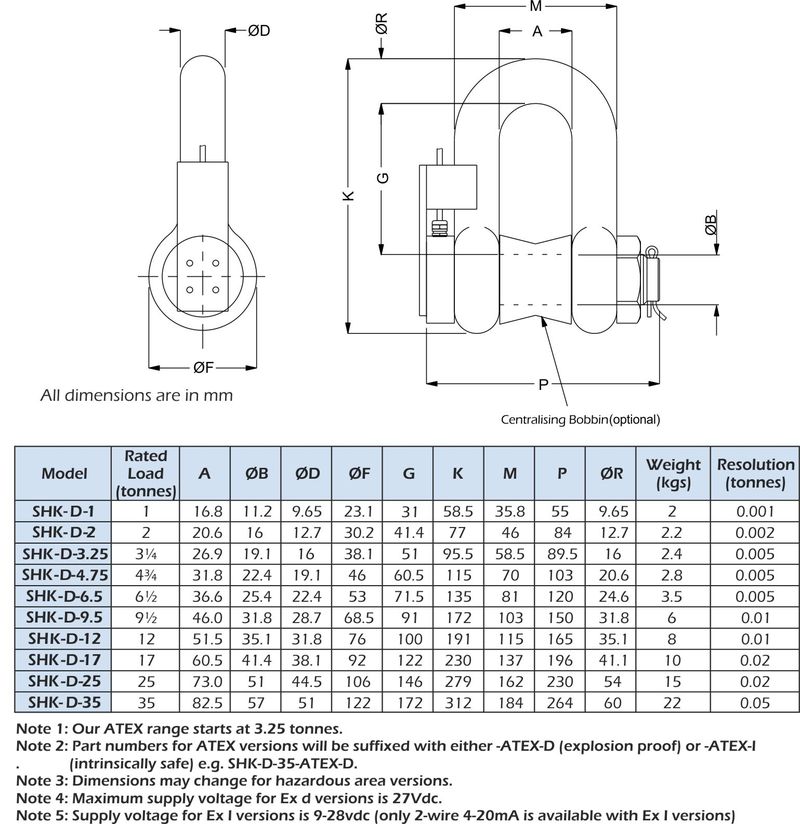

They are simple to install and are available in standard shackle sizes. As an option, a rotating bobbin can be supplied to centralise the load and to minimise any point-load effects when the load shackle is placed under load. We are also always happy to discuss any special requirements that can be accommodated.

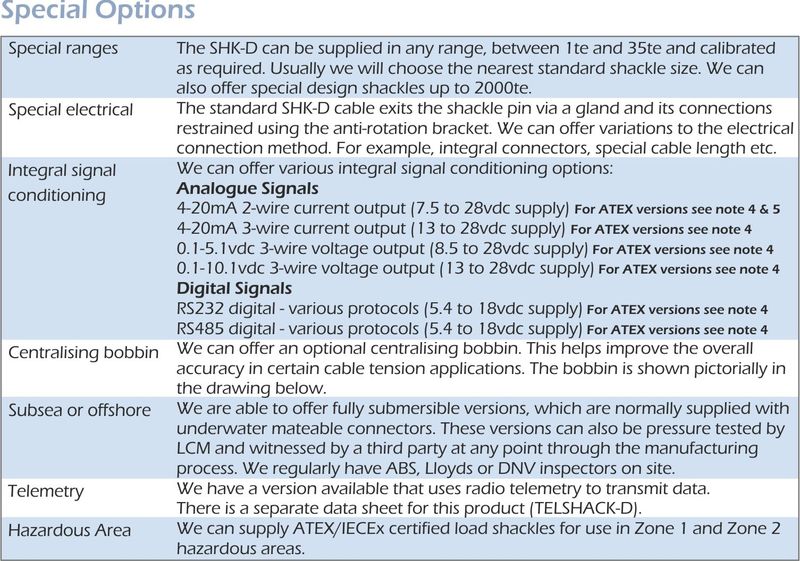

The SHK-D load shackle series can be supplied on it's own or combined with our extensive range of instrumentation to provide a complete load monitoring system.
