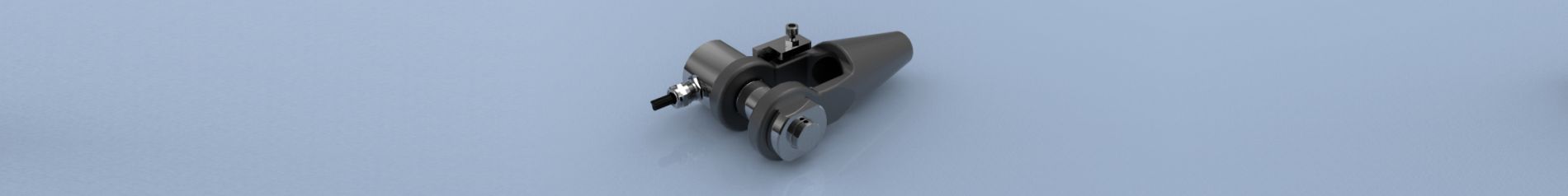

LPC Stainless Steel Shackle/Clevis Load Pin




Description



The LCM LPC shackle/clevis load pin offers precision force measurement by replacing existing pins in load shackles or clevises with a load sensing pin. They are extremely durable under even the harshest working conditions and have a long operational life.

The LPC load pin range is available in ratings from 1te to 1500te and are built to exacting standards. They are proof loaded to 150% of normal rated load and are temperature compensated. The load pins employ a full strain gauge bridge as its measurement technology.

The LPC load pin series can be supplied on its own or combined with our extensive range of instrumentation to provide a complete load monitoring system.

We also offer a standard load pin range (see LMP load pin) and a custom designed load pin range (see LPB load pin).



Features



  •  Ranges from 1te to 1500te
  •  Stainless steel construction
  •  Environmentally sealed to IP67 (IP68 available on request)
  •  Can be supplied with integral connector
  •  Versions available with integral conditioning providing 0-10V, 0.5V, 4-20mA, RS485 outputs
  •  Design support software available

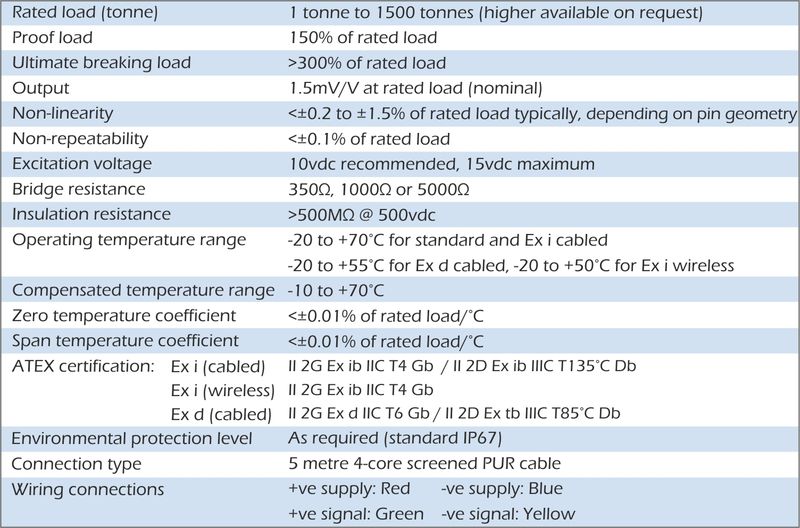

Specification

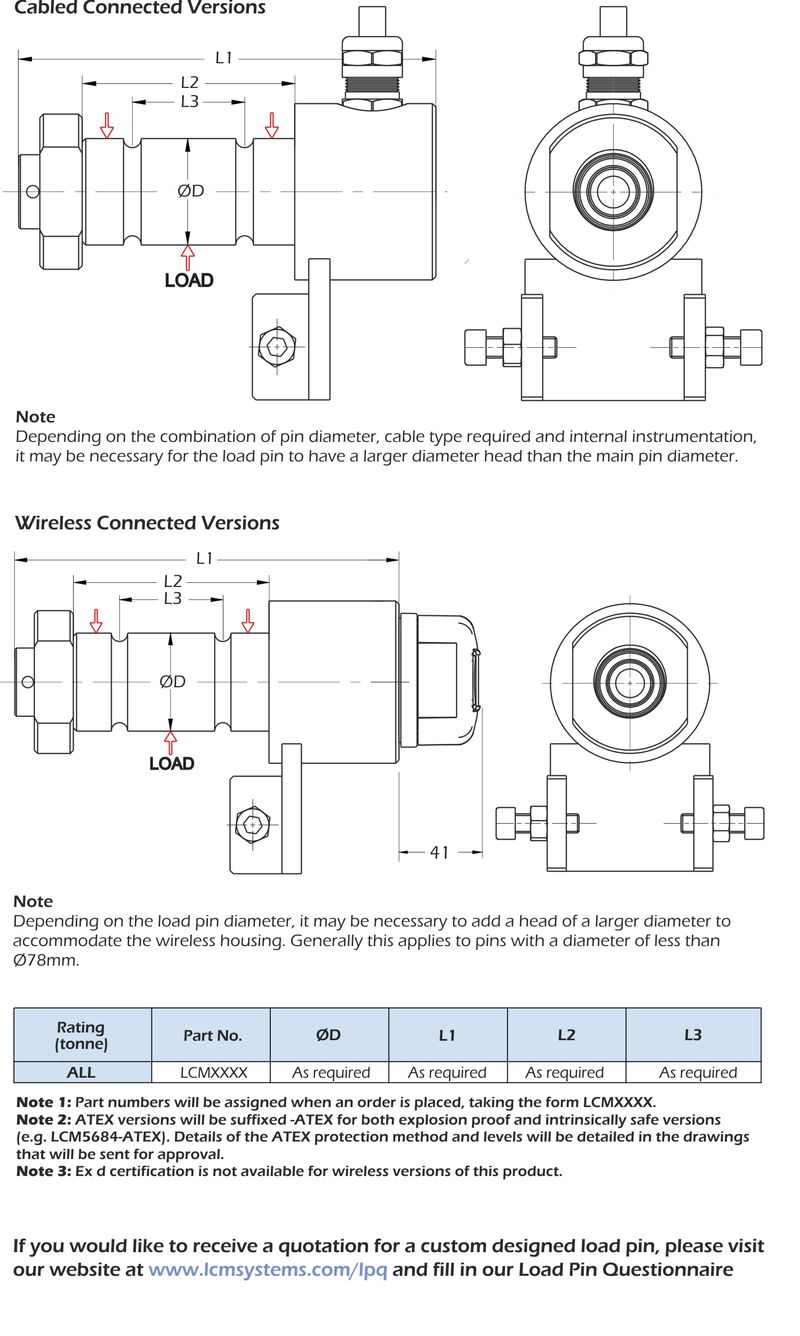

Dimensions





Options



  •  Hazardous Area certified - Explosion Proof (Ex d) and Intrinsically Safe (Ex i)
  •  Integral signal conditioning
  •  Special electrical connectors
  •  Subsea versions available
  •  Wireless option (not available with Explosion Proof (Exd) certification)
  •  TEDS option when used with TR150 handheld display (Not available with Hazardous Area versions)


Applications



  •  Crane overload protection
  •  Winch force monitoring
  •  Cable and wire dynamometers
  •  Hoist overload protection
  •  Mooring load tension measurement
  •  Container weighing
