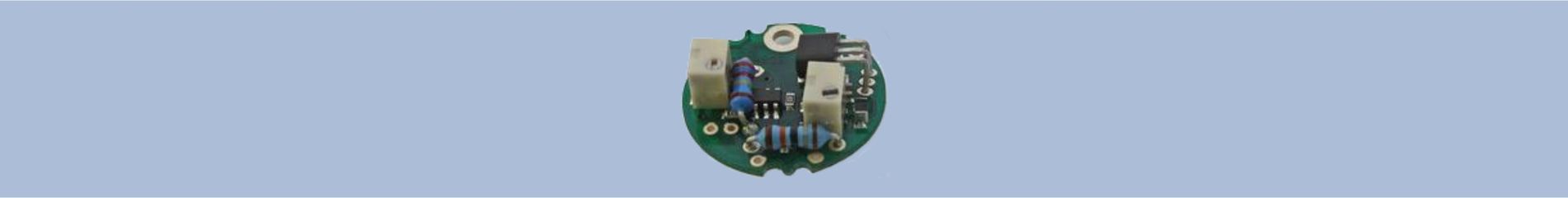

ICA5ATEX 2-wire 4-20mA ATEX Load Cell Amplifier

Description

The ICA5ATEX is an ATEX approved strain gauge/load cell amplifier that can be embedded withing the load cell to produce a sensor that is suitable for use within hazardous zones 0, 1 & 2. Its sub-miniature design enables it to be fitted into the majority of transducers.

This high performance amplifier provides 2-wire 4-20 mA current loop output and a range of signal conditioning for strain gauges, load cells and pressure transducers.

The ICA5ATEX can be connected to ATEX approved equipment within the hazardous zone or to non-approved ATEX equipment outside the hazardous zone, provided that a suitable barrier is used.

Features

•  High performance amplifier
•  Robust design
•  Reverse polarity and short circuit protected
•  Fast calibration via gain and offset trim
•  Approved for use in explosive atmospheres, Zones 0, 1 & 2

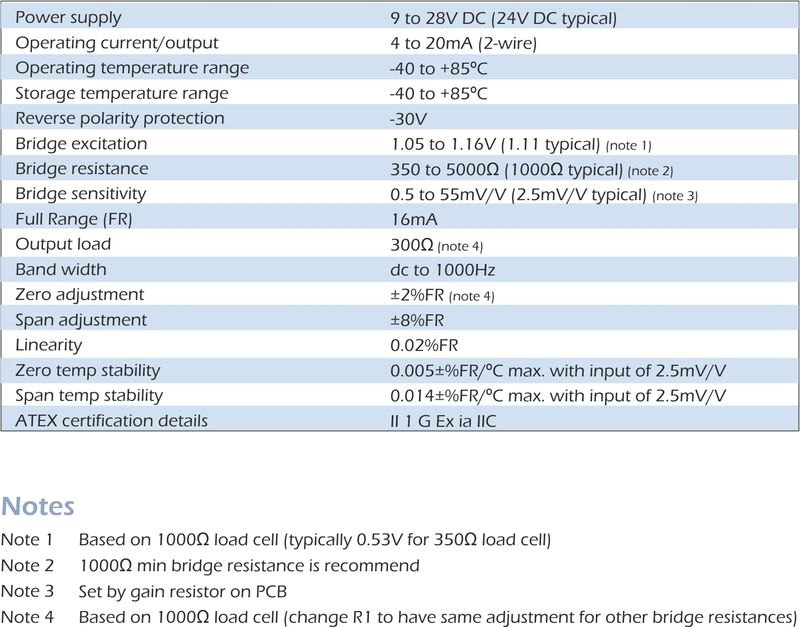

Specification

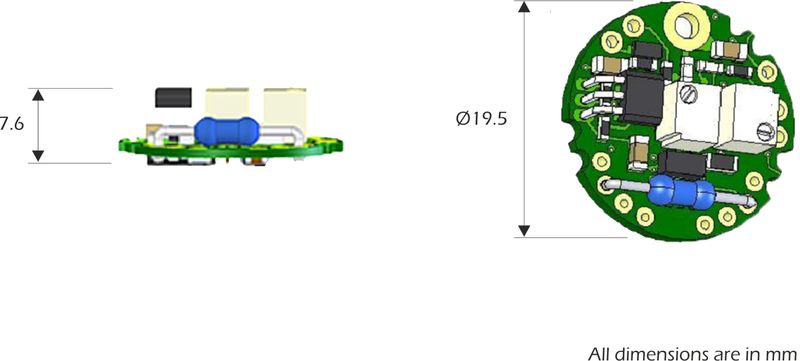

Dimensions

Applications

•  Force measurement systems
•  Simple weighing systems
•  Hoist load monitoring
•  Crane safe load monitoring
