AEN ATEX Enclosure |
Description
The AEN ATEX/IECEx stainless steel Ex d enclosure can be used in zone 1 and 2 hazardous areas. It has been designed to contain an internal explosion and prevent transmission of sufficient energy to ignite a potentiall flammable atmosphere outside of the enclosure. The AEN ATEX enclosure can be used to house load cell amplifiers, relays/trips or act as a junction box. The main body is manufactured from 16mm thick (minimum) stainless steel to give maximum environmental protection, and has been designed to accommodate cable entries for M12, M16 and M20 threads. The number of cable entries can be configured to suit the specific application. The AEN ATEX enclosure can also be supplied with a mounting plate to facilitate easy attachement to walls, floors and assemblies. |
Features
|

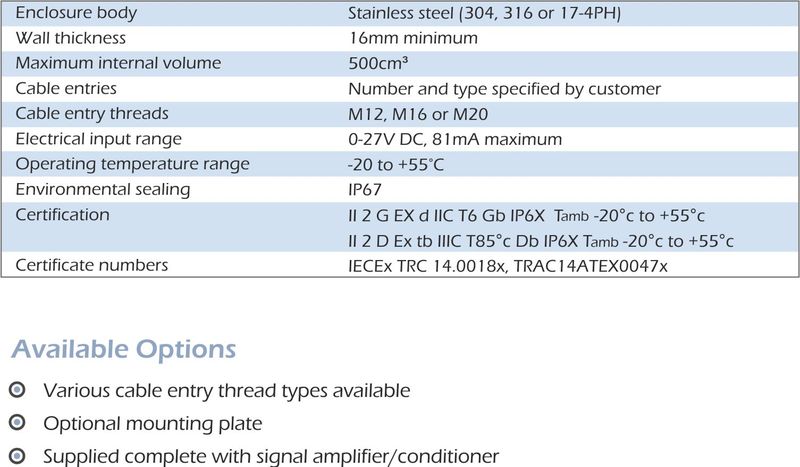

Specification
|

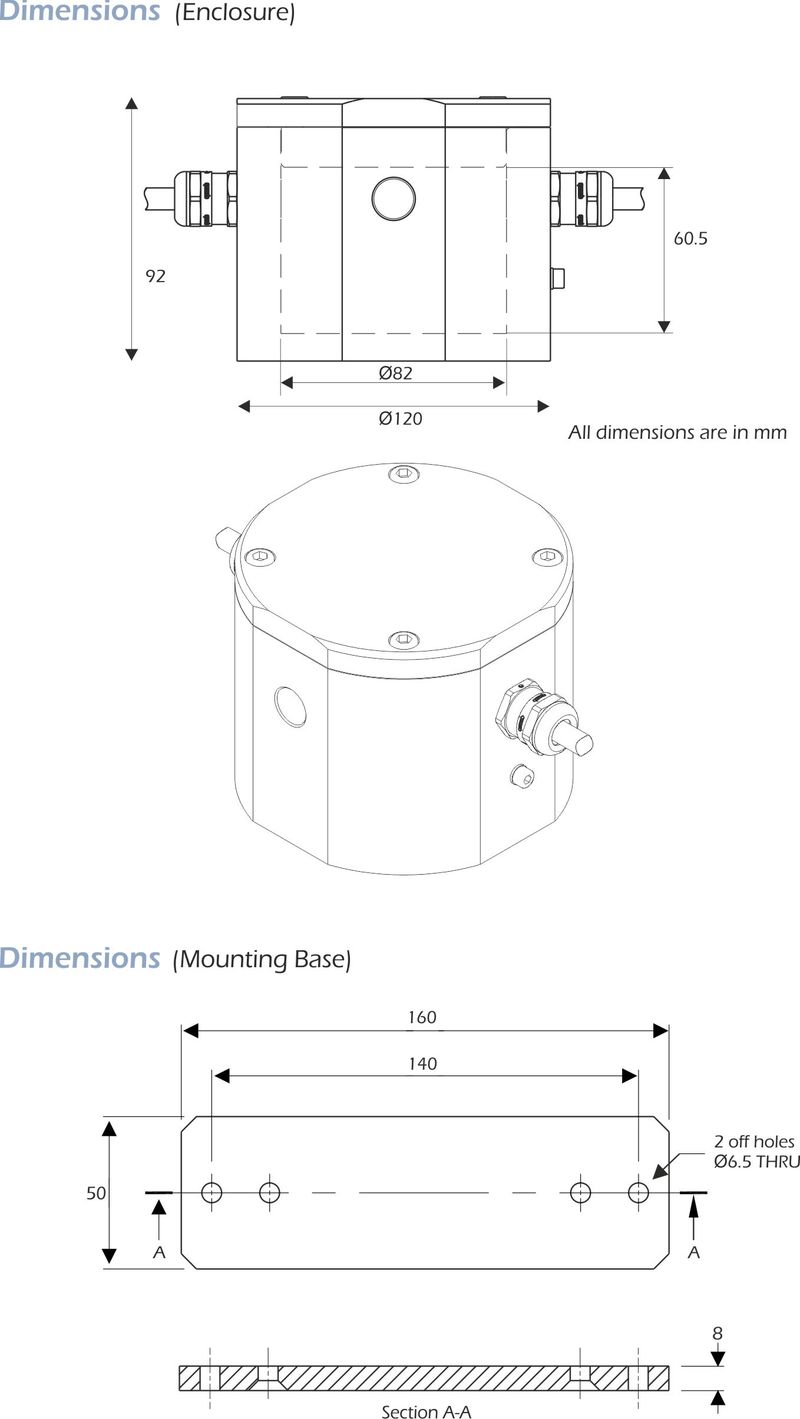

Dimensions
|
Options
|
Applications
|
