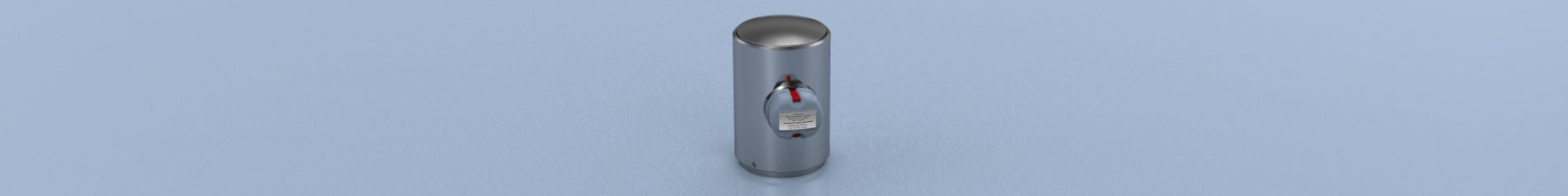

CPW Wireless Stainless Steel Compression Load Cell

Description

The LCM range of wireless compression load cells are designed for general use and are suitable for use in laboratories or in permanent outdoor installations. They are built to exacting standards and there are many special options, including integral carry handles, load cap and mounting base. The standard product is constructed from stainless steel.

The unique wireless housing is manufactured from semi-aromatic polyamide plastic making the load cell far more compact and reducing the overall product weight. Located in the housing are two AAA alkaline batteries which can be easily accessed by removing the telemetry housing cover, while the internal electronics underneath remain completely sealed. The antenna is also internally mounted, protecting it from accidental damage during use and handling. The batteries are standard AAA alkaline batteries, which are readily available and low cost.

The CPW is supplied as standard without any additional wireless devices to enable greater flexibility with the configuration and ordering of the product. The CPW can be used with any of the T24 range of wireless instrumentation, whether this be for a simple display system using the T24-HS-LS, or more complex systems using multiple load cells and multiple wireless devices.

For more sophisticated systems, including datalogging or monitoring/reporting requirements, we are able to offer a robust tablet PC with installed software for use with single or multiple load cell installations. Our sales team will be happy to discuss the best wireless system configuration to suit your requirements.

The CPW series can be provided as shown in this datasheet or can be modified to meet a particular application requirement. We are always pleased to discuss any special requirements that can be accommodated.
