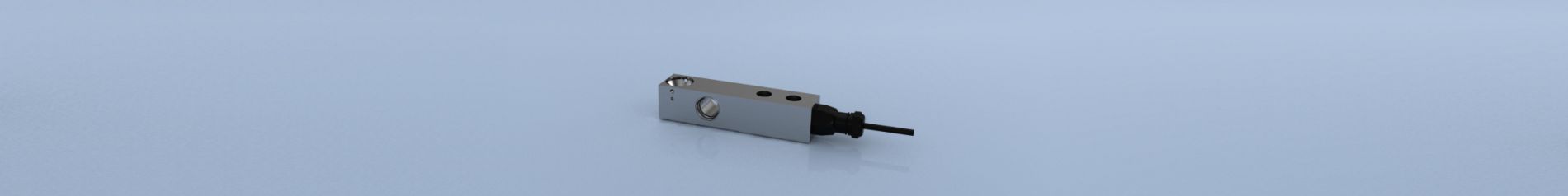

SBL-24 Stainless Steel Shear Beam Load Cell

Description

The SBL-24 series of beam load cells are available in a wide range of capacities from 0.5lb (227kg) through to 10,000lb (4536kg). They are manufactured entirely from stainless steel and have a fully welded construction, providing a high level of environmental and hermetic sealing to IP68. The design makes them ideal for use in harsh weighing environments where wash down of the application is required. The SBL-24 can be supplied complete with a vessel/tank weighing assembly, which is designed to make installation easier and to provide a means of realising the best accuracy from the product when installed, by eliminating the effects for vessel/tank thermal expansion. More details on the assembly are available on a separate datasheet (SBL-WMOUNT).

There are two versions available; one with a threaded end load attachment hole, the other version has a blind hole. The blind hole version is ideal for floor scale applications, where a foot can be attached for simple scale design. This version is also used when the vessel weighing assembly is used. The threaded version is ideal for hanging vessels and hoppers.
