GP4000 Series (Standard) Features |
Smart Display |
Powerful TFT LCD expression in 65,536 colors
All models employ 65,536-color TFT LCDs. Improved visibility enhances operability and security.
|
 |

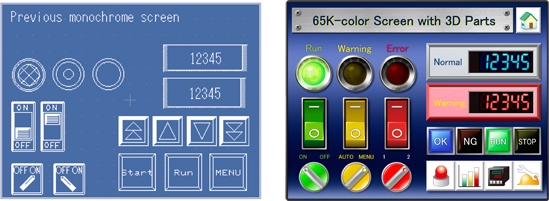

Realistic 3D parts that look just like the real thing
Add realistic three-dimensional graphical parts and easily create easy-to-identify screens with high added value. Realize expressive operation screens.
|
 |
Application Memory Increased
Create more screens and use more image files than ever before.
|
New Size, 7.0” Wide screen
5.7" models now have a 30% larger screen allowing effective placement of menus and numeric keypads.
|
 |
Customizable Start Screen
Display registered image such as your company name or product logo as a splash screen during start-up.
|
 |
Enhanced Durability
New models feature enhanced durability for use in harsh environments.
An easy-maintenance environment-resistant cover that extends product lifetime by protecting the screen from cutting oils and chemicals.
*UL Hazardous Locations Class I, Division 2 Group A, B, C and D is supported.
*Complies with IP67f NEMA #250 TYPE 4X/13 |
 |
Two-point touching operation with the matrix resistive touch panel
The GP4000 Series lineup includes models with an on-board matrix-type touch panel. Unintended operation can be prevented by setting two-point touching for buttons used in critical operations and operating environments. (Supported Models: GP-4601T, GP-4501T)
|
 |
Improved Start-up Speed

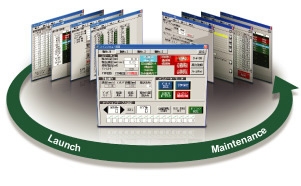

Design and debugging work can be performed efficiently.
|
Many pre-configured sample screen for immediate use
A variety of ready-made sample parts are available for download. Sample parts can be used immediately after download, which lets you significantly reduce time spent on screen design.
|
 |
Smart Connection |

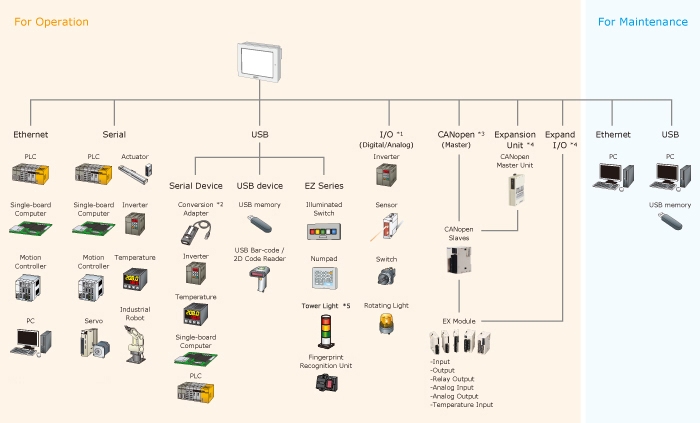

Connect to a wide range of control equipment
Pro-face HMIs support connection with a wide range of industrial controllers including PLCs, motion controllers, robots, and other devices.
A USB to RS-422/485 conversion adapter can be used to allow connection to a wide range of control equipment including temperature controllers, inverters, and PLCs. |
 |

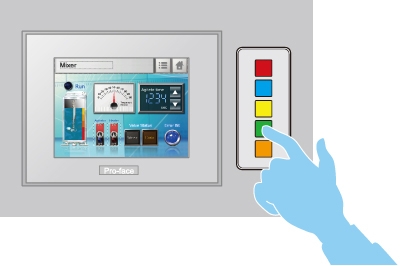

Easy and flexible configuration of lamps and switches
Lamps can be configured in six colors with four lighting states in the screen editor software, GP-Pro EX.
EZ illuminated switches feature easily customizable insert labels.
* For example: HOME, Change Screen, Change, Speed, Run, Stop, Reset, Auto, Manual and etc...
|
 |

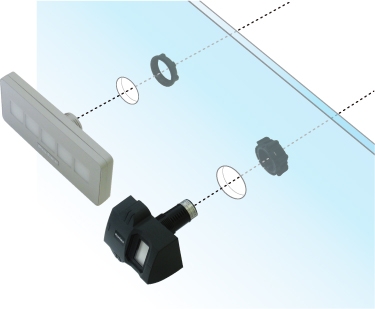

Fingerprint Authentification on HMI Operation

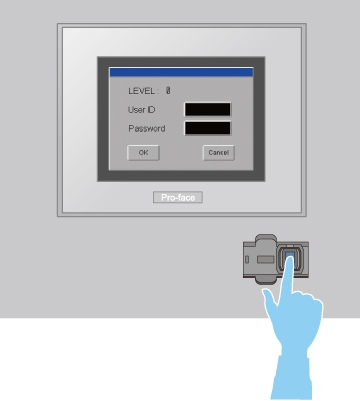

The EZ fingerprint recognition unit can reduce problems or accidents caused by inappropriate password use.
Fingerprint data is registered and maintained through an HMI or PC connected to the fingerprint recognition unit.
* Fingerprint data for up to 100 users can be stored.
*To purchase the EZ fingerprint recognition unit, contact to your local Pro-face distributor. |
 |

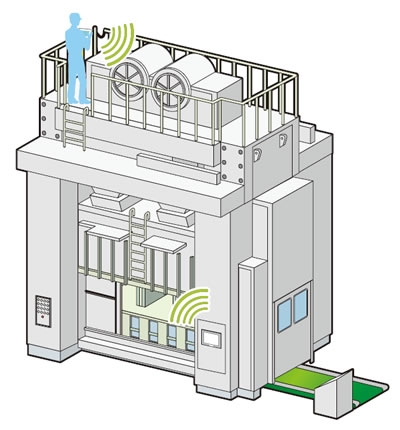

Monitoring Anywhere of Large/Long Equipment
Using the remote monitoring and operation functions, actions that previously required multiple staff for a large-sized machine or long-distance application can be easily accomplished by fewer operators.
* Please check equipment status and maintain conditions for machine safety to avoid unintended equipment operation.
|
 |
Ethernet Multi-Link function

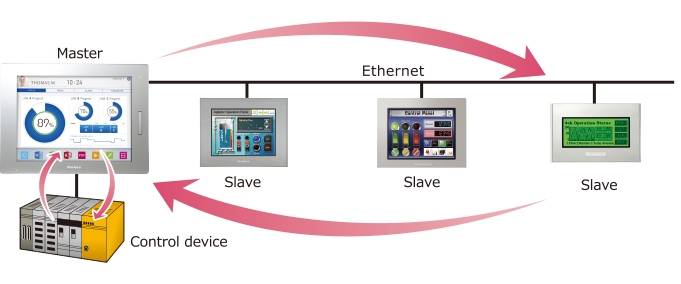

The Ethernet Multi-Link function allows you to easily add a display unit as a sub-display to the facility without changing any settings of the control device.
|
 |
Easily connect multiple USB devices
A controller with serial interface, EZ Series accessory unit, bar code reader, and USB flash drive can be easily connected to the HMI unit.
* EZ Fingerprint Recognition Unit also requires power supply cable.
* Multiple devices of the same model cannot be connected. |
 |
Use Video for On-Site Adjustments with COGNEX In-Sight vision system communication driver
In combination with a COGNEX In-Sight vision system,the settings can be changed when watching images from the cameras on a display unit on site.
* A communication driver supports In-Sight Micro series and In-Sight 5000 series.
* You can view video images from up to 3 cameras on a single screen. Up to 16 cameras can be connected to GP.Display position (X/Y), exposure time, focus, lighting and brightness can be adjusted on GP. |
 |
Supports Siemens PLC's tag import function
As the tag information of STEP7 Project Files created by Siemens PLC can be imported to GP-Pro EX screen data, you can reduce the man-hours for screen creation.
*<supported data type>
BOOL, BYTE, WORD, DWORD, SINT/USINT, INT/UINT, DINT/UDINT, REAL, STRING, ARRAY, STRUCTURE, TIME, TIME_OF_DAY, DATE, DATE_AND_TIME |
 |
Smart Information |

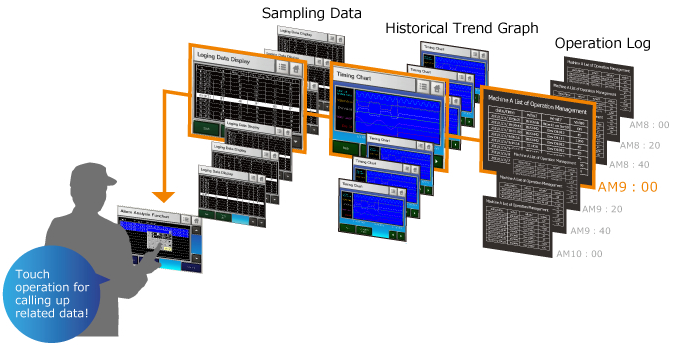

Alarm Analysis function |
 |
Sampling Data - Collecting various data during production
Temperature, voltage, and other desired address values can be stored in the GP. Data and times can be confirmed on the sampling display.
|
 |
Historical Trend Graph - Displaying data in an easy-to-see graph
The change in the collected data over time is displayed in an easy-to-understand form with a graph. The graph can be traced back to see the past data.
|
 |
Operation Log - Recording the operator's operation
Operations are saved to a log, so you can see who did what, and when. The log can also be used for a trend analysis of erroneous operation of operators.
|
 |
Enhanced Recipe function

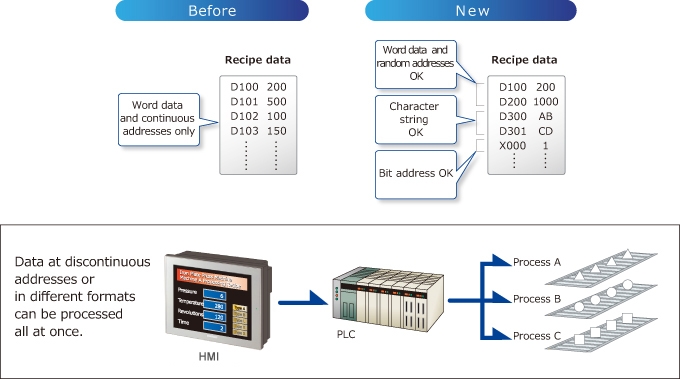

With the conventional recipe function, all recipe data must be stored at continuous addresses. The new recipe function allows writing random addresses and multiple data formats as a recipe.
|
 |

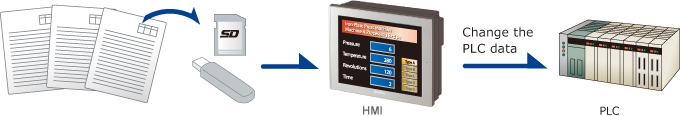

CSV data transfer function
Since the CSV data stored in the USB memory/SD card can be edited, the recipe data can easily be carried for performing updates on-site. The alarm message can be easily changed with CSV files only.
|
 |
Internal Logic Program - Program with a familiar ladder language

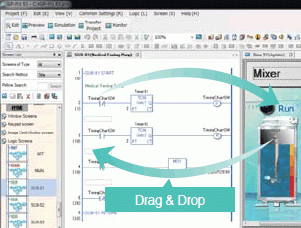

- Screens and logic programming can be edited with the same software, so editing between parts and logic elements can be performed via drag and drop.
- Reduces PLC operation and program maintenance load. - The online editing function allows you to make program changes on a computer during operation. |
 |
D-Script - Create unique macro program for user-customized data process and functions
Configure these settings based on trigger conditions including "Continuous Action", "Timer Bit Change", and "Condition Satisfied". Many functions are also provided including search (search and replace strings in the script) and debug functions (display messages and addresses on the unit).
D-Scripts created with GP-PRO/PBIII can be used unmodified so replacement is a breeze. |
 |
Pro-Server EX
Collect information of operation progress on a PC via Ethernet network. Download operating instructions, such as recipes, from an office PC to a GP.
|
 |
GP-Viewer EX
The screen of theHMI on the site can be monitored from a PC at a remote location.
*Purchase of a separate license is required.
|
 |
Web Server
Acquirable devices or alarms in the GP on the site can be monitored with a browser.
*Ethernet I/F models only
|
 |
FTP-Server
The content of a USB memory or SD card attached to the GP on the site can be interchanged from a remote location.
*Ethernet I/F models only
|
 |
RPA (Remote PC Access)
The work procedure document stored in a PC in an office can be displayed on the GP. This is effective to reduce procedural errors or other mistakes.
*Purchase of a separate license is required.
|
 |
Smart Installation |

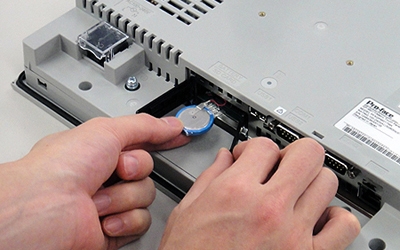

Equipped with a user-replaceable battery
|
 |
No more accidental dropping
Special projections prevent the GP4000 series from being accidentally dropped through the hole when it is being installed in a panel.
|
 |
Consistent direction of cabling
Thanks to a consistent connection direction for cables and other interfaces, routing of wiring is now simpler than ever.
|
Compatibility for easy replacement

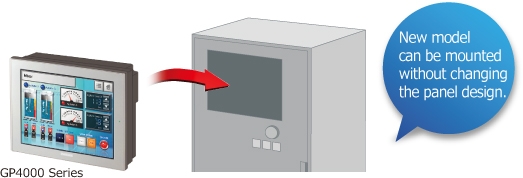

Since the panel cutting dimensions are the same as conventional models, it is easy to replace only the display unit in an existing facility.
|
 |
Easy to change the display screen
Commercially available Type A to Mini-B USB cables can be used to transfer screen data. |
 |
Conforms to overseas standards for hassle-free export and use with overseas equipment
|
 |
Energy Saving - Standard equipped with LED backlight LCD + Lighting adjustment

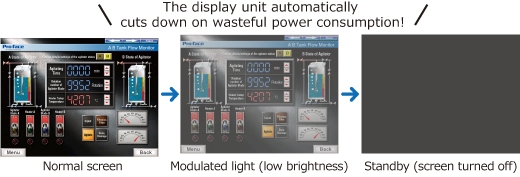

Energy-saving capabilities have been greatly improved. The GP4000 Series contributes to reducing on-site power consumption in a variety of ways including an on-board LED backlight in all models, and a lighting adjustment function used to decrease and eventually stand-by the display after being idle for a set period of time.
|
 |
Easily connect multiple USB devices
A controller with serial interface, EZ Series accessory unit, bar code reader, and USB flash drive can be easily connected to the HMI unit.
|
 |
