PFXSP5790WAD / PFXSP5790WADF0H

Standard product information
Family
HMI
Series
SP5000X Series
Size
15" Wide
Model
PFXSP5790WAD
Global Code
PFXSP5790WAD
Product Features
15" Wide DC
Repair Status
✔ (Maintenance service is available, able to be maintained.)
Display specifications
Display type
TFT Color LCD (Ultra High-brightness)
Display size
15.6" Wide
Resolution
1,366 x 768 pixels (FWXGA)
Effective display area
W344.2 x H193.5 mm [W13.55 x H7.62 in.]
Display colors
262,144 colors
Backlight
White LED (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight service life
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)
Brightness control
0 to 100 (Adjusted with touch panel or software)
Brightness
1000 cd/m2 (typ.)
Touch panel type
Resistive Film (analog)
Touch panel resolution
1,024 x 1,024
Touch panel lifetime
1,000,000 times or more
Electrical specifications
Rated input voltage
12 to 24 Vdc
Input voltage limits
10.8 to 28.8 Vdc
Allowable voltage drop
12 Vdc: 1.25 ms or less
24 Vdc: 5 ms or less
Power consumption
Max. 48 W
When power is not supplied to external devices: 34 W or less
Backlight OFF (Stand-by mode): 12.5 W or less
Backlight adjusted (20%): 19 W or less*1
In-rush current
30 A or less
Noise immunity
Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)
Voltage endurance
1,000 Vac for 1 minute (between power terminal and FG terminals), leakage current: 20 mA or less
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)

1The power consumption is the sum of the power consumption of Box Module and Display Module.

Environmental specifications
International safety standards
Surrounding air temperature
-20 to 60 °C [-4 to 140 °F]
When installing and wiring: -5 to 60 °C [23 to 140 °F]
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Ambient humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Storage humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (free of conductive dust particles on all surfaces other than the front face)
Pollution degree
3 for front face, 2 for other sides
Corrosive gases
Free of corrosive gases
Harsh environment model (Model numbers ending with "F0H") : IEC/EN 60721-3-3 Class 3C3
Air pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561 ft.] or lower)
UV resistance (front side)
Cutoff: 99% or more (380 nm)
Vibration resistance
1G, IEC 60068-2-6 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s2, X, Y, Z directions for 10 cycles (approximately 100 minutes), IEC 61373: 1999 (Category 1, Class B), 5≤f≤150 Hz (weight < 500 kg: f1=5 Hz, f2=150 Hz) acceleration: Up and down: 7.90 m/s2, Right and left: 3.50 m/s2, Back and forward: 5.50 m/s2
Concussion resistance
15G, IEC 60068-2-27 compliant 147 m/s2, X, Y, Z directions for 3 times
Electrostatic discharge immunity
Contact Discharge Method: 6 kV
Air Discharge Method: 8 kV
(IEC/EN61000-4-2 Level 3)
Structural specifications
Grounding
Functional grounding: Grounding resistance of 100 Ω, 2 mm2 (AWG 14) or thicker wire, or your country’s applicable standard (same for FG and SG terminals).
Cooling method
Natural air circulation
Structure
IP66F, IP67F, Type 4X (indoor and outdoor use), Type 12, Type13*2
External dimensions
W408 x H264 x D68 mm [W16.06 x H10.39 x D2.68 in.]
Panel cut-out dimensions
W394 x H250 mm [W15.51 x H9.84 in.]
Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*3
Weight
Rear Module: 0.27 kg (0.6 lb) or less
Display Module:0.22 kg (0.49 lb) or less
Front bezel
Aluminum die-cast
Stainless steel

2The front face of the unit, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification. Even though the unit's level of resistance is equivalent to these standards, oils that should have no effect on the unit can possibly harm the unit. This can occur in areas where either vaporized oils are present, or where low viscosity cutting oils are allowed to adhere to the unit for long periods of time. If the unit's front face protection sheet becomes peeled off, these conditions can lead to the ingress of oil into the unit and separate protection measures are suggested. Also, if non-approved oils are present, it may cause deformation or corrosion of the front panel's plastic cover. Therefore, prior to installing the unit, be sure to confirm the type of conditions that will be present in the unit's operating environment. If the installation gasket is used for a long period of time, or if the unit and its gasket are removed from the panel, the original level of the protection cannot be guaranteed. To maintain the original protection level, be sure to replace the installation gasket regularly.

3For dimensional tolerance, everything +1/-0 mm [+0.04/-0 in.] and R in angle are below R3 [R0.12 in.]. Even if the installation wall thickness is within the recommended range for the "Panel Cut Dimensions", depending on wall's material, size, and installation location of GP unit and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.

Dimensions

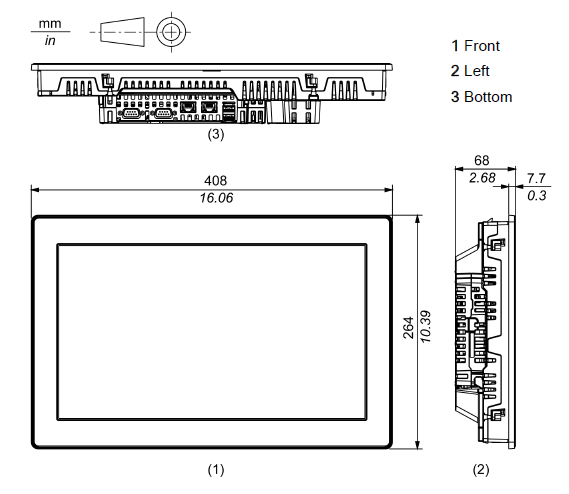

External dimensions
Display module and box module combination


Panel cut-out dimensions

A B C
394 mm (+1/-0 mm)
15.51 in. [+0.04/-0 in.]
250 mm (+1/-0 mm)
9.84 in. [+0.04/-0 in.]
1.6 to 5 mm
[0.06 to 0.2] in.

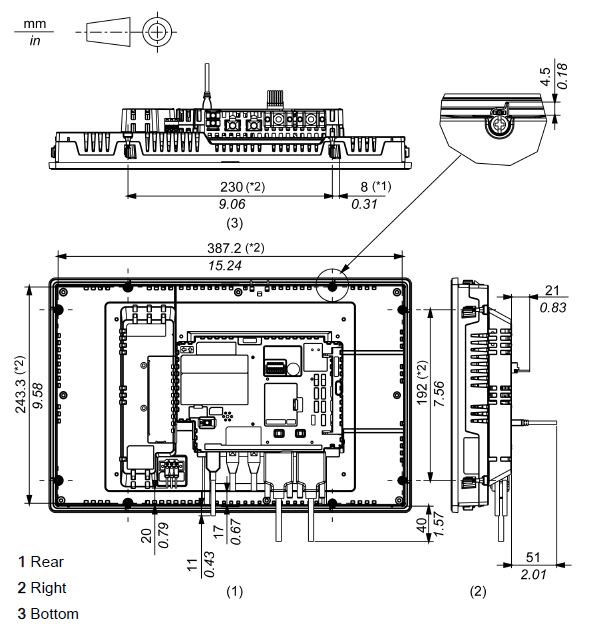

External dimensions with cable


*1: Rotation area of the fastener
*2: Pitch of center of installation fastener screws
