Achieve a high level of visualization with the new basic modular HMI

The STM6000 series in the complement of the ST6000 range brings a new level of visualization to the Basic HMI market which no other basic product has accomplished. We have achieved a superior quality display that improves operability and is unmatched by any other basic product. Also, the product can be installed easily as no tools are necessary and very fast with the unique push-button mounting system through a φ22 mm circular hole. Optimize operations and machine information.

Feature

Refined

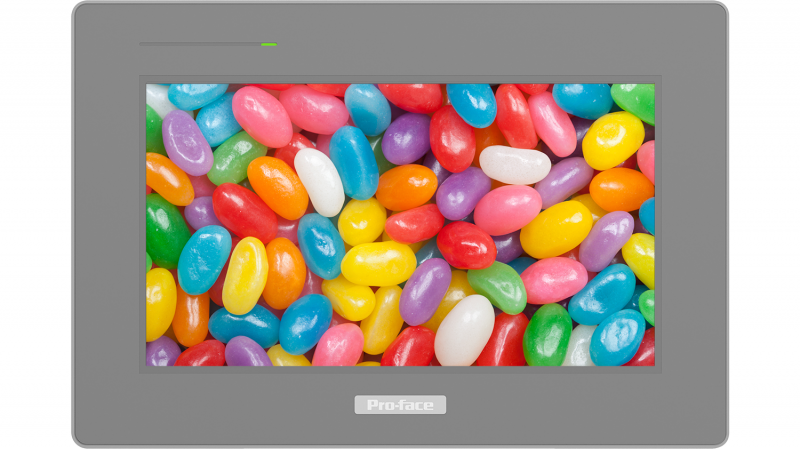

We have designed a superior quality display that improves operability and optimizes operations and machine information. An innovative HMI with a sophisticated design that transforms simple machines.

Simple & Easy

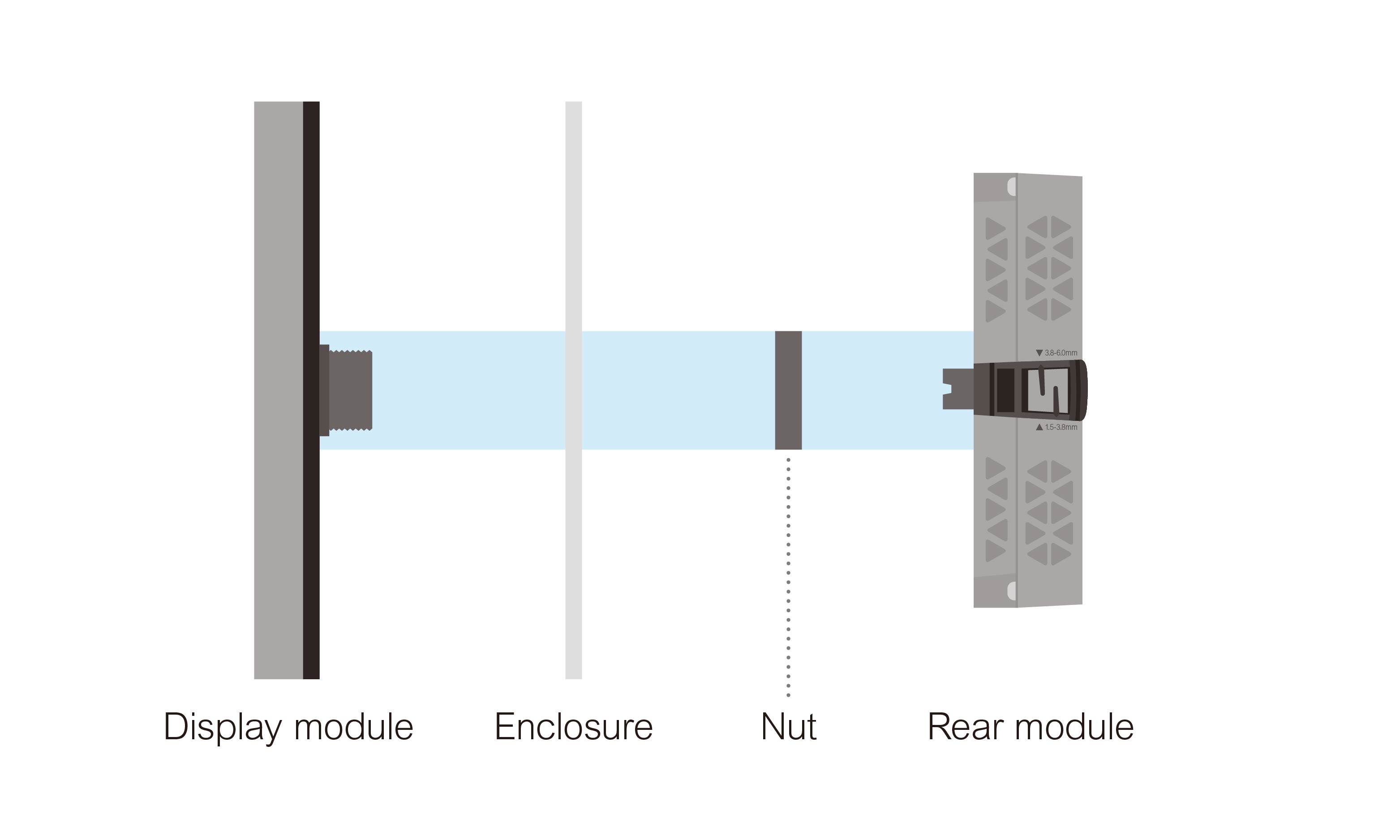

The product can be installed easily as no tools are necessary and very fast with the unique push-button mounting system through a φ22 mm circular hole.

The simple design and interface help increase productivity and efficiency. From installation to operation and maintenance, it is easy in every scene.

Connected & Secured

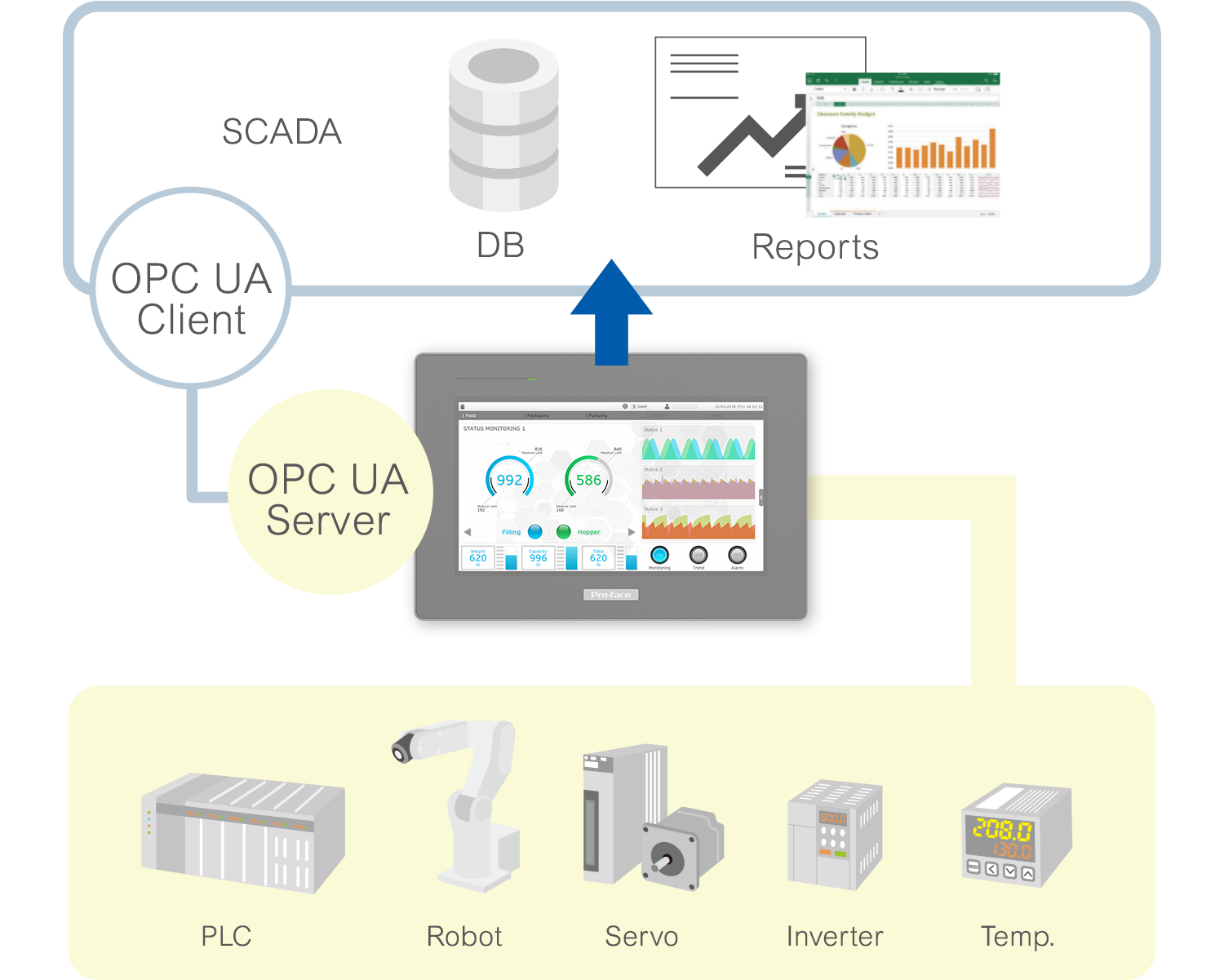

High connectivity with a rich interface and user-friendly protocols allowing you to connect your devices with ease via multiple interfaces and connect OT to IT with OPC-UA server. Schneider Electric can provide an international standard cyber secured solution for remote expertise who will efficiently diagnose and can remedy issues remotely, and guarantee correct spare part repair. Measure downtime in hours, not days.

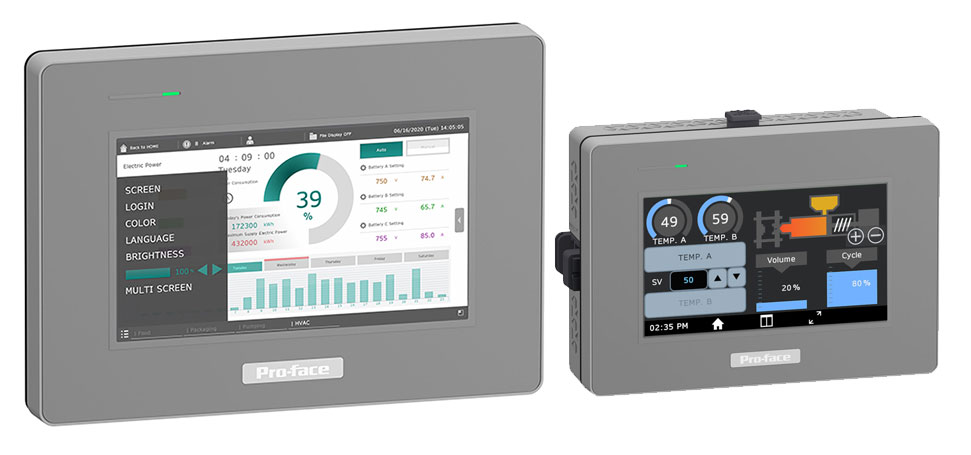

Lineup

	STM-6200WA	STM-6400WA
Model No	PFXTM6200WAD	PFXTM6400WAD
Display	4.3” Wide (480 x 272)	7.0” Wide (800 x 480)
Display	16M colors White LED 16 level brightness control
Touch Panel	Type : resistive film (analog). Service life : 1,000,000 times or more
Interface	COM1: RS-232C/485/422 SubD9 Ethernet1 : IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX Ethernet2 : IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX USB host type A, USB device Micro B
Input Voltage	19.2 to 28.8 Vdc
Certifications	IP65, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure), CE, UL and cUL, RCM, KC, EAC, RoHS, WEEE
