Functions of Expert Logger

Following is a list of the main features of Expert Logger.




Sensor connection

  • Universal analog inputs (mV mA, TC, RTD)
  • Digital inputs and outputs

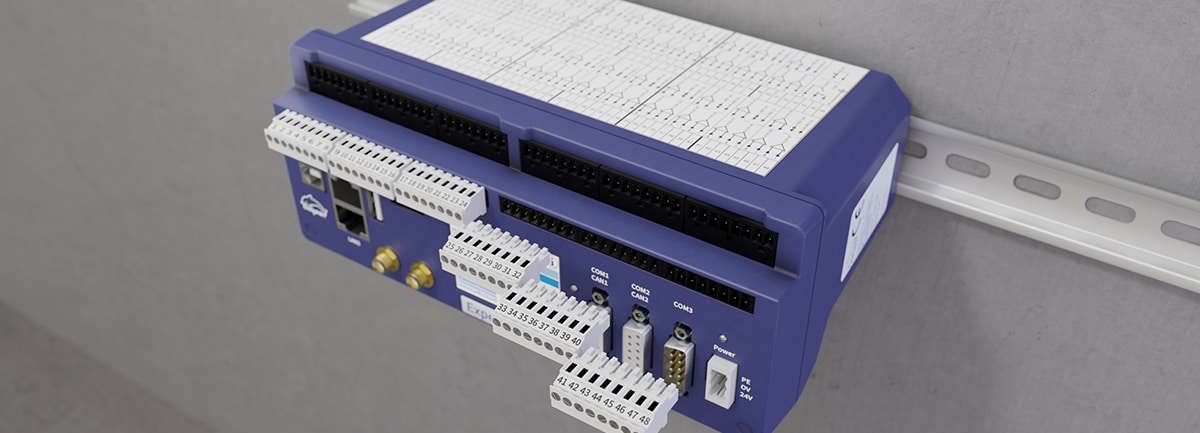

  • Plug-in screw terminals


Serial and SDI12 interfaces

  • SDI12 interfaces for environmental sensors
  • Serial RS232 ports and a RS485
  • Configuration of individual ASCII protocols


Battery and rechargeable operation

  • Independent operation possible with batteries orrechargeables
  • Minimal energy consumption via a sleep function
  • User-defined wake and measuring intervals


Internal data storage

  • 4 GB of internal data storage for up to 125 million measurement values
  • Time stamps to msec resolution
  • Data read out via LAN, WLAN or USB interface


External data storage

  • Data recorded to external storage media (USB, NAS)
  • PUSH function to send measurement data to theinternet
  • Event-triggered recording with pre and post histories


Remote monitoring

  • WLAN link to PCs and mobile devices
  • Optional LTE / UMTS / 4G integrated modem
  • Automatic notification via email or text messaging


PC and field bus interfaces

  • LAN and USB interface to a PC or network
  • CAN-Bus interface for reading / writing identifiers
  • Field bus interfaces PROFIBUS DP, Modbus


Monitoring functions

  • Monitoring and data logging in a single device
  • Limit value setting for any sensor signal or calculationchannel
  • Controlling digital outputs with user-defined triggering
  • Logging of pictures from webcam by external trigger


Signal processing

  • Averaging (middle, min, max, RMS values)
  • Integration of time signals into volumes, masses or working values
  • Computational functions (basic functions, polynomial, trigonometric ...)


Touch Display

The touch display enables users to configure the Expert Logger‘s basic settings such as the IP address and network mask. The display also simultaneously shows selected measurement data. The display operates via either touch or an external USB mouse.
