Flexibly scalable - with large storage capacity and precise timestamp


The Expert Logger is available in four versions with varying numbers of analog and digital inputs. All models have an internal 32 GB memory for autonomous recording of up to 960 million measured values - including date and time stamp in the millisecond range. If required, the storage capacity can be flexibly expanded via USB or a NAS system.

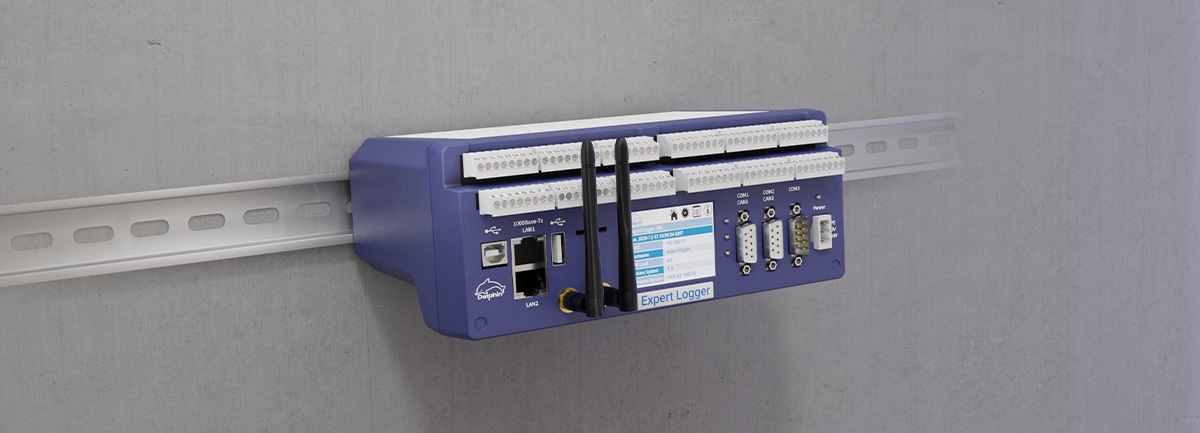

Precisely record, autonomously store, automatically transmit and evaluate measured values.

Expert Logger - Available as type 100, type 200, type 300 or type 400


Type 100 200 300 400
Analog inputs for mV, mA, thermocouples 16 32 46 16
Appropriate for RTD's 8 16 23 8
Sampling rates (measurements / sec.) 1000 2000 3000 1000
Analog outputs 0 0 0 6
Digital / Frequencies inputs 4 4 0 1
SDI 12 sensor bus 1 1 0 0
Digital / PWM outputs 4 4 0 0
Digital inputs / outputs 4 4 1 24
