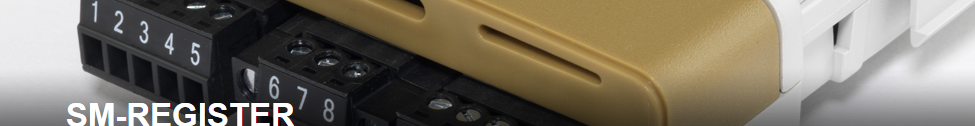

SM-Register is designed to provide a flexible, high performance solution for programmable motion requiring high speed registration features. It is ideal for applications such as printing, packaging and cutting machinery. Features include:

• Motion programming using Control Techniques’ Advanced Position Controller (APC)
• Programmable in user defined units
• Two fully independent registration capture channels
• Storage for 256 events per channel, microseconds apart
• Pattern recognition
• Speeds in excess of 1000m/min (3,000ft/min) can be handled
• Ability to filter unwanted marks (i.e. splashes, dirt, text etc)
  •      Minimum and/or maximum pulse width
  •      Distance from previous edge
• Compensation for registration sensor throughput delay

Further information

Click here to download the SM-Options brochure
