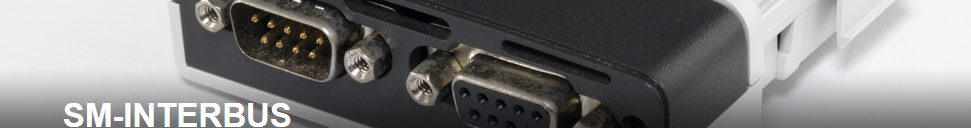

Control Techniques’ SM-Interbus Option Module interface features include:

  • Up to 63 nodes on a network
  • Fixed data rate of 500Kbps
  • Cyclic data sizes of up to 10 words in/out
  • Non-cyclic access supported using standard PCP protocol

Specifications Downloads

Option Module User Guides
Title Issue File Type Size Lang
SM-CANopen User Guide 10 pdf 2.16 MB EN Download
SM-DeviceNet User Guide 7 pdf 1.84 MB EN Download
SM-EtherCAT User Guide 5 pdf 1.89 MB EN Download
SM-Ethernet User Guide 6 pdf 3.04 MB EN Download

Software
Title Issue File Type Size Lang
CTSoft V01.16.00 V01.16.00 exe 74 MB EN Download

Visio Drawings
Title Issue File Type Size Lang
Control Techniques Visio Shapes   zip 28 MB EN Download
Instructions for using Control Techniques Visio Shapes   pdf 272 KB EN Download

GSD / GSDML Files
Title Issue File Type Size Lang
SM-PROFIBUS DP-V1 - can only be used with DP-V1 modules with V03.02.03 or later firmware**   zip 92 KB EN Download
SM-PROFIBUS DP-V1 - can only be used with DP-V1 modules with V03.02.xx or later firmware*   zip 26 KB EN Download

Application Notes
Title Issue File Type Size Lang
Application Note Directory (CTAN) 4.0 pdf 294 KB EN Download
Title Issue FileType Size Lang
CTSoft V01.15.05 V01.15.05 exe 141 MB EN Download


Further information



Click here to download the SM-Options brochure
