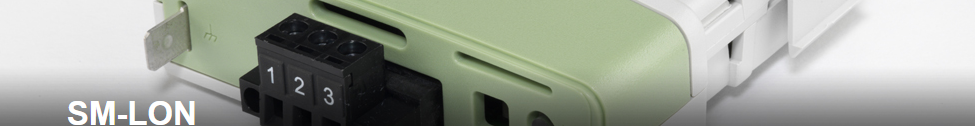

Control Techniques’ SM-LonWorks Option Module interface is for use in building automation applications. Features include:

  • Up to 32385 nodes on a network
  • TP/FT-10 cabling 78kbps twisted pair
  • Non-cyclic peer-to-peer messaging
  • Vendor-independent profiles supported: Variable Speed Motor Drive and Node Object function blocks
