Commander C

Commander C

General Purpose Drives

0.25 kW - 132 kW (0.33 hp to 200 hp)
100 V | 200 V | 400 V | 575 V | 690 V

Flexibility For Countless Applications

Commander C combines efficiency and reliability to offer optimum performance for a wide range of applications. With many essential features built in, including PLC capabilities for simple programming needs, dual STO safety function, braking transistor and PID control, it provides a compact solution for any installation.

Excellence in Motor Control



The Ultimate All-In-One Drive

Adaptable to your application

Whether you have a single application or a variety of different ones, Commander C fits right in. With all essential features built-in, it's ready to go right out of the box.

Integrated functional safety

The Dual Safe Torque Off (STO) feature, certified to the highest level of machine safety, SIL3/PLe, and compliant to EN/IEC 61800-5-2, prevents the motor from moving unexpectedly, protecting both equipment and operators.

On-board PLC

The generous 30kB user space allows for add-on programmable functions, more elaborate I/O features and special software that enables greater machine control. The on-board PLC also eliminates the need for an external controller, saving both on cost and space.


Compact design

Commander C is one of the most compact drives within its category, taking little space in the cabinet and minimizing installation cost.

Super quick start-up

To get started you only need to set-up 4 parameters (motor rated current, RPM, voltage and power) and for your convenience we've listed them on the front cover of the drive.



Flexible connectivity

The plug in communication modules enable integration with the most common industrial fieldbuses.





Worldwide availability and outstanding service

Need expert advice and support? Wherever you are in the world we've got you covered via our sales offices or Control Techniques approved distributors.



Free 5 year warranty

Our Commander C series is built to cope with harsh environments.
To share our confidence in the reliability of Commander C we offer an extended 5 year warranty, at no extra cost.
It is a testament to our exceptional track record for reliability, giving you total peace of mind that your investment is protected and your site will continue to run uninterrupted.

Warranty terms and conditions apply.




Options & Accessories

Keypads
Remote-Keypad-RTC

Remote Keypad RTC
The keypad is remote mountable, allowing flexible mounting on the outside of a panel (meets IP54/NEMA 12). Three line plain text, multi-language LCD keypad for rapid set-up and helpful diagnostics. Battery operated real-time clock allows accurate time stamping of events, aiding diagnostics.

Remote Keypad for Variable Speed Drives

Remote Keypad
Remote mountable, intuitive plain text, multilingual LCD keypad for rapid set-up and superior diagnostics (using the AI-485 adaptor along with a comms lead). Rapid and secure panel fit with 1 x 32mm hole rated to IP66 (NEMA 4).

hmi

Operator Interface (HMI)
The MCh040 & MCh070 panels and MChMobile Software have been designed for the easy development of HMI applications including factory and building automation.

System Integration Modules - Communications

SI-Profibus Communication System Integration Modules

SI-PROFIBUS
SI-PROFIBUS interface module enables follower connectivity. It is possible to use multiple SI-PROFIBUS modules or a combination of SI-PROFIBUS and other option module types to add additional functionality such as extended I/O, gateway functionality or additional PLC features.

SI-POWERLINK

SI-POWERLINK
SI-POWERLINK serves applications ranging from simple open-loop systems through to those demanding precise motion control.

SI-Devicenet Communications System Integration Module

SI-DeviceNet
SI-DeviceNet enables follower connectivity. It is possible to use multiple SI-DeviceNet modules to provide additional functionality.

SI-CANopen Communication System Integration Module

SI-CANopen
SI-CANopen interface module supports various profiles, offering optimum flexibility.

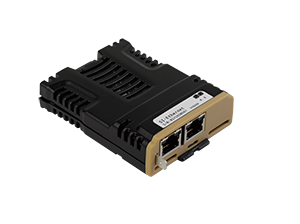

SI-Ethernet Communication System Integration Module

SI-Ethernet
SI-Ethernet can be used to provide high speed drive access, global connectivity and integration with IT network technologies.

SI-EtherCAT Communications System Integration Module

SI-EtherCAT
SI-EtherCAT allows Commander C general purpose drive to connect and interface with EtherCAT networks.

SI-Profinet Communications System Integration Module

SI-PROFINET
SI-PROFINET allows Commander C to communicate and interface with PROFINET PLCs and networks.

SI-Interbus-communications-option-module

SI-Interbus 500kBd

SI-Interbus 2MBb

SI-INTERBUS for easy integration to the Interbus fieldbus in applications that use or drives

System Integration Modules - Additional I/O

SI-IO System Integration Module

SI-I/O
Extended I/O interface module to increase the number of I/O points on a drive. Provides additional: 4 x Digital I/O, 3 x Analog inputs (default)/Digital inputs, 1 x Analog output (default)/Digital input, 2 x Relays.

Optional Accessories
AI-Backup-Adaptor

AI-Back-up Adaptor
Port adaptor for SD card parameter cloning, and an input for 24 V back-up.

AI-Smart-Adaptor

AI-Smart Adaptor
Has a built-in memory for parameter cloning and an input for 24 V back-up.

AI-485-Adaptor

AI-485 Adaptor
Adaptor that allows the drive to communicate via RS485.

AI-485-Adaptor

AI-485 24 V Adaptor
Adaptor with 24 V input.

RS485 USB Communication Cable

RS485 Cable
The USB comms cable allows the drive to connect to a PC for use with Commander's PC tools.
