Application

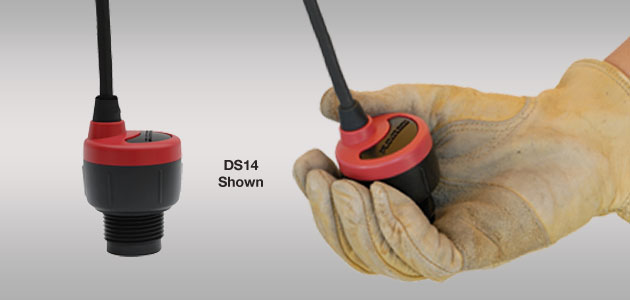

The general purpose ultrasonic level switch provides continuous level detection up to 49.2" (1.25m) with 4 programmable relays for level switch or level control functions, and is configured via our free WebCal software. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is broadly selected for small day tank, skid, IBC, sump and process tank level applications.

Features

Switch and control functions with continuous level measurement output up to 49.2" (1.25m)

Configuration is fast and easy via WebCal software and USB adapter

Narrow 2" beam width and short 2" dead band optimized for small tanks

Four (4) programmable relays rated @ 1A / 60VA for switch, pump or valve control and fail-safety
        • 1 pump or valve with 3 alarms
        • 2 pumps (lead-lag) with 2 alarms
        • 2 pumps (duplexing) with 2 alarms
        • 4 independent switch point alarms

PVDF transducer and 6P polycarbonate enclosure for corrosive liquids

Automatic temperature compensation for accurate measurement
