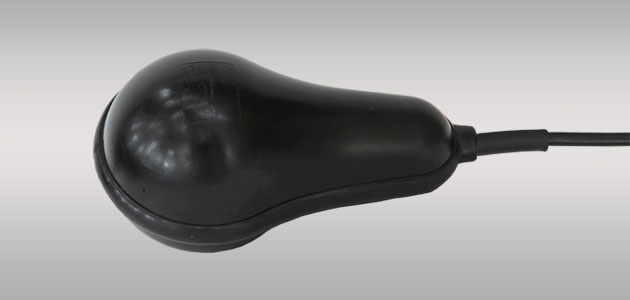

Switch-Tek™ LV42 Sump Float Level Switch

Application

The general purpose sump float level switch provides reliable liquid level detection and is designed for the automation of pumps, filling or emptying of tanks, wells and reservoirs. The switch body is free of any irregularities and consists of a double airtight chamber with a high-pressure melted polypropylene seal for use in wastewater applications.

Features

Mercury-free counter-weighted double chambered float

Submersible PP body and PVC cable for corrosive liquids

Dry contact selectable NO or NC state via wiring selection

Compatible with counter weight and cable hanger installations

Specifications

Orientation:	Vertical
Service:	Compatible liquids
Contact type:	(1) SPDT relay
Contact rating:	10 (3) A @ 250 VAC
Process temp.:	F: -4° to 176°, C: -20° to 80°
Pressure::	29 psi (2 bar)
Sensor rating:	IP68
Sensor material:	Polypropylene
Cable jack. mat.:	PVC
Weight housing:	2.4 lb (1.1 kg)
Weight cable:	0.77 lb (21.27g) per foot
Classification:	General purpose
Compliance:	CE
