Application 110

Tube Expansion Measurement

Application Summary

Utilizing a Load Button, engineers can measure the expansion of a tube as fluid moves through it.

Products in Use

LLB Series Miniature Load Button paired with Instrumentation (USB Solutions, IAA Series, IHH500, and IPM650).

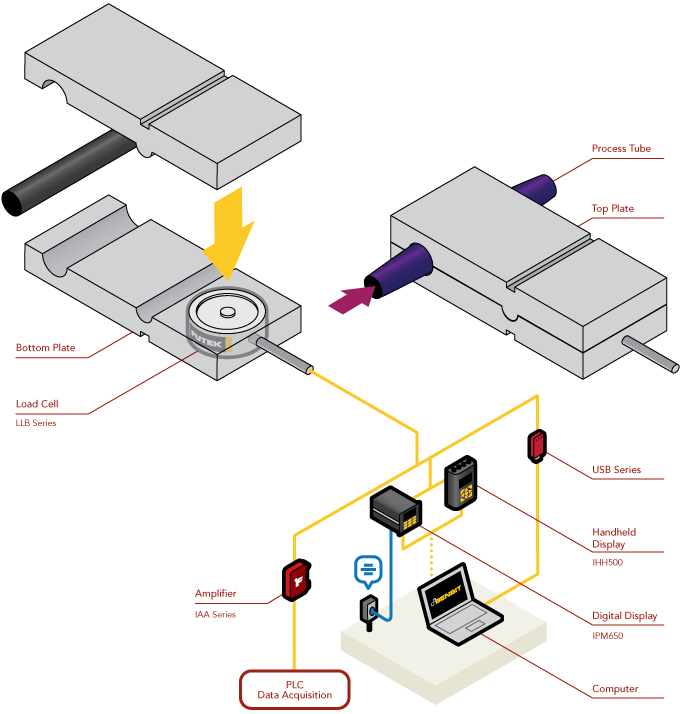

Load Cell - Tube Expansion Measurement
How it Works
  1. FUTEK's LLB Series Miniature Load Button is installed between two plates. Also located between these plates is a process tube.
  2. As fluid flows through the process tube, its diameter expands. The unique design of this plate (pivot points), allows for this expansion to occur.
  3. As the tube expands, the top plate begins to apply force measurements onto the load button.
  4. This applied force is then streamed to one of several instrument options - a digital display, an amplifier, or a USB module.
  5. Both the digital displays as well as the USB module can utilize FUTEK's SENSIT™ Test and Measurement Software to graph and collect the data.
Load Cell - LLB Series - Miniature Load Buttons
LLB SERIES
Miniature Load Buttons
Load Cell - IAA Series - Analog Amplifier
IAA SERIES
Analog Amplifier
Load Cell - USB SOLUTIONS - High Resolution USB Output Module
USB SOLUTIONS
High Resolution USB Output Module
Load Cell - IHH500 - Intelligent Digital Hand Held Display
IHH500
Intelligent Digital Hand Held Display
Load Cell - IPM650 - Panel Mount Display
IPM650
Panel Mount Display
Load Cell - SOFTWARE - SENSIT™ Test and Measurement
SOFTWARE
SENSIT™ Test and Measurement
