Description

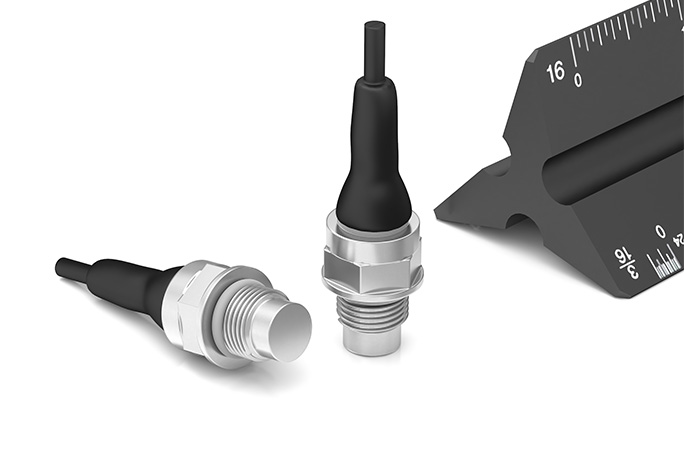

The PFT510 Miniature Pressure Sensor (Miniature Flush Mount Diaphragm) is FUTEK’s general Miniature Pressure Sensor solution for a variety of pressure measurement applications depending on the specifications required. Utilizing metal foil strain gauge technology, the PFT510 Pressure Transducer is made from 17-4 Stainless Steel, weighs 25 grams, and it has mV/V output range as a standard. This product line is manufactured in USA.

Features
  • Miniature size pressure sensor
  • High-speed dynamic response for fast pressure measurement applications
  • Flush mount
  • Unamplified output mV/V range
  • Supported by all FUTEK instruments and electronics

Specifications
  CHANNEL MIN TYP MAX UNIT
Calibration Excitation
1

5

Vdc
Excitation
1
1
5
10
Vdc
Input Resistance
1

350

Ohms nom.
Insulation Resistance
1
1000


Mohms @ 50 Vdc
Safe Overload
1


150
% of R.O.
Capacity
1


225
PSI
Hysteresis
1
-0.5

0.5
% of R.O.
Nonlinearity
1
-0.5

0.5
% of R.O.
Nonrepeatability
1
-0.02

0.02
% of R.O.
Output Resistance
1

350

Ohms nom.
Rated Output
1

1.5

mV/V nom.
Compensated Temperature
1
32

140
F
Operating Temperature
1
-40

194
F
Temperature Shift Span
1
-0.02

0.02
% of Load/F
Temperature Shift Zero
1
-0.02

0.02
% of R.O./F
Zero Balance
1
-3

3
% of R.O.
