CDIT-2 Stainless Steel Low Profile Compression Load Cell

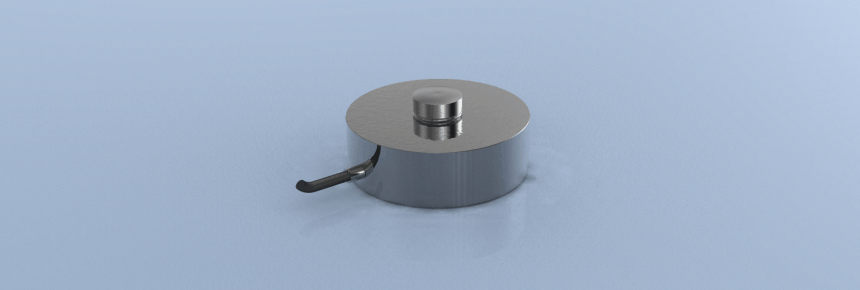

CDIT-2 - Load Cell

Features |  Specification | Dimensions |  Downloads | Suggested | Instrumentation | Options  | Applications

  • Ranges 250kg to 100te
  • Stainless Steel, fully welded construction
  • High Stability
  • Low Height
  • Environmentally Sealed to IP68
  • The CDIT-2 series of Load Cells have been designed for a wide range of force measurement and weighing applications where space is limited.

    The CDIT-2 is constructed from stainless steel and has a fully welded construction, offering a high level of corrosion resistance for use in harsh environments.

    This range of load cells is available with ranges covering 0-250kg to 0-100te.

    There are many applications suited to the CDIT-2, including restricted height weighing applications, general force measurements and press calibration.

    LCM Systems can provide the CDIT-2 on its own or combined with any of our instrumentation range, to offer a more complete package. Please consult our technical department for any advice required on suitable instrumentation solutions.LCM Systems can provide the CDIT-1 on its own or combined with any of our instrumentation range, to offer a more complete package. Please consult our technical department for any advice required on suitable instrumentation solutions.

  Back to the Top

 Rated Load (FSO)

 250, 500, 1000, 2500, 5000, 7500 kg

 10, 15, 20, 30, 50, 75, 100 te
 Overload Range  150% FS)
 Ultimate Breaking Load  > 300% FSO
 Output  2mV/V (±0.1%)
 Zero Balance  <±1% FSO
 Non-Linearity  ≤±0.03% FSO
 Non-Repeatability  ≤±0.01% FSO
 Maximum Transverse Load  50% FSO
 Transverse Load Effect (at 10% FSO)  <±0.03% FSO
 Excitation Voltage  10vdc recommended (18vdc maximum)
 Input Resistance  700Ω ±3Ω
 Output Resistance  7000Ω ±3Ω
 Insulation Resistance  >5GΩ @ 50vdc
 Compensated Temperature Range  -10 to +40 °C
 Operating Temperature Range  -20 to +70 °C
 Storage Temperature Range  -20 to +80 °C
 Zero Temperature Coefficient  ≤±0.005% FSO/°C
 Span Temperature Coefficient  ≤±0.003% FSO/°C
 Environmental Protection Level  IP68
 Electrical Connection  Glanded PVC cable - 5 metres long
 Weight (load cell only)  250kg to 10te                  1.2kg
 15te                                   2kg
 20te to 30te                     3.8kg
 50te to 100te                   9.4kg

 Back to the Top
 cdit-2 drawing

 Back to the Top

 Click here to download - CDIT-2 Datasheet
