SP5000X Series Features

Sunlight Readable

High brightness liquid crystal panel

Equipped with a high brightness liquid panel (1000 cd/m2 (Typ)*)



Anti-glare

Improved visibility in sunlight by decreasing glare.



High-transmittance design

Improve transmissivity by eliminating the plastic cover on the liquid crystal display and replacing it with a glass touchscreen.



Robustness

UV Protection

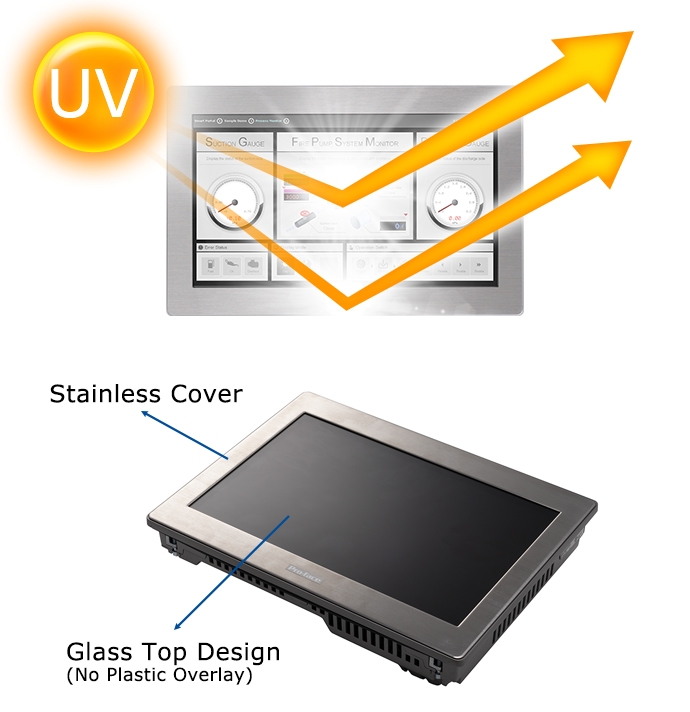

Improve UV protection by replacing plastic components that are exposed to sunlight with metal or glass.
The liquid crystal display and touch panel components cut UV rays by 99% (380nm).
Reduced ultraviolet deterioration of the bezel, liquid crystal components, and touch panel.


Full Coating

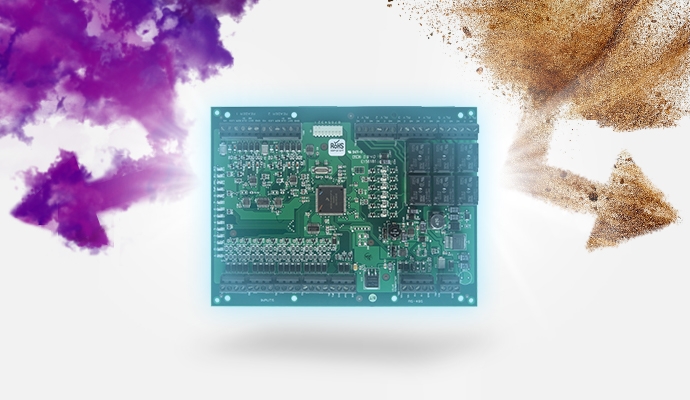

Improve the longevity of the product even when used in outdoor environments with dust and extreme temperatures by adding coating on the circuit boards, LCD, and power source components.


Environment Resistance

Sufficient against Vibration/Shock

We do apply IEC60068-2-6 or IEC60068-2-27 in stead of IEC61131-2 test which is typically used for factory automation devices. Because they are more suitable for earth moving machines, or generators or compressors which use engines to operate machines

* Display Module: 7” Wide and 12” Wide: 2G / 40G, 15” Wide: 1G / 15G
  Box Module: follow a connected display module.


Operating Temperature: -22℉ to 158℉ (-30℃ to 70℃)

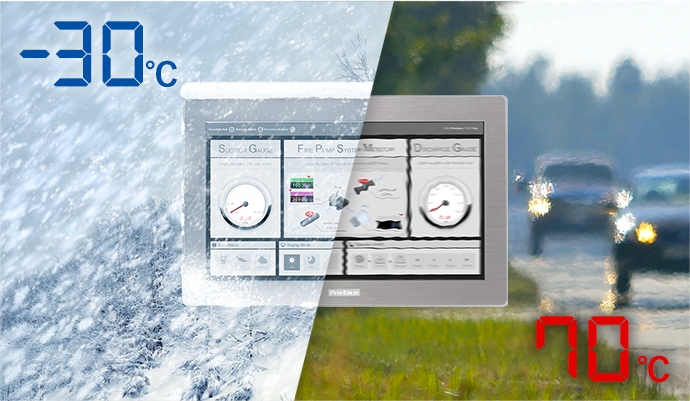

Expanded the range of the Ambient Operating Temperature to -22℉ to 158℉ (-30℃ to 70℃).  *1
Can be used in outodoor environments without the need for anti-frost heaters or fans and cooling systems.


*17" Wide: -22℉ to 149℉ (-30℃ to 65℃), 12" Wide: -22℉ to 158℉ (-30℃ to 70℃), 15" Wide: -4℉ to 140℉ (-20℃ to 60℃)



Dust and waterproof

Compatible with IP66F, IP67F, Type 4X (indoor and outdoor use) allowing for use in harsh outdoor conditions.

sp5000x_06_Environment-resistance


Compatible with DC12V

Compatibility with DC12 to 24V (10.8-28.8V) allows for special-purpose vehicles, engines, and generators suitable for voltage drops and specific applications.


Explosion-proof

Meets various standards such as being explosion-proof.

Explosion-proof:
- Haz. Loc Class1, Div2
- ATEX/IECEx Zone 2/22


Harsh environment model

Harsh Environment models are designed to use HMI in a highly corrosive environment.Support Corrosive gases: Class 3C3 under IEC/EN 60721-3-3 standard

Maintainability

Modular structure that is easy to maintain

The display and box can be separated allowing for the exposed display to be replaced.
The box is designed with the application installed and can be used as is, enabling work to be done quickly and easily by exchanging components (a PC is not necessary for the transfer).


Exchangeable system card

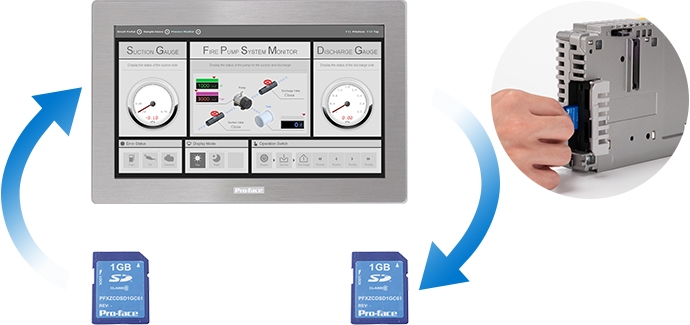

When exchanging the box, the SD card containing the application can be removed and inserted into a new box allowing for quick and easy transfers (a PC is not necessary for the transfer).


Battery-less

There is no battery which eliminates the need for replacement.


IoT Solution

Data collection and remote maintenance

Collect data such as error history and operation status, outcome, and history.
Furthermore, collect data remotely from a PC.
It is also possible to access the HMI, verify the operation status, and conduct maintenance remotely via PC or tablet.

Data linkage with SQL Server or EXCEL action by "Pro-Server EX"
     Import history data by FTP
Monitoring HMI devices remotely with PC, tablet, smartphone by "Pro-face Remote HMI"
VPN connection to HMI devices through the internet by "Pro-face Connect"


Easy Screen Creation

Anyone can design beautiful, realistic screens

GP-Pro EX has an extensive variety of functions for designing beautiful, realistic screens.
Naturally, a wide range of free sample screens are also available. Pro-face's beautifully designed samples are produced with user-friendliness in mind and are sure to gain a solid reputation amongst worksite operators.


User Original Start Screen

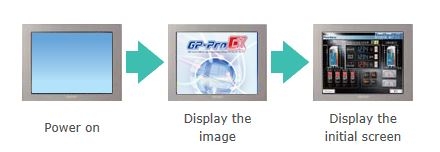

For Power Box, display a registered start screen (image) from when the power is turned on until when the initial base screen is displayed.


Realistic 3D parts that look just like the real thing

Add three-dimensional graphical real parts and easily create easy-to-read screens with high added value.



Meters

Production equipment measurements and temperatures are intuitively displayed.

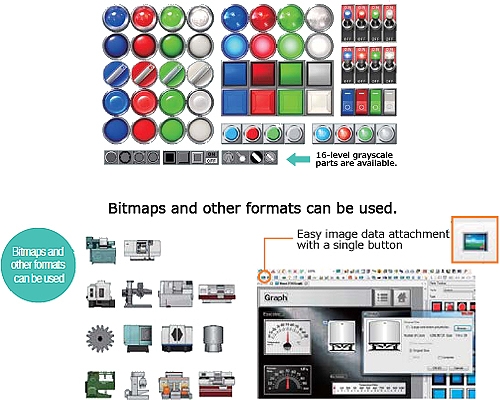

Switches/Lamps

Can be visually checked like real switches and lamps. It increases the added value of your screens.

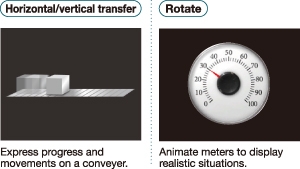

Add movement with animation feature to make parts even more realistic

GP-Pro EX has an animation feature that draws graphics and lets you move, rotate, or change the color of images. This makes it possible to quickly design screens with rich expression that move and change.


Display numerical data in style with bitmap fonts

GP-Pro EX has a range of beautiful, easy-to-read 7-segment fonts for data display parts. A variety of other fonts are also available.


Use image fonts to expand design possibilities with Windows fonts

GP-Pro EX lets you create stylish screens using Windows fonts. Multiple languages are supported and fonts can be applied to data displays, text tables, alarms and a variety of other functions.
